Product Details

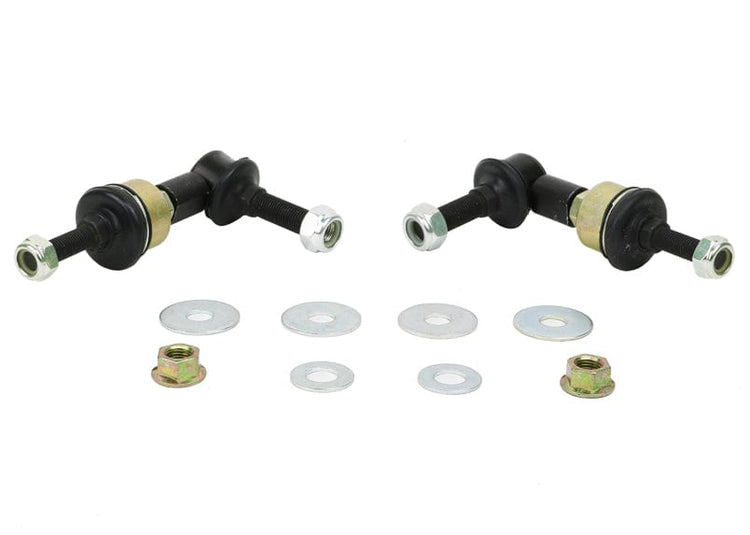

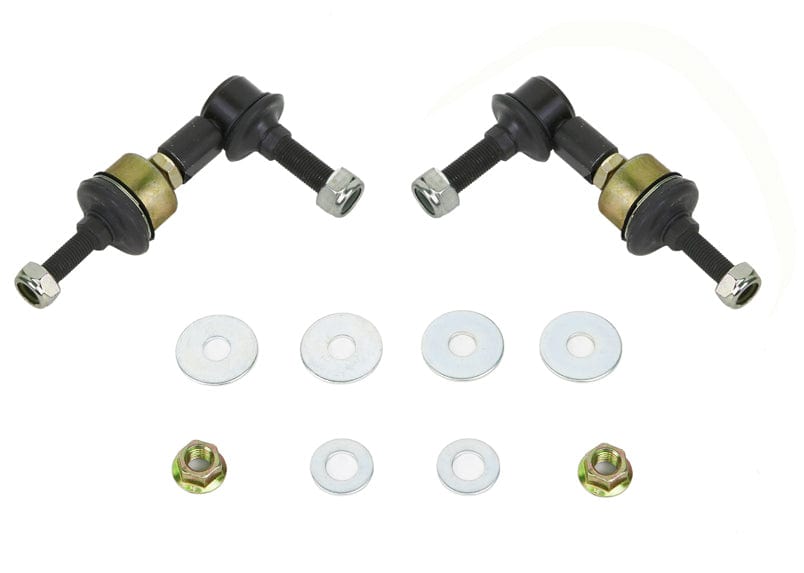

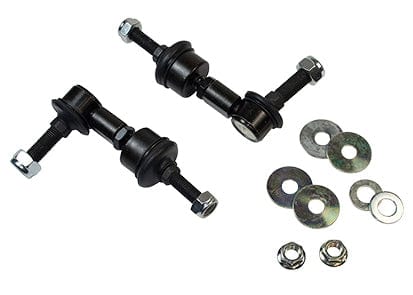

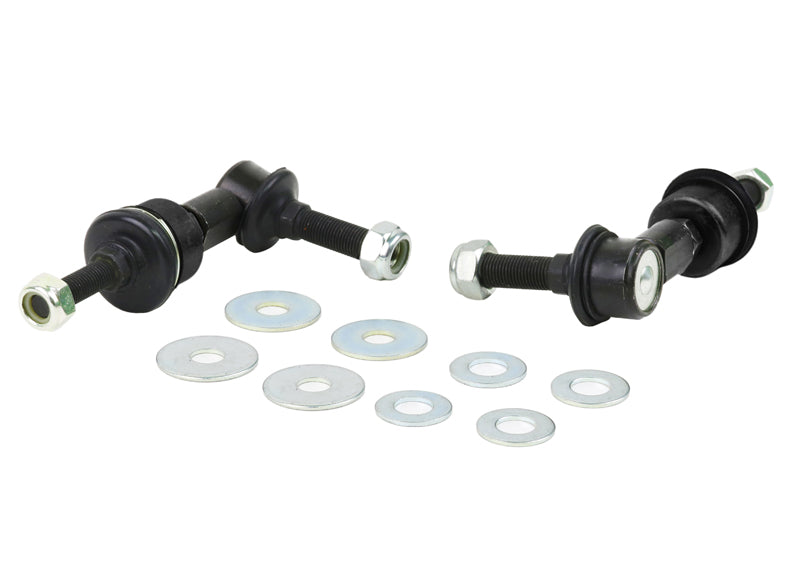

This Whiteline Adjustable Rear Sway Bar Link fits the 2010-2013 Mazda 3 i, S (BL). The part number is KLC185. Application note: Adjustable Extra Heavy Duty. The kit contains 2 links, 6 washers, and 2 nuts. This part is for the rear of the vehicle.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect a moderate job of about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the Mazda 3: Adjustable Rear Upper Control Arm Set, Adjustable Front Sway Bar Link, and Front Control Arm Lower Inner Front Bushing.

Features

  • Install guide: An install guide comes in the box.
  • Material: Made from steel.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Hardware: The kit includes locking nuts and washers.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
Part Number KLC185
Part Name Sway Bar Link
Vehicle 2010-2013 Mazda 3 i, S
Chassis Code BL
Adjustable Yes
Bolt Thread Diameter 10 / 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 6 Washers, 2 Nuts
Length 65-75 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2010MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2011MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2012MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2013MazdaMazda 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
