Product Details

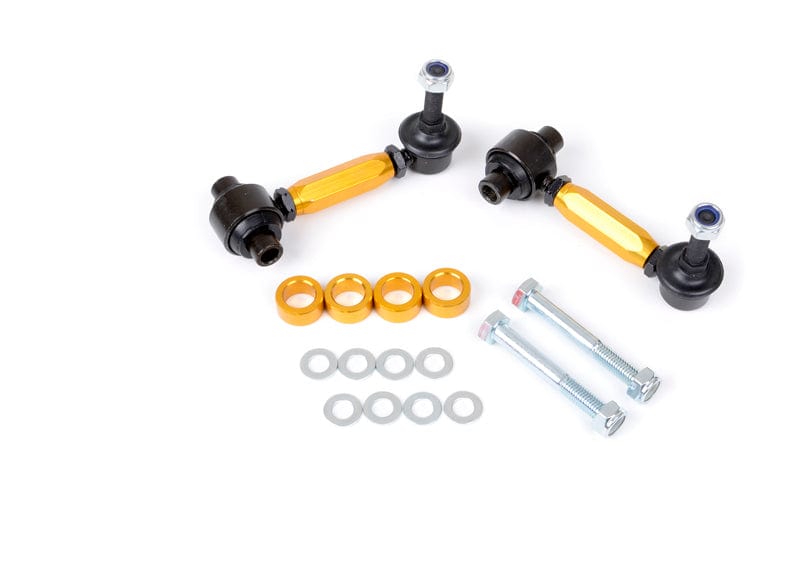

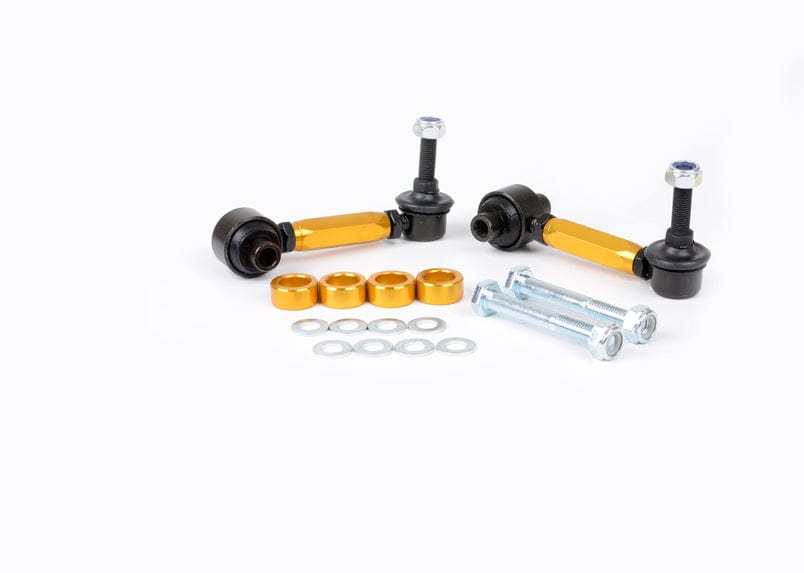

This Whiteline Adjustable Rear Sway Bar Link fits the 2009 Subaru Forester XT (SH). Whiteline's note for this fit: Adjustable Extra Heavy Duty. Position: rear. Part number KLC200. You receive 2 links, 4 spacers, 2 bolts, 8 washers, and 2 nuts.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect a moderate job of about 1 hour. A wheel alignment is not required. We also list 14mm Adjustable Front Camber Bolts, Adjustable Sway Bar Vehicle Link Kit, and Rear Subframe Mount Bushing for the Forester.

Features

  • Construction: The body is made from high-grade alloy for strength without added weight.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Finish: The metal parts are powder coated for durability.
  • Rigid design: Taking the flex out of the connection makes the car react faster to steering input.
  • Hardware: Hardware supplied: locking nuts and washers.
Specifications
Part Number KLC200
Part Name Sway Bar Link
Vehicle 2009 Subaru Forester XT
Chassis Code SH
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 8 Washers, 2 Nuts
Length 110-135 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
