Product Details

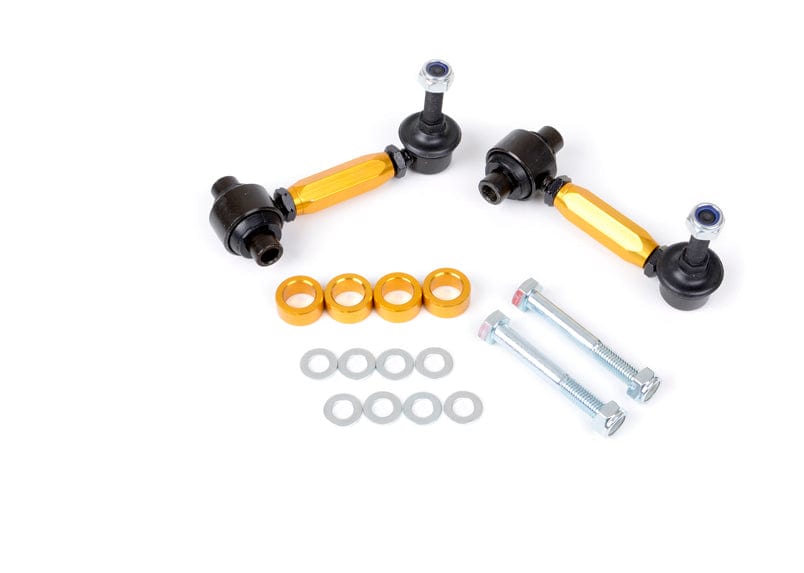

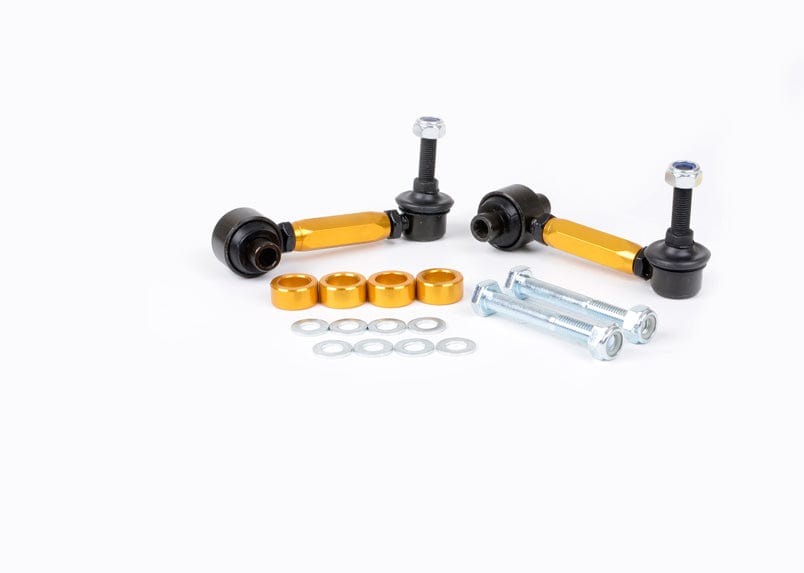

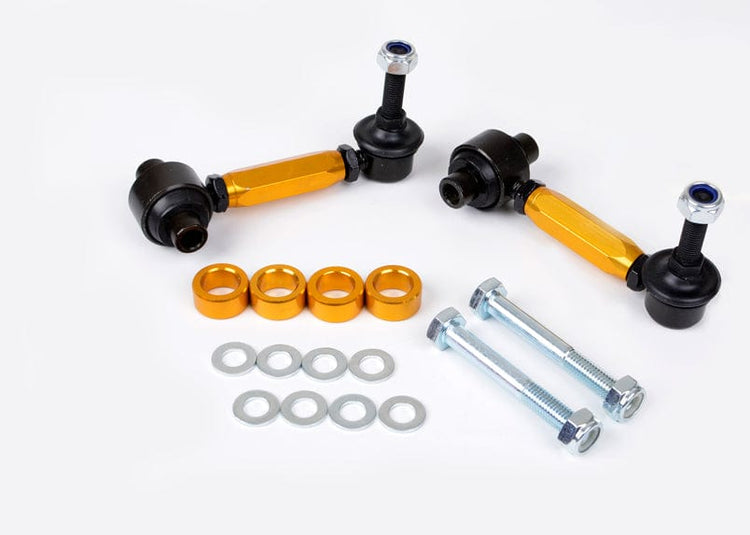

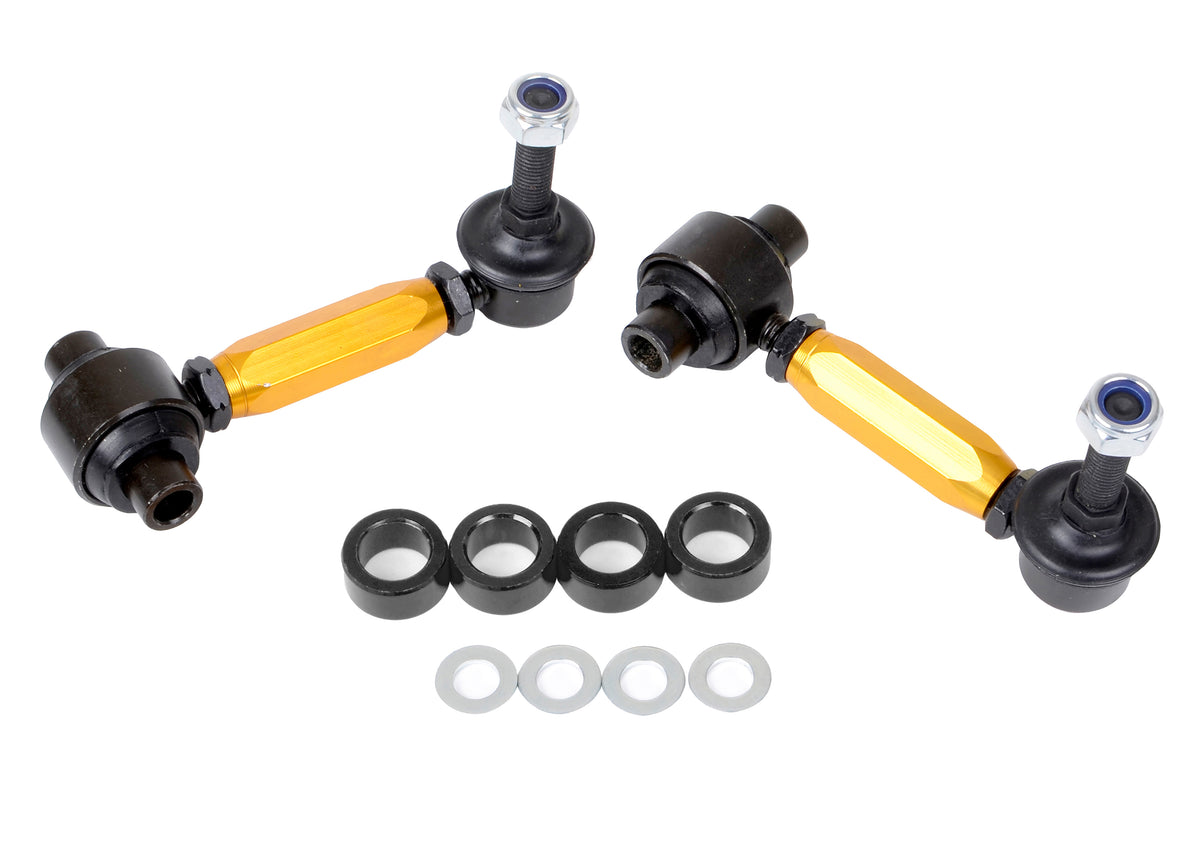

This Whiteline Adjustable Rear Sway Bar Link fits the 2009-2013 Subaru Forester X Limited, X Premium (SH). You receive 2 links, 4 spacers, 2 bolts, 8 washers, and 2 nuts. It goes on the rear of the vehicle. Part number KLC200. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this rear link is built to keep that connection firm. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Expect a moderate job of about 1 hour. It does not require a wheel alignment. To go with it on the Forester, see 14mm Adjustable Front Camber Bolts, Adjustable Sway Bar Vehicle Link Kit, and Rear Subframe Mount Bushing.

Features

  • Pre-greased: Pre-greased at the factory so it can be fitted right away.
  • Install guide: Whiteline packs an install guide with it.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Hardware: Also in the box: locking nuts and washers.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
Specifications
Part Number KLC200
Part Name Sway Bar Link
Vehicle 2009-2013 Subaru Forester X Limited, X Premium
Chassis Code SH
Adjustable Yes
Bolt Thread Diameter 10 mm
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 4 Spacers, 2 Bolts, 8 Washers, 2 Nuts
Length 110-135 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2010SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2011SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2012SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
2013SubaruForesterAWDAdjustable Extra Heavy Duty. Length 110-135mm. Bolt Diameter 10mm.
