Product Details

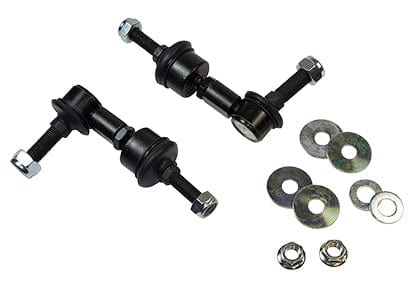

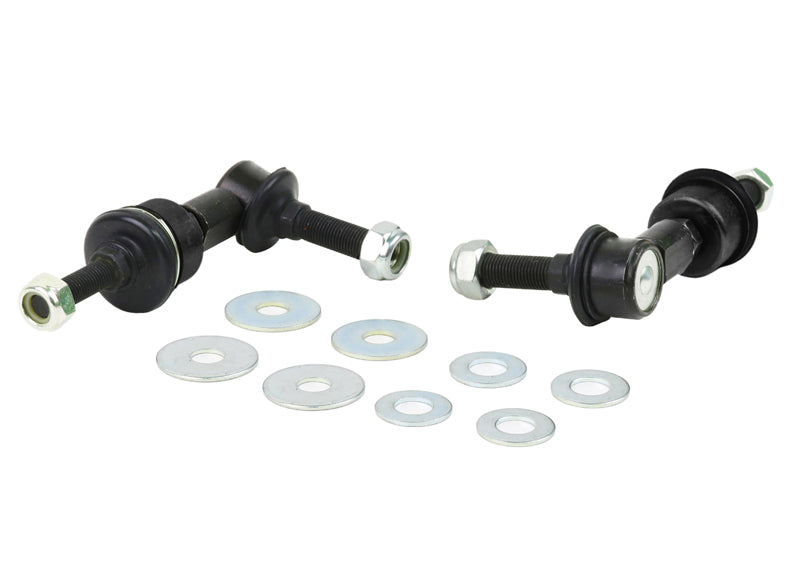

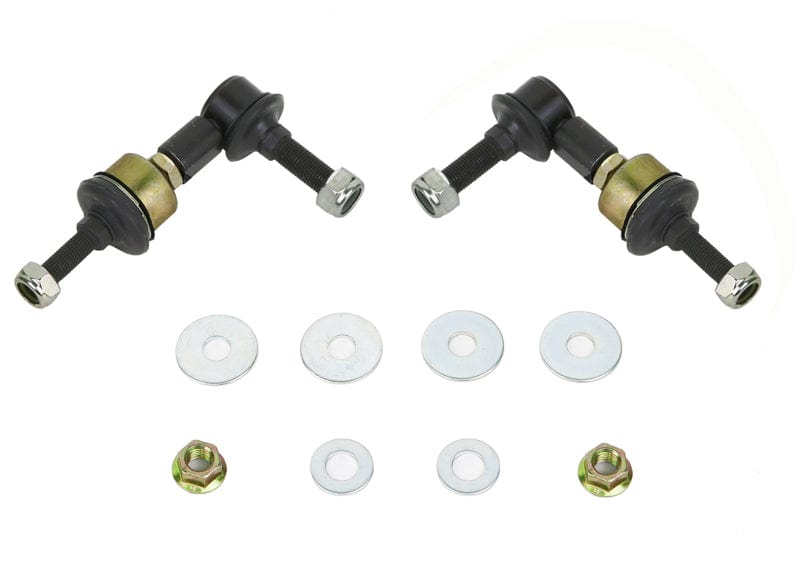

This Whiteline Adjustable Rear Sway Bar Link fits the 2007-2013 Mazda Mazdaspeed 3 Base (BL). Application note: Adjustable Extra Heavy Duty. Part number KLC185. Placement: rear. Included: 2 links, 6 washers, and 2 nuts.

The rear sway bar can only do its job if its ends are tied firmly to the wheels, and the links make that connection. A loose or flexible link lets the body lean before the bar starts to push back, which is why worn links show up as a knock over bumps or a delayed feel at turn-in. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. To go with it on the Mazdaspeed 3, see Front Strut Tower Brace, Front Strut Tower Brace Quick Release Kit, and Front Engine Mount Rear Bushing.

Features

  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Hardware: Supplied with locking nuts and washers.
  • Install guide: An install guide comes in the box.
  • Ball joints: Steel ball joint ends are built for heavy loads and free movement.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Pre-greased: Comes pre-greased, so it can go straight on the car.
Specifications
Part Number KLC185
Part Name Sway Bar Link
Vehicle 2007-2013 Mazda Mazdaspeed 3 Base
Drivetrain FWD
Chassis Code BL
Adjustable Yes
Bolt Thread Diameter 10 / 12 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links, 6 Washers, 2 Nuts
Length 65-75 mm
Locking Nuts Included Yes
Material Steel
Pre-Greased Yes
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2008MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2009MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2010MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2011MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2012MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
2013MazdaMazdaspeed 3FWDAdjustable Extra Heavy Duty. Length 65-75mm. Bolt Diameter 12mm.
