Product Details

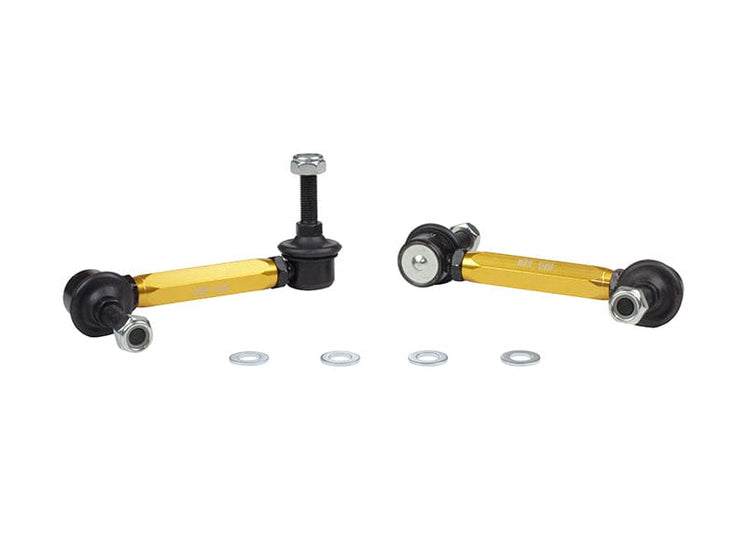

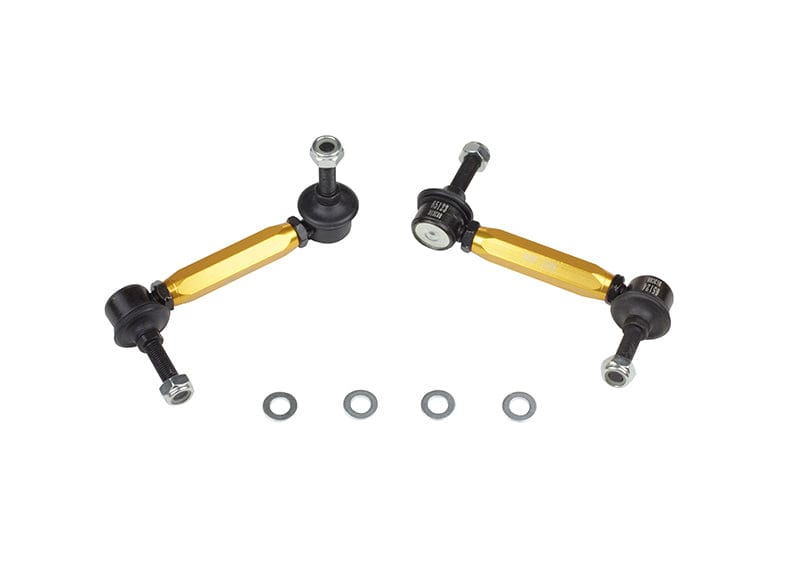

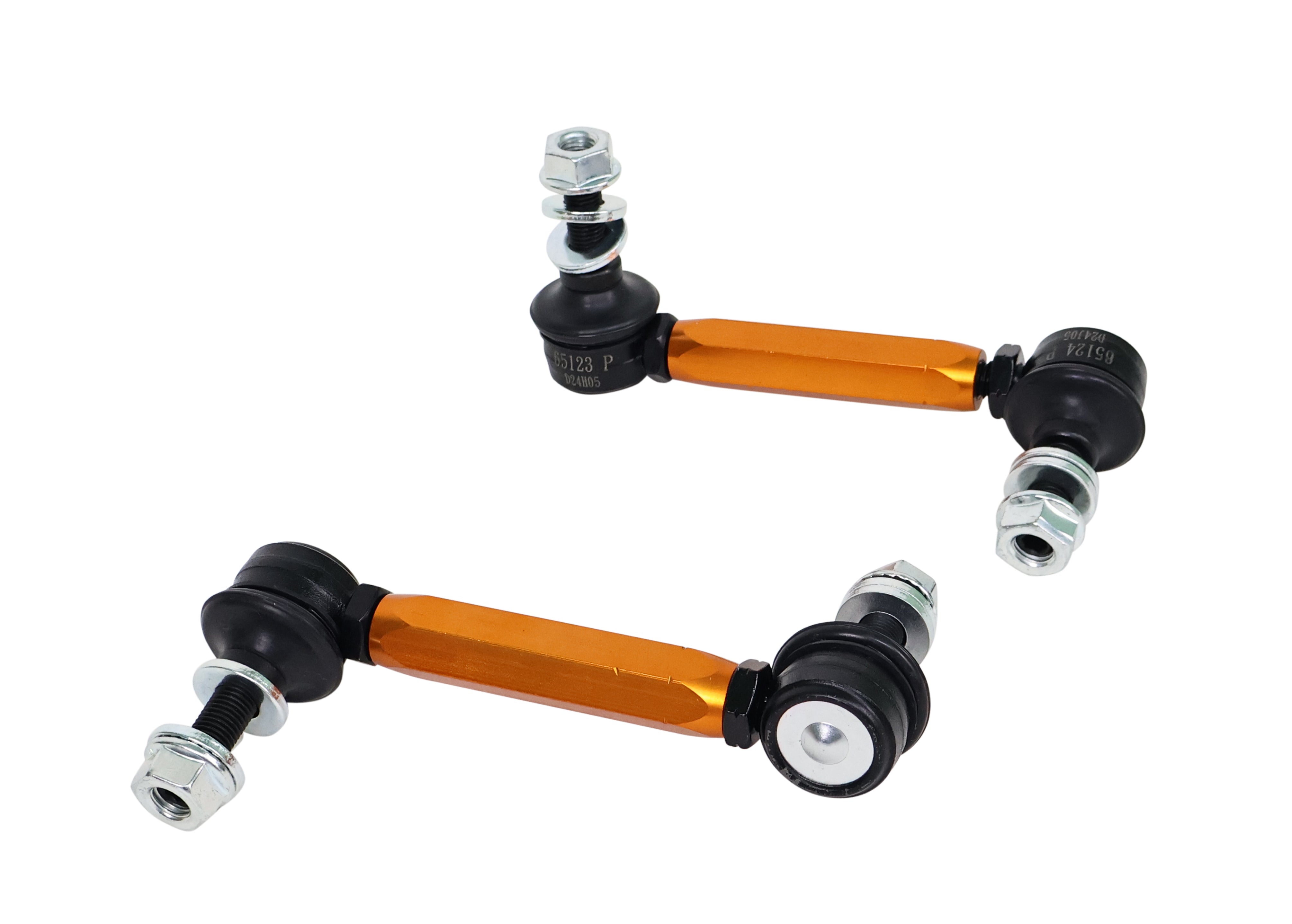

This Whiteline Adjustable Rear Sway Bar Link fits the 2000-2001 Honda CR-V SE (RD1). Placement: rear. You receive 2 links. Order it as part number KLC174. Whiteline's note for this fit: Adjustable Extra Heavy Duty. Chassis code: RD1.

A sway bar link is the short rod that ties each end of the rear sway bar to the suspension. Whenever the body leans, the link carries that motion into the bar, so any slop, flex, or wear in it is slop in the whole roll-control system. Its adjustable body lets you set the length with the car on the ground, so the bar is not twisted against its own mounts before the car even moves.

Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. We also list Adjustable Rear Upper Control Arm Set, Front Sway Bar Washer Kit, and Rear Control Arm Lower Rear Inner Bushing for the CR-V.

Features

  • Preload-free setup: The link can be set to length on the vehicle to remove bar preload.
  • Anodized alloy: Anodized alloy parts resist corrosion and wear and look good doing it.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Construction: High-strength alloy gives the strength needed without much weight.
  • Ball joints: Heavy duty steel ball joint ends pivot freely through a wide range, which helps fitment.
  • Install guide: Instructions for fitting are packed in the box.
Specifications
Part Number KLC174
Part Name Sway Bar Link
Vehicle 2000-2001 Honda CR-V SE
Drivetrain FWD/AWD
Chassis Code RD1
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 130-155 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2000HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2000HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2001HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2001HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
