Product Details

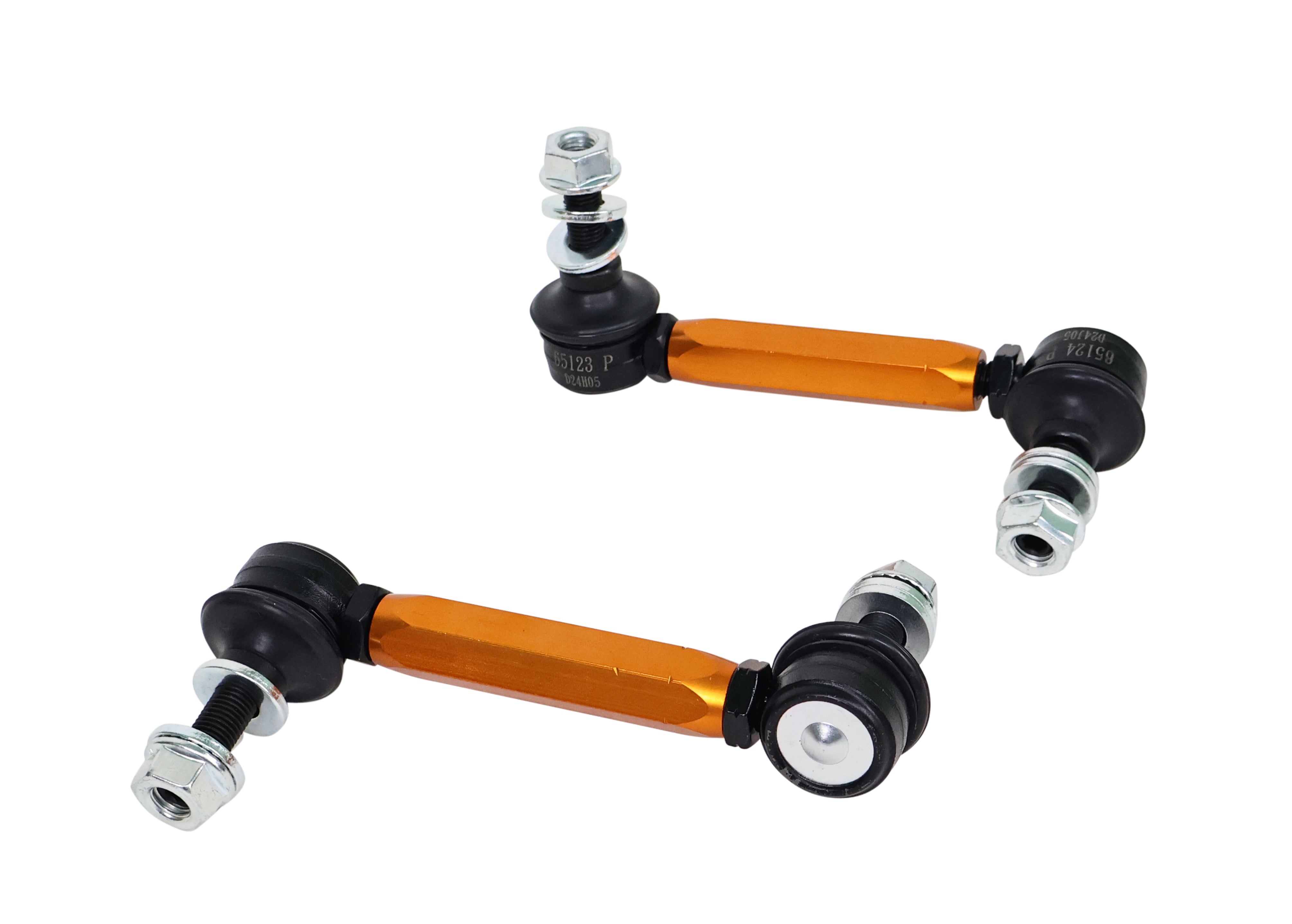

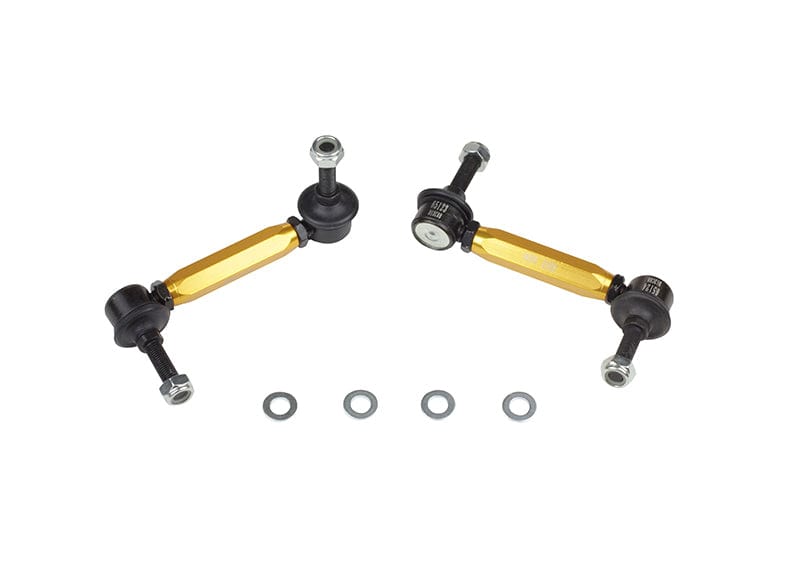

This Whiteline Adjustable Rear Sway Bar Link fits the 1997-2001 Honda CR-V LX (RD1). Included: 2 links. Whiteline part number: KLC174. It goes on the rear of the vehicle. Whiteline's note for this fit: Adjustable Extra Heavy Duty.

Links are small parts with a large effect on how a car leans in a corner. They sit between the bar and the suspension and decide how quickly and how evenly the bar's resistance reaches the tire, and this rear link is built to keep that connection firm. A body that adjusts in length means the link can be matched to the car instead of the other way around, and the bar starts from a neutral position.

Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the CR-V: Adjustable Rear Upper Control Arm Set, Front Sway Bar Washer Kit, and Rear Control Arm Lower Rear Inner Bushing.

Features

  • Hardware: The kit includes locking nuts and washers.
  • Preload-free setup: The length can be set on the car to remove preload from the sway bar.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Construction: Made from strong, light alloy.
  • Ball joints: Heavy duty steel ball joints at the ends move through a wide arc to suit the application.
  • Anodized alloy: An anodized coating protects the alloy from corrosion and wear.
Specifications
Part Number KLC174
Part Name Sway Bar Link
Vehicle 1997-2001 Honda CR-V LX
Drivetrain FWD/AWD
Chassis Code RD1
Adjustable Yes
Bolt Thread Diameter 10 mm
Grade Type Performance
Grease Fitting Included No
Greaseable No
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 2 Links
Length 130-155 mm
Locking Nuts Included Yes
Material Aluminum Alloy
Pre-Greased No
Washers Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes Adjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1997HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
1997HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
1998HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
1998HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
1999HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
1999HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2000HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2000HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2001HondaCR-VFWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
2001HondaCR-VAWDAdjustable Extra Heavy Duty. Length 130-155mm. Bolt Diameter 10mm.
