Product Details

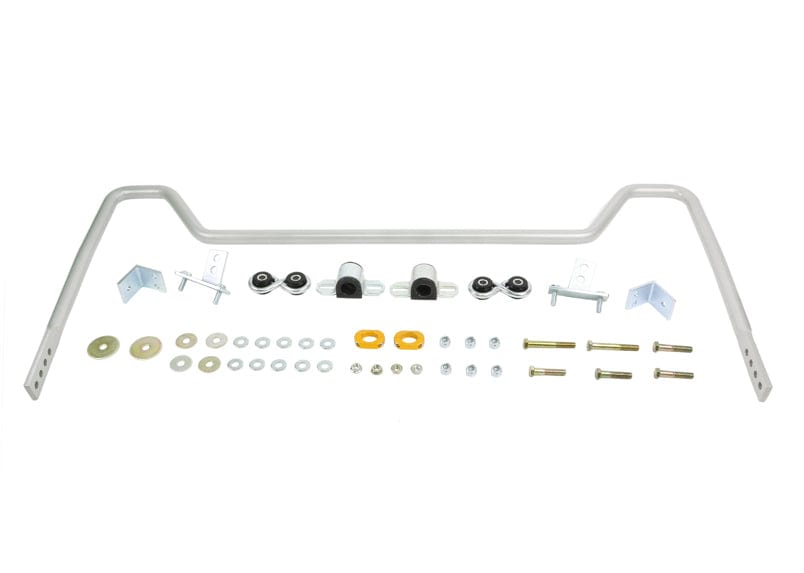

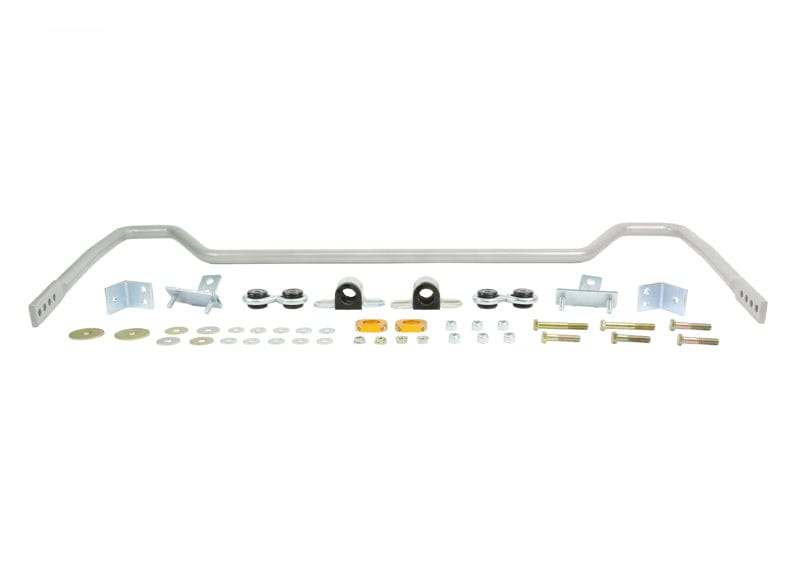

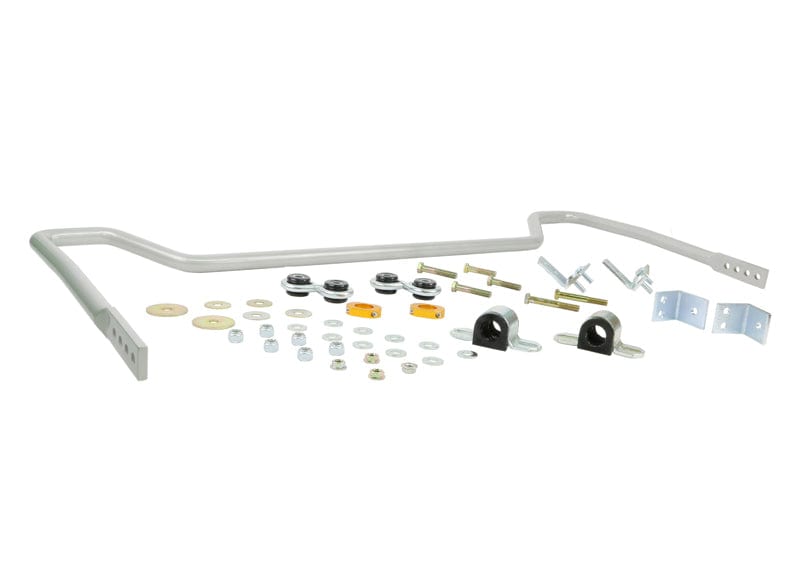

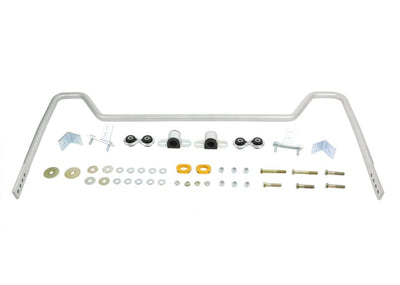

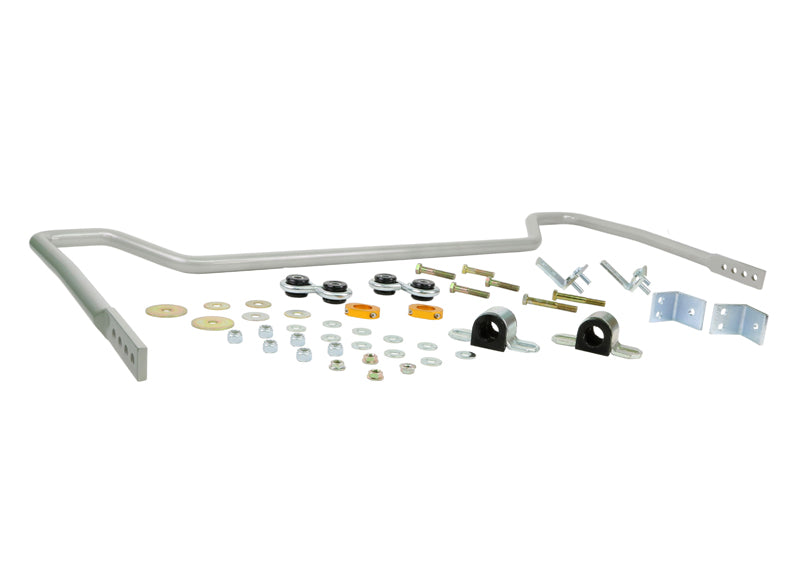

This Whiteline Heavy Duty Blade Adjustable 24mm Rear Sway Bar fits the 2008-2010 Chevrolet HHR SS (Delta). Application note: 4 Point Adjustable. Part number BHR75Z. This part is for the rear of the vehicle. You receive 1 sway bar, 2 links, 2 bushings, 2 saddles, 4 brackets, 2 lateral locks, 6 bolts, 16 washers, and 10 nuts.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. In general, a stiffer rear bar helps the tail rotate and reduces understeer. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Expect a moderate job of about 2 hours. No alignment is needed afterward. Other Whiteline parts we list for the Chevrolet HHR: Adjustable Front Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Lower Inner Rear Control Arm Bushing Kit.

Features

  • Roll control: Built to reduce body roll and sway in corners.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
  • Lateral locks: Built-in lateral locks hold the bar in position side to side.
  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Hardware: The kit includes mounting hardware and mounting brackets.
  • Forged ends: The bar ends are forged for strength at the link mounting point.
Specifications
Part Number BHR75Z
Part Name Sway Bar
Vehicle 2008-2010 Chevrolet HHR SS
Chassis Code Delta
Adjustable Yes
Bar Color Silver
Bar Diameter 24 mm
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Finish Powder Coated
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 4 Brackets, 2 Lateral Locks, 6 Bolts, 16 Washers, 10 Nuts
Material Solid Spring Steel
Mounting Brackets Included Yes
Mounting Hardware Included Yes
Suspension Grade Type Performance
Sway Bar Links Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes 4 Point Adjustable

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008ChevroletHHRFWD4 Point Adjustable
2009ChevroletHHRFWD4 Point Adjustable
2010ChevroletHHRFWD4 Point Adjustable
