Product Details

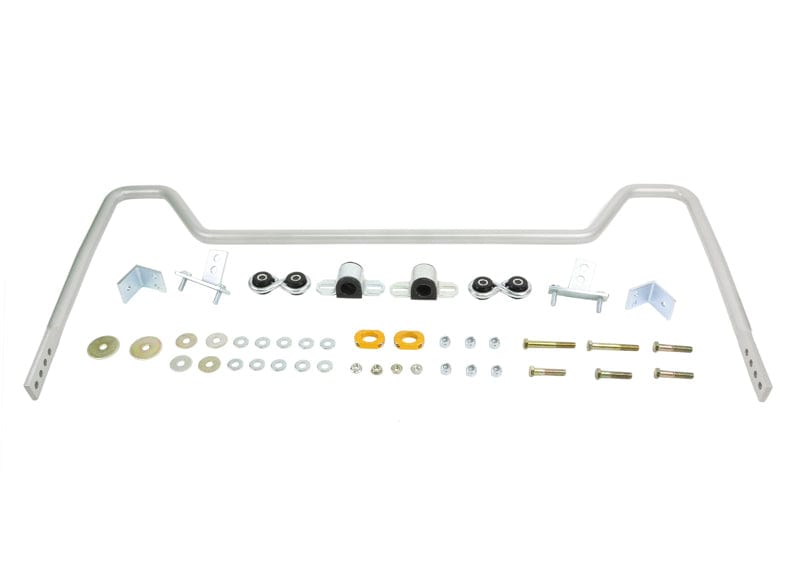

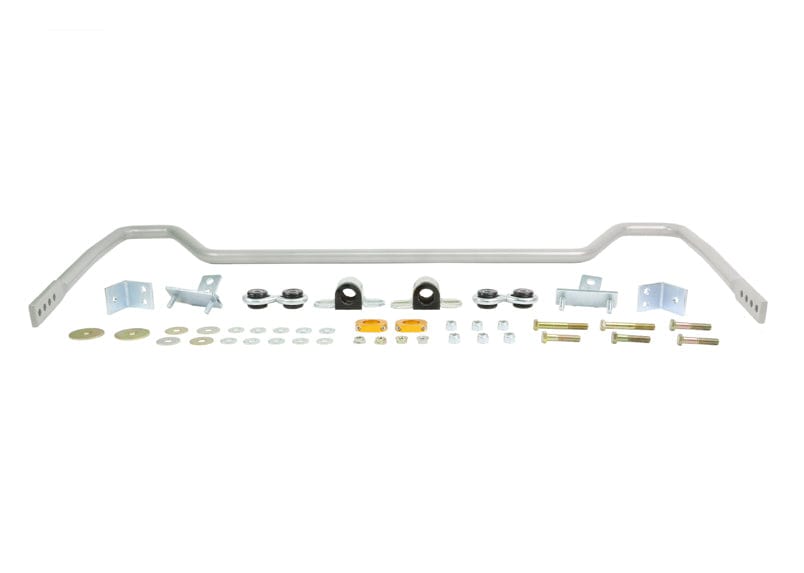

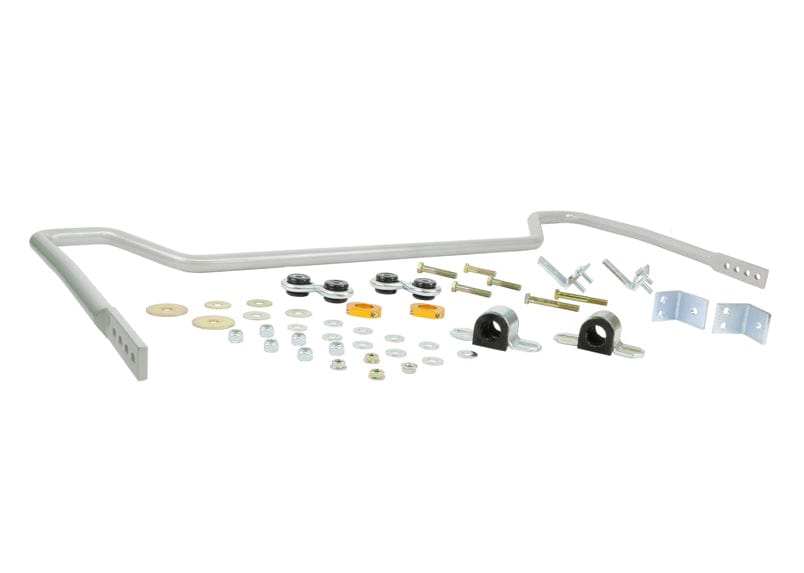

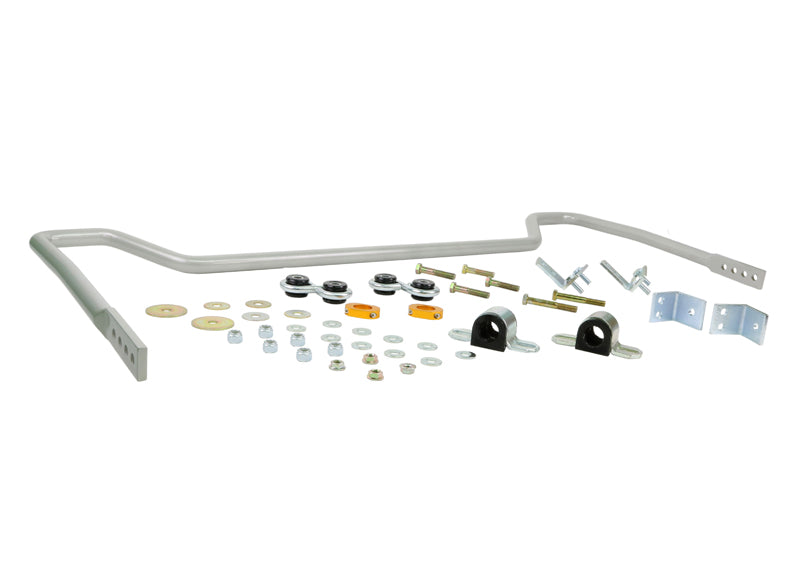

This Whiteline Heavy Duty Blade Adjustable 24mm Rear Sway Bar fits the 2007-2011 Chevrolet HHR LS Panel (Delta). Position: rear. Whiteline's note for this fit: 4 Point Adjustable. The part number is BHR75Z. You receive 1 sway bar, 2 links, 2 bushings, 2 saddles, 4 brackets, 2 lateral locks, 6 bolts, 16 washers, and 10 nuts.

A sway bar is a torsion spring that links the left and right wheels. When the body leans, the bar twists and resists, which keeps the car flatter and spreads load more evenly across the tires. In general, a stiffer rear bar helps the tail rotate and reduces understeer. Adjustable mounting points let you step the stiffness up or down without changing the bar.

Installation is rated moderate, with about 2 hours of work listed. A wheel alignment is not required. Other Whiteline parts we list for the Chevrolet HHR: Adjustable Front Sway Bar Link, 12mm Adjustable Front Camber Bolts, and Front Lower Inner Rear Control Arm Bushing Kit.

Features

  • Adjustable stiffness: The bar has more than one mounting position so stiffness can be tuned.
  • Rigid design: Less flex than the original parts means a quicker, more direct response, especially in lane changes and at initial turn-in.
  • Bar mounts: Mount bushings use an internally knurled bore and grease retention lips for lasting lubrication.
  • Install guide: Written install instructions are included with the part.
  • Roll control: Built to reduce body roll and sway in corners.
  • PTFE lined: A PTFE lining lowers friction so the bushing needs no lubrication.
Specifications
Part Number BHR75Z
Part Name Sway Bar
Vehicle 2007-2011 Chevrolet HHR LS Panel
Chassis Code Delta
Adjustable Yes
Bar Color Silver
Bar Diameter 24 mm
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Finish Powder Coated
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 4 Brackets, 2 Lateral Locks, 6 Bolts, 16 Washers, 10 Nuts
Material Solid Spring Steel
Mounting Brackets Included Yes
Mounting Hardware Included Yes
Suspension Grade Type Performance
Sway Bar Links Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes 4 Point Adjustable

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2007ChevroletHHRFWD4 Point Adjustable
2008ChevroletHHRFWD4 Point Adjustable
2009ChevroletHHRFWD4 Point Adjustable
2010ChevroletHHRFWD4 Point Adjustable
2011ChevroletHHRFWD4 Point Adjustable
