Product Details

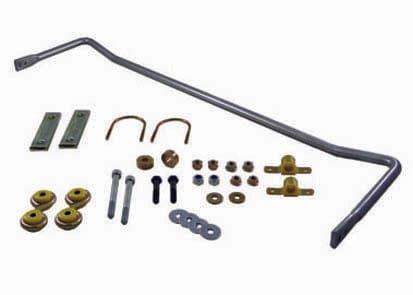

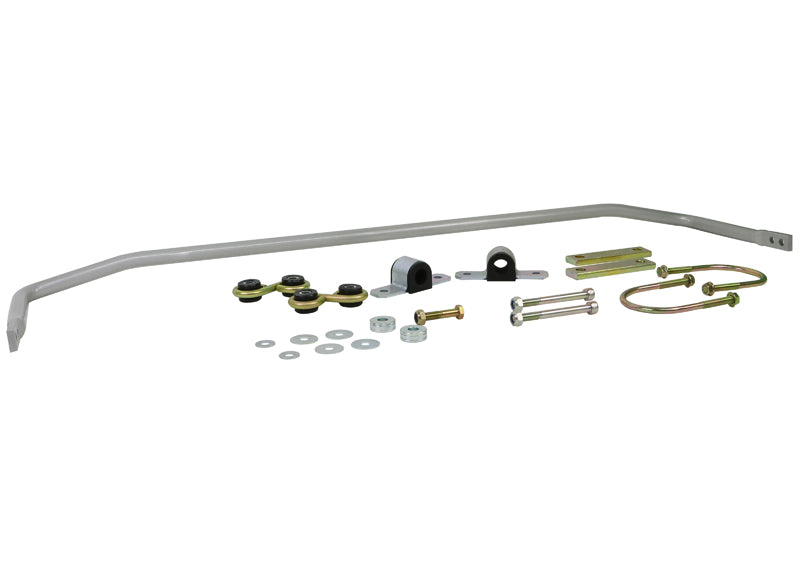

This Whiteline Heavy Duty Adjustable 22mm Rear Sway Bar fits the 2008-2011 Scion xD Base (NC). The kit contains 1 sway bar, 2 links, 2 bushings, 2 saddles, 2 plates, 2 spacers, 2 u-bolts, 4 bolts, 6 washers, and 8 nuts. It goes on the rear of the vehicle. Part number BTR86Z.

The rear sway bar has a large say in how a car balances. Stiffening it limits roll at the back and brings the tail around more readily, which many drivers use to lessen understeer and sharpen response. The bar is adjustable, so the stiffness can be changed to suit the car and the road.

Installation is rated moderate, with about 2 hours of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the Scion xD: 15mm Adjustable Front Camber Bolts.

Features

  • Rigid design: Built to remove the flex found in factory parts, so inputs reach the bar sooner.
  • Lateral locks: Lateral locks stop the bar sliding sideways under load.
  • Bar mounts: The mount bushings have a knurled bore and grease-holding lips.
  • Bushing compound: The synthetic elastomer used is low in compliance, so it flexes less.
  • Roll control: Designed to cut body roll and sway through corners.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number BTR86Z
Part Name Sway Bar
Vehicle 2008-2011 Scion xD Base
Chassis Code NC
Adjustable Yes
Bar Color Silver
Bar Diameter 22 mm
Bushing Color Black
Bushing Material Polyurethane
Bushings Included Yes
Finish Powder Coated
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 2
Kit Contents 1 Sway Bar, 2 Links, 2 Bushings, 2 Saddles, 2 Plates, 2 Spacers, 2 U-Bolts, 4 Bolts, 6 Washers, 8 Nuts
Material Solid Spring Steel
Mounting Brackets Included Yes
Mounting Hardware Included Yes
Suspension Grade Type Performance
Sway Bar Links Included Yes
Vehicle Placement Rear
Wheel Alignment Required No
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008ScionxDFWD
2009ScionxDFWD
2010ScionxDFWD
2011ScionxDFWD
