Product Details

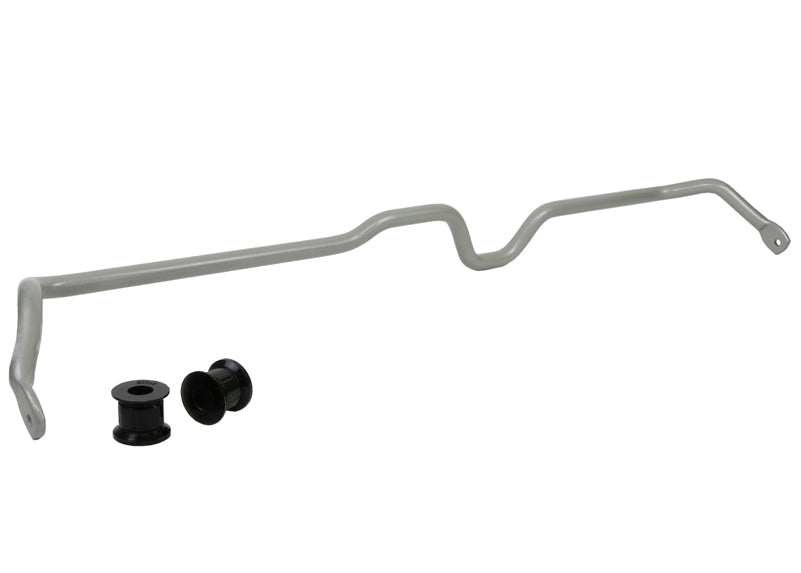

Whiteline Heavy Duty 22mm Rear Sway Bar is made for the 2004-2005 Mercedes-Benz C230 C-Class. In the box: 1 sway bar and 2 bushings. Application note: Non adjustable. Heavy duty. Position: rear. The chassis code on the listing is W203. Whiteline part number: BMR99.
The rear sway bar has a large say in how a car balances. Stiffening it limits roll at the back and brings the tail around more readily, which many drivers use to lessen understeer and sharpen response. It is a fixed design with a single stiffness setting, which keeps it simple.
Installation is rated moderate, with about 1 hour of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the C230 C-Class: Rear Sway Bar Link and Front Sway Bar Link.
Features
- Lateral locks: DIY lateral locks stop the bar from shifting sideways under cornering loads.
- Roll stiffness: A larger diameter bar has more torsional resistance, which raises overall roll stiffness.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
- Bar mounts: Mount bushings use an internally knurled bore and grease retention lips for lasting lubrication.
- Finish: The metal parts are powder coated for durability.
Specifications
| Part Number | BMR99 |
| Part Name | Sway Bar |
| Vehicle | 2004-2005 Mercedes-Benz C230 Kompressor Classic, Elegance, Sport C-Class |
| Chassis Code | W203 |
| Adjustable | No |
| Bar Color | Silver |
| Bar Diameter | 22 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 1 Sway Bar, 2 Bushings |
| Material | Solid Spring Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Non adjustable. Heavy duty |
