Product Details

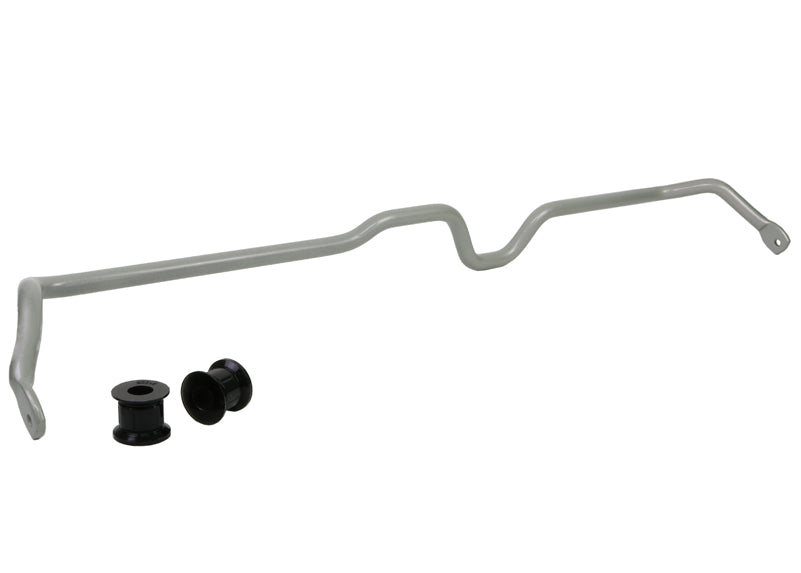

Whiteline built the Heavy Duty 22mm Rear Sway Bar for the 2001-2005 Mercedes-Benz C240 Base C-Class (W203). You receive 1 sway bar and 2 bushings. Whiteline's note for this fit: Non adjustable. Heavy duty. Trim named on the listing: Base C-Class. Part number BMR99. Placement: rear.
Roll control is shared between the springs and the bars, and the rear bar is the easier one to use for fine tuning balance. A stiffer bar keeps the rear flatter and moves the car toward a more neutral feel. It is a fixed design with a single stiffness setting, which keeps it simple.
Installation is rated moderate, with about 1 hour of work listed. No alignment is needed afterward. To go with it on the C240, see Front Sway Bar Link Kit and Heavy Duty Blade Adjustable 24mm Front Sway Bar.
Features
- Roll stiffness: Bar diameter sets the stiffness, and this one raises roll resistance.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Lateral locks: Built-in lateral locks hold the bar in position side to side.
- Bar mounts: Internally knurled mount bushings with lips that hold grease keep the bar lubricated.
- Roll control: Reduces body sway through turns.
- Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
| Part Number | BMR99 |
| Part Name | Sway Bar |
| Vehicle | 2001-2005 Mercedes-Benz C240 Base C-Class |
| Chassis Code | W203 |
| Adjustable | No |
| Bar Color | Silver |
| Bar Diameter | 22 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushings Included | Yes |
| Finish | Powder Coated |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 1 Sway Bar, 2 Bushings |
| Material | Solid Spring Steel |
| Mounting Brackets Included | No |
| Mounting Hardware Included | No |
| Suspension Grade Type | Performance |
| Sway Bar Links Included | No |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Non adjustable. Heavy duty |
