Product Details

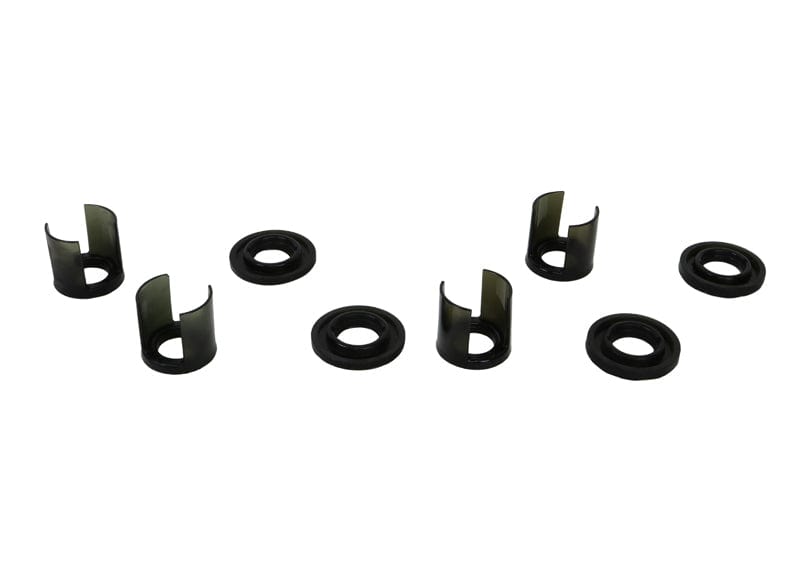

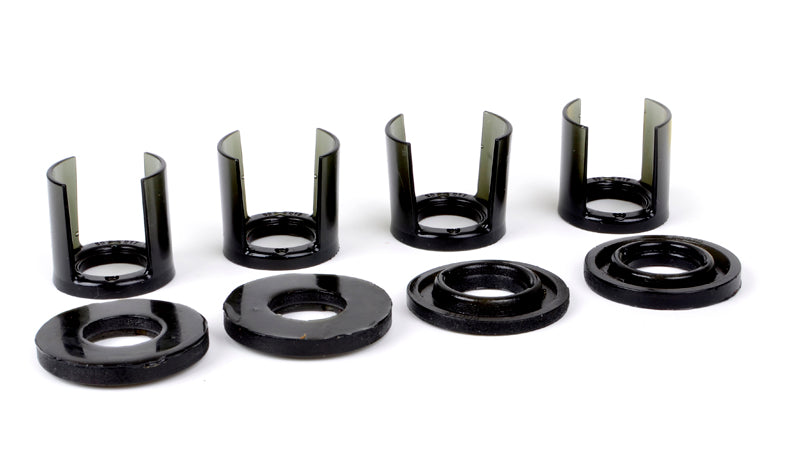

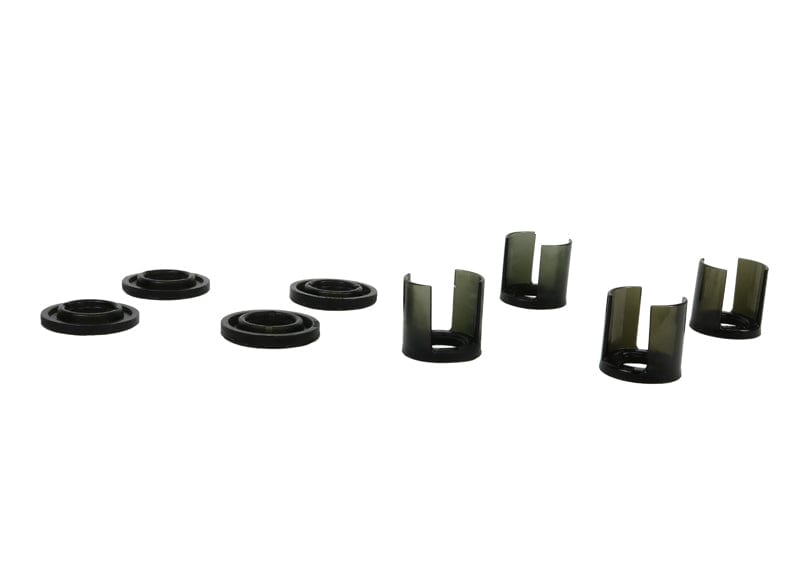

This Whiteline Rear Subframe Mount Bushing (Inserts Only) fits the 2016 Subaru WRX STI Series.HyperBlue (VA). In the box: 8 insert bushings, an install guide, and grease. Order it as part number KDT938. Application note: Positive traction kit: locks subframe to body, inserts only. It goes on the rear of the vehicle.

Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners. This is a positive traction style kit, designed to lock the subframe to the body.

Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. To go with it on the WRX STI, see Adjustable Front Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Install guide: Instructions for fitting are packed in the box.
  • Bonded design: Bonding adds durability in high-load use.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
Part Number KDT938
Part Name Subframe Mount Bushing
Vehicle 2016 Subaru WRX STI Series.HyperBlue
Drivetrain AWD
Chassis Code VA
Bushing Color Black
Bushing Material Polyurethane
Color Black
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Insert Bushings, Install Guide, Grease
Material Polyurethane
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive traction kit - locks subframe to body - inserts only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2016SubaruWRX STIAWDPositive traction kit - locks subframe to body - inserts only
