Product Details

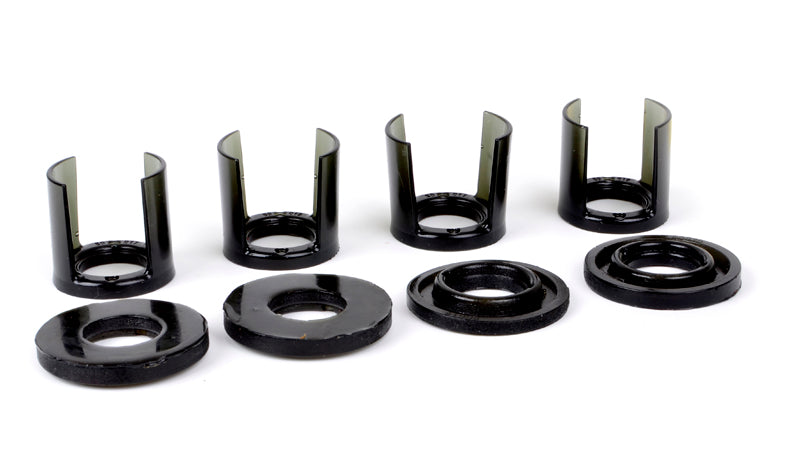

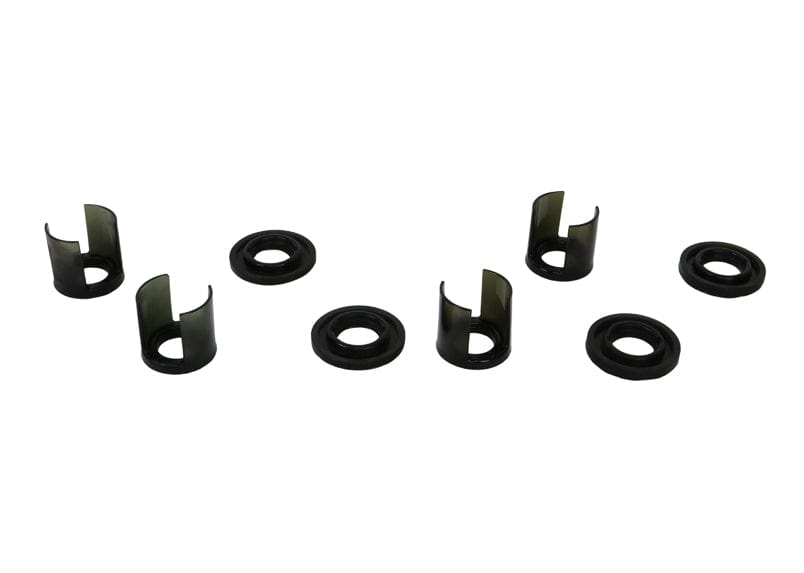

This Whiteline Rear Subframe Mount Bushing (Inserts Only) fits the 2015-2017 Subaru Impreza WRX (GP/GJ). Placement: rear. Included: 8 insert bushings, an install guide, and grease. Application note: Positive traction kit: locks subframe to body, inserts only. The part number is KDT938.

Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners. It is built as a positive traction kit, which locks the subframe in place against the body.

Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Impreza WRX: Front Control Arm Lower Inner Front Bushing, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Install guide: An install guide comes in the box.
  • Bonded design: Bonding adds durability in high-load use.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
Part Number KDT938
Part Name Subframe Mount Bushing
Vehicle 2015-2017 Subaru Impreza WRX
Chassis Code GP/GJ
Bushing Color Black
Bushing Material Polyurethane
Color Black
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Insert Bushings, Install Guide, Grease
Material Polyurethane
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive traction kit - locks subframe to body - inserts only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2015SubaruWRXAWDPositive traction kit - locks subframe to body - inserts only
2016SubaruWRXAWDPositive traction kit - locks subframe to body - inserts only
2017SubaruWRXAWDPositive traction kit - locks subframe to body - inserts only
