Product Details

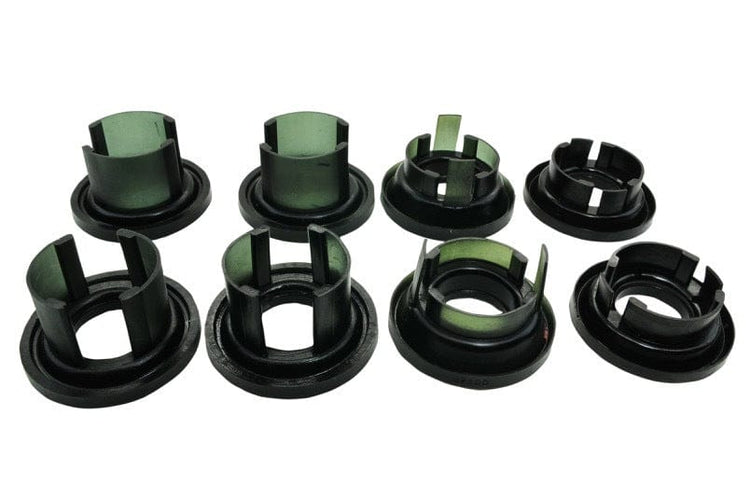

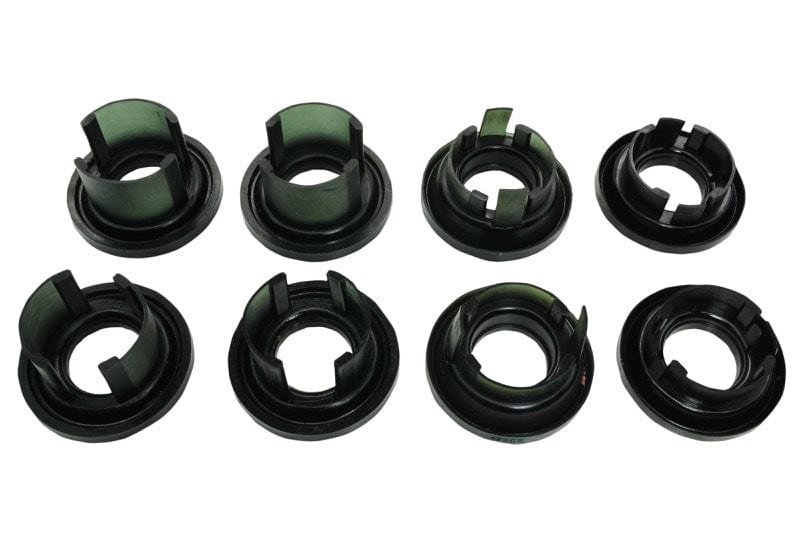

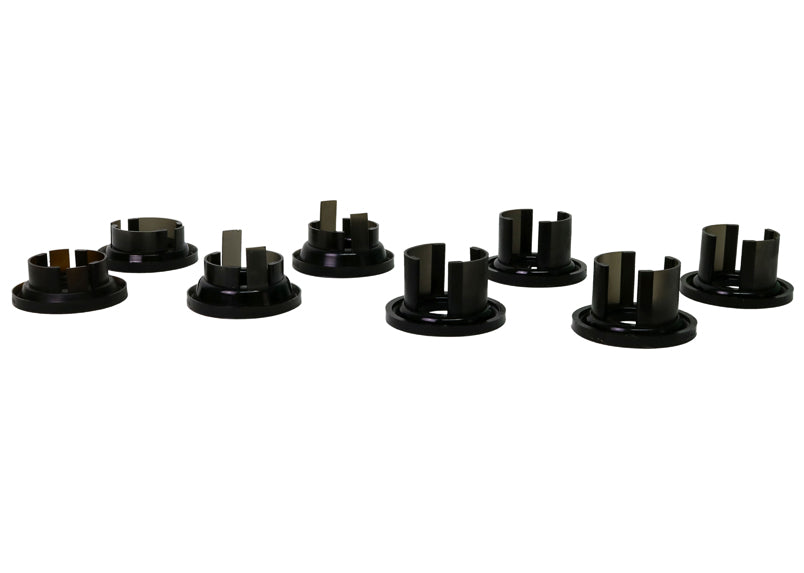

This Whiteline Rear Subframe Mount Bushing (Inserts Only) fits the 2011-2012 Subaru WRX STI Base, Limited (GR/GV). Order it as part number KDT910. Placement: rear. You receive 8 insert bushings.

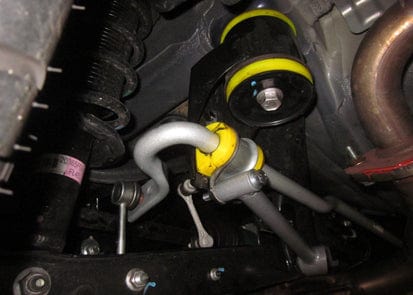

Factory subframe bushings are tuned for isolation, not precision, and under load they allow the rear crossmember to move relative to the body. These polyurethane bushings limit that movement, which gives a more consistent, predictable rear end when the car is pushed.

Whiteline rates the install as difficult and lists about 4 hours. An alignment is required after installation. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the WRX STI.

Features

  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Install guide: Step-by-step installation instructions come with it.
Specifications
Part Number KDT910
Part Name Subframe Mount Bushing
Vehicle 2011-2012 Subaru WRX STI Base, Limited
Drivetrain AWD
Chassis Code GR/GV
Bushing Color Black
Bushing Material Polyurethane
Grade Type Performance
Grease Fitting Included No
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Insert Bushings
Mounting Brackets Included No
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2011SubaruWRX STIAWD
2012SubaruWRX STIAWD
