Product Details

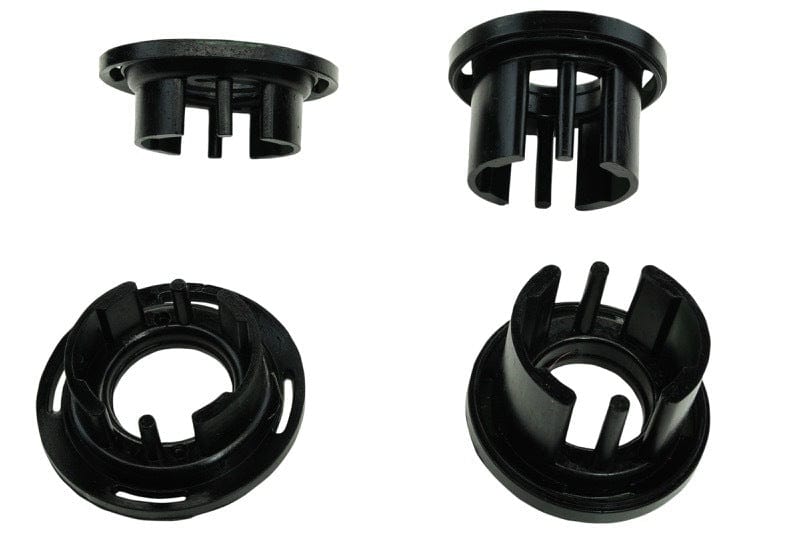

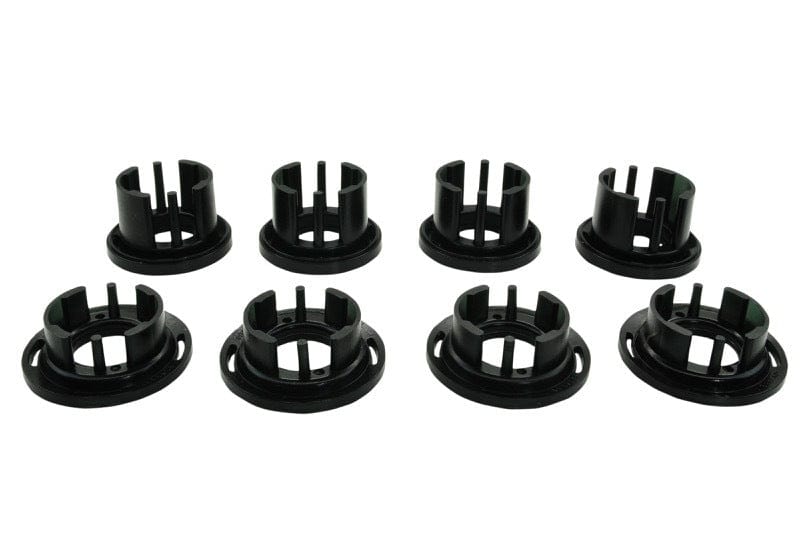

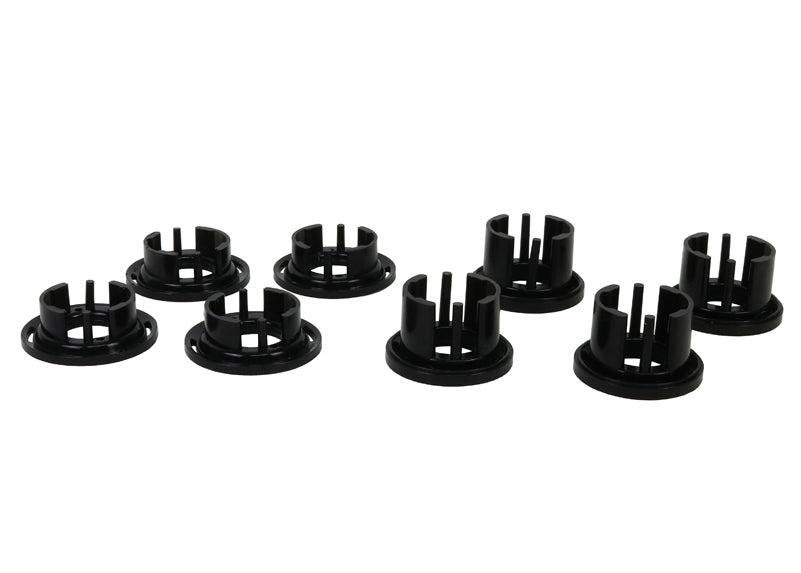

This Whiteline Rear Subframe Mount Bushing (Inserts Only) fits the 2008-2010 Subaru WRX STI Base (GR/GV). In the box: 8 insert bushings, an install guide, and grease. Whiteline part number: KDT902. It goes on the rear of the vehicle.

Factory subframe bushings are tuned for isolation, not precision, and under load they allow the rear crossmember to move relative to the body. These polyurethane bushings limit that movement, which gives a more consistent, predictable rear end when the car is pushed.

Expect a difficult job of about 4 hours. An alignment is required after installation. Other Whiteline parts we list for the WRX STI: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Install guide: Whiteline packs an install guide with it.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bonded design: A bonded design adds strength for high load applications.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number KDT902
Part Name Subframe Mount Bushing
Vehicle 2008-2010 Subaru WRX STI Base
Drivetrain AWD
Chassis Code GR/GV
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Insert Bushings, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2008SubaruWRX STIAWD
2009SubaruWRX STIAWD
2010SubaruWRX STIAWD
