Product Details

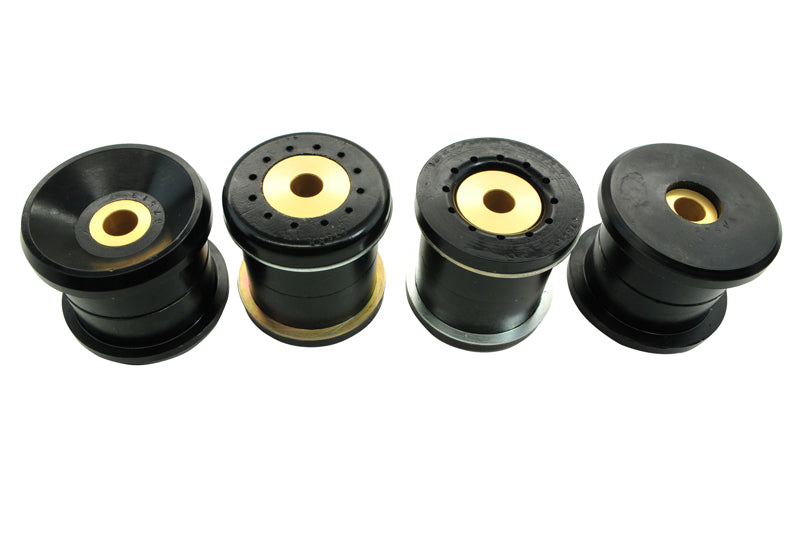

This Whiteline Rear Subframe Mount Bushing fits the 2017-2021 BMW 230i 2 Series (F22/F23). Order it as part number KDT917. Chassis code: F22/F23. The kit contains 8 bushings, 4 tubes, an install guide, and grease. Position: rear.

The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.

Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the 230i 2 Series: Adjustable Rear Sway Bar Link, Front Sway Bar Link Assembly, and Rear Lower Trailing Arm Bushing.

Features

  • Finish: A powder coated finish resists corrosion and wear.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Install guide: An install guide comes in the box.
Specifications
Part Number KDT917
Part Name Subframe Mount Bushing
Vehicle 2017-2021 BMW 230i 2 Series
Chassis Code F22/F23
Drivetrain RWD
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 8 Bushings, 4 Tubes, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2017BMW230iRWD
2018BMW230iRWD
2019BMW230iRWD
2020BMW230iRWD
2021BMW230iRWD
