Product Details

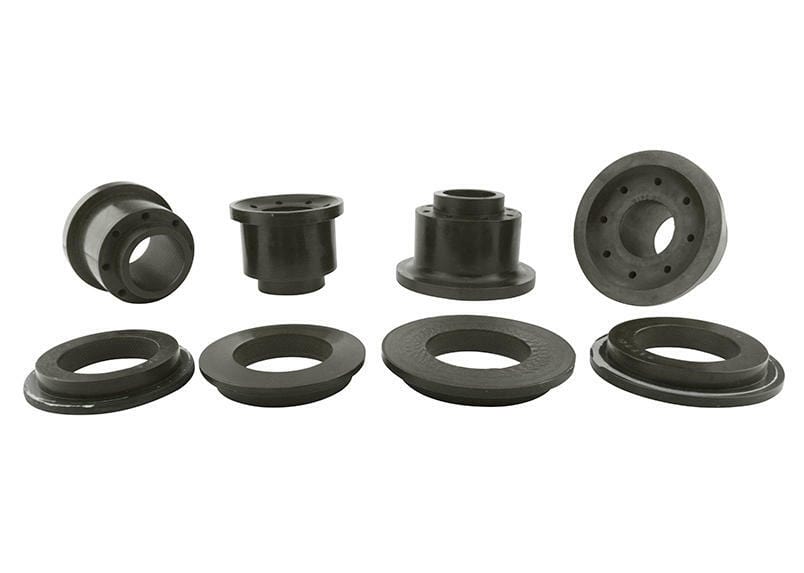

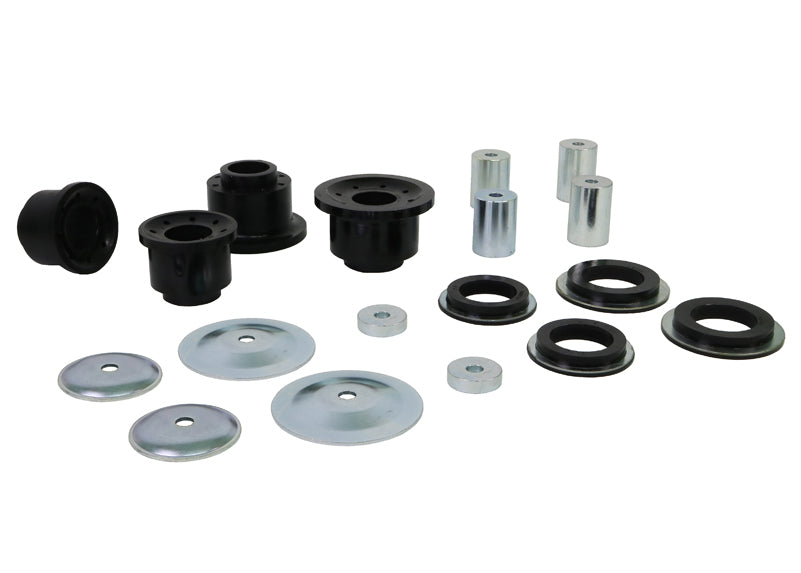

This Whiteline Rear Subframe Mount Bushing fits the 2012-2015 Dodge Charger Pursuit (LD). In the box: 8 bushings, 4 tubes, 6 washers, an install guide, and grease. Placement: rear. Part number W93343.
The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle.
Installation is rated difficult, with about 4 hours of work listed. An alignment is required after installation. To go with it on the Charger, see Front Sway Bar Link Kit, Front and Rear Sway Bar Kit, and Rear Trailing Arm Lower Front Bushing.
Features
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Finish: The metal parts are powder coated for durability.
- Install guide: Step-by-step installation instructions come with it.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
| Part Number | W93343 |
| Part Name | Subframe Mount Bushing |
| Vehicle | 2012-2015 Dodge Charger Pursuit |
| Drivetrain | RWD/AWD |
| Chassis Code | LD |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 8 Bushings, 4 Tubes, 6 Washers, Install Guide, Grease |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
