Product Details

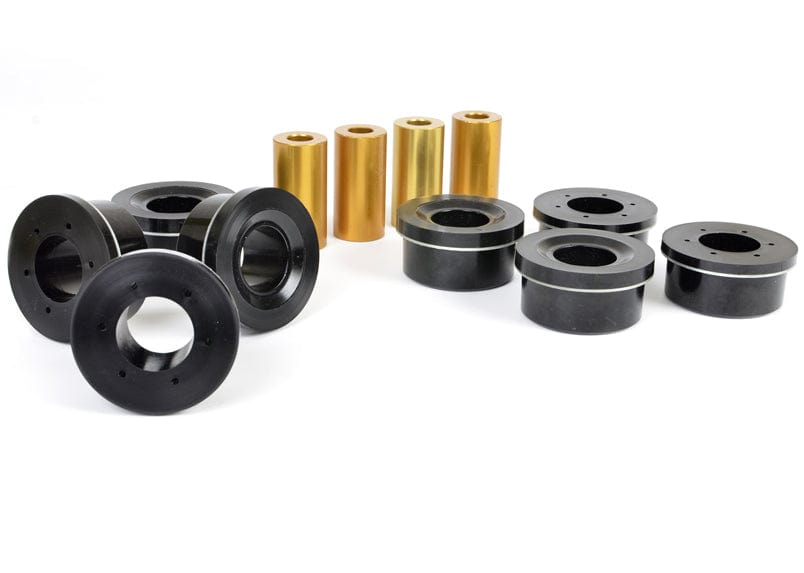

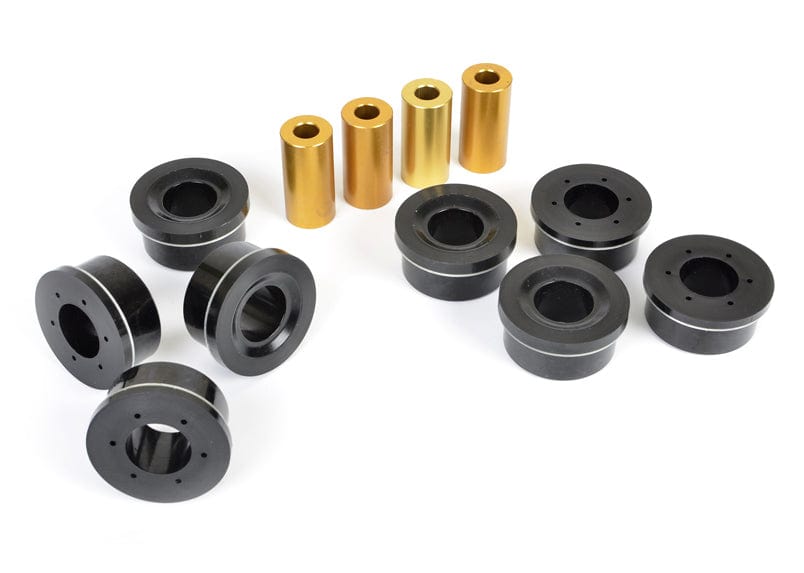

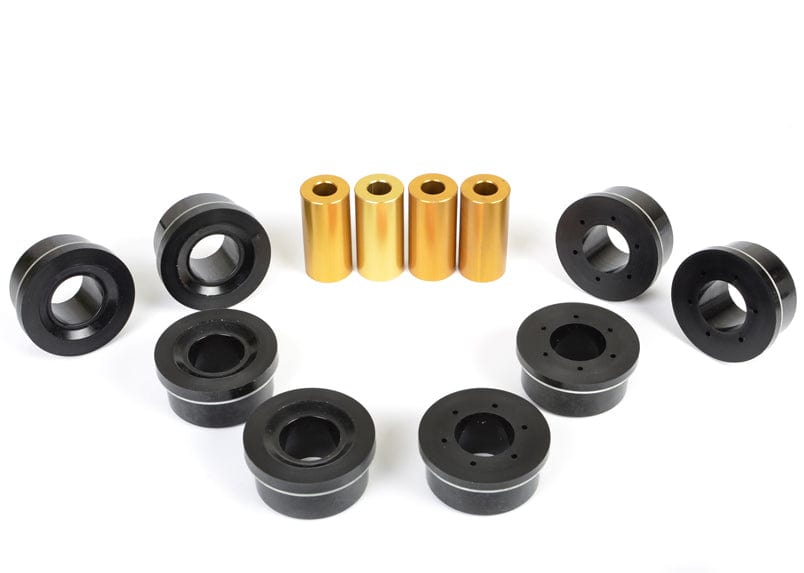

This Whiteline Rear Subframe Mount Bushing fits the 2009-2010 Subaru Impreza WRX 2.5 GT (GE/GH/GR/GV). Application note: Positive Traction Kit: Locks Subframe To Body. Order it as part number KDT907. Included: 8 bushings and 4 tubes. Placement: rear.
The rear subframe is the cradle that the rear suspension arms bolt to, and the car is attached to it through rubber mounts that are soft on purpose. That softness lets the subframe shift under hard cornering or acceleration, which dulls the feel of the rear end. A firmer bushing set holds the subframe in position, so the rear responds more directly to steering and throttle. This is a positive traction style kit, designed to lock the subframe to the body.
Whiteline rates the install as difficult and lists about 4 hours. An alignment is required after installation. To go with it on the Impreza WRX 2.5 GT, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Heavy Duty 20mm Rear Sway Bar.
Features
- Install guide: Whiteline packs an install guide with it.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Finish: Powder coating covers the metal for protection against chips and rust.
- Grease: Moly grease is supplied to prolong the life of the parts.
- Corrosion protection: Rust protection comes from plating on the metal parts.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
| Part Number | KDT907 |
| Part Name | Subframe Mount Bushing |
| Vehicle | 2009-2010 Subaru Impreza WRX 2.5 GT |
| Drivetrain | AWD |
| Chassis Code | GE/GH/GR/GV |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 8 Bushings, 4 Tubes |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Positive Traction Kit - Locks Subframe To Body |
