Product Details

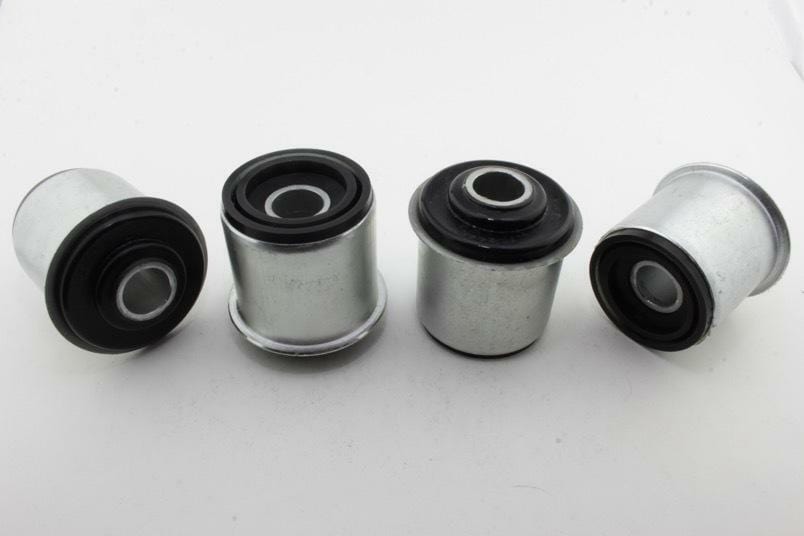

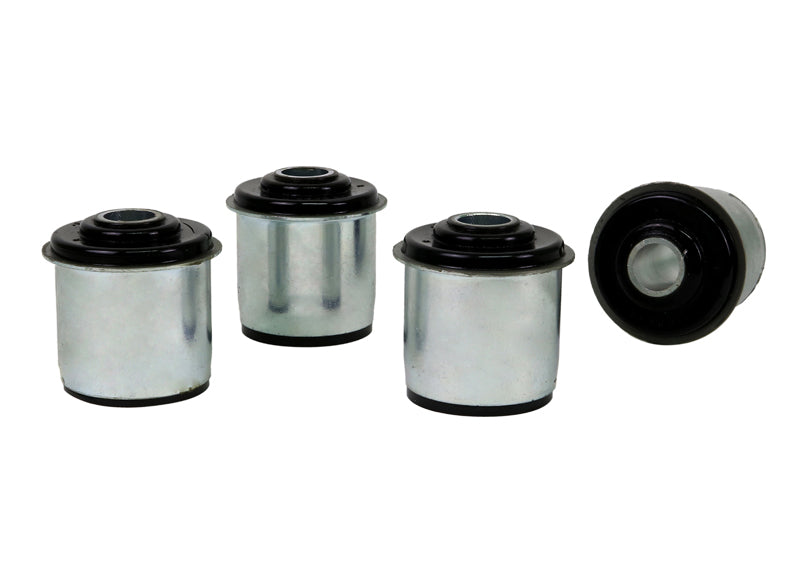

This Whiteline Rear Subframe Mount Bushing fits the 1991-1998 Nissan 240SX Base, LE (S13/S14). Order it as part number W92446. The kit contains 4 shell bushings. It goes on the rear of the vehicle.

Factory subframe bushings are tuned for isolation, not precision, and under load they allow the rear crossmember to move relative to the body. These polyurethane bushings limit that movement, which gives a more consistent, predictable rear end when the car is pushed.

Installation is rated moderate, with about 4 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the 240SX: 12mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Rear Sway Bar Link.

Features

  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Serviceable: Includes a grease fitting for future maintenance.
  • Compliance voids: Voids molded into the bushing allow suspension articulation and soften sharp road inputs.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
Part Number W92446
Part Name Subframe Mount Bushing
Vehicle 1991-1998 Nissan 240SX Base, LE
Chassis Code S13/S14
Bushing Color Black
Bushing Height 76.6 mm
Bushing Inside Diameter 22.3 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.3 mm
Color Black
Durometer 72
Grade Type Performance
Grease Fitting Included No
Greaseable Yes
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings
Material Polyurethane
Mounting Brackets Included No
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1991Nissan240SXRWD
1992Nissan240SXRWD
1993Nissan240SXRWD
1994Nissan240SXRWD
1995Nissan240SXRWD
1996Nissan240SXRWD
1997Nissan240SXRWD
1998Nissan240SXRWD
