Product Details

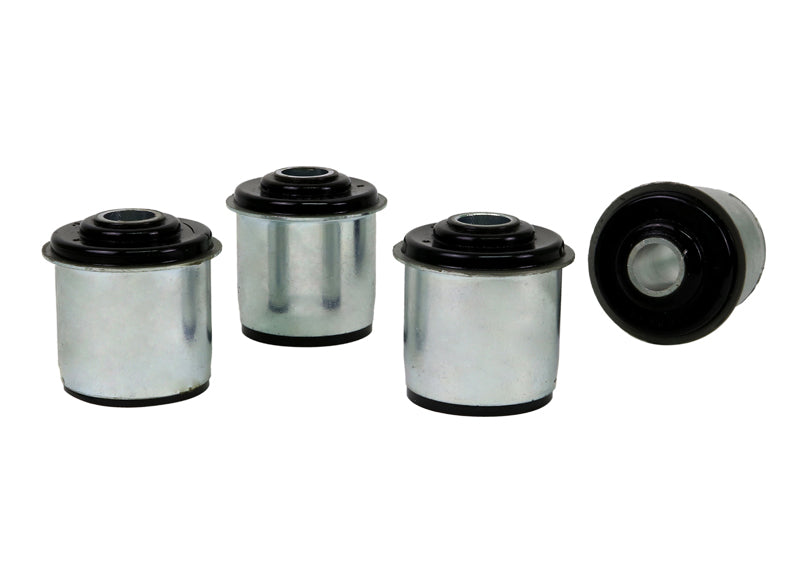

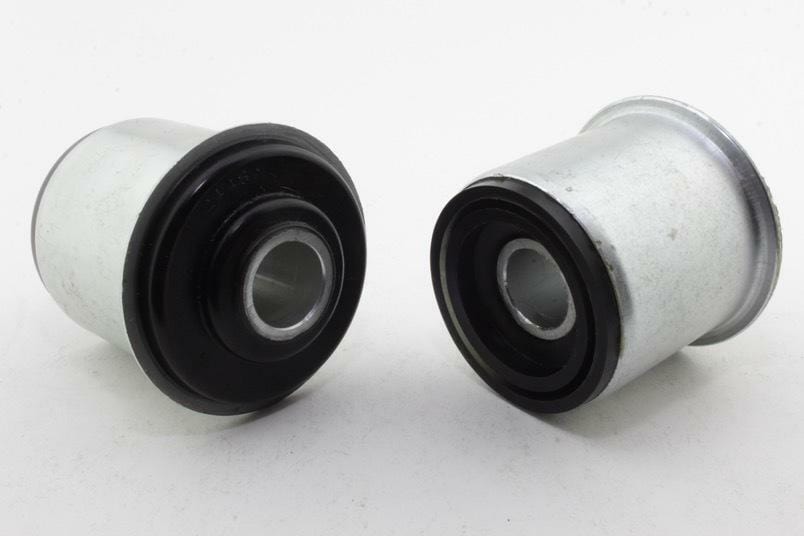

This Whiteline Rear Subframe Mount Bushing fits the 1989-1990 Nissan 240SX XE (S13). Position: rear. Included: 4 shell bushings. Chassis code: S13. Order it as part number W92446.

Rubber subframe mounts compress and stretch every time the car loads up, and the subframe moves with them. Reducing that lost motion tends to show up as steadier tracking and a more immediate rear end in corners.

Installation is rated moderate, with about 4 hours of work listed. An alignment is required after installation. To go with it on the 240SX, see Front and Rear Sway Bar Kit, Rear Sway Bar Link, and Front Sway Bar Washer Kit.

Features

  • Compliance voids: Molded voids give the bushing room to flex where it needs to.
  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Serviceable: A grease fitting is included, so the part can be re-greased as it ages.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Corrosion protection: Rust protection comes from plating on the metal parts.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
Part Number W92446
Part Name Subframe Mount Bushing
Vehicle 1989-1990 Nissan 240SX XE
Chassis Code S13
Bushing Color Black
Bushing Height 76.6 mm
Bushing Inside Diameter 22.3 mm
Bushing Material Polyurethane
Bushing Outside Diameter 66.3 mm
Color Black
Durometer 72
Grade Type Performance
Grease Fitting Included No
Greaseable Yes
Installation Difficulty Moderate
Installation Time (hrs) 4
Kit Contents 4 Shell Bushings
Material Polyurethane
Mounting Brackets Included No
Mounting Hardware Included No
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989Nissan240SXRWD
1990Nissan240SXRWD
