Product Details

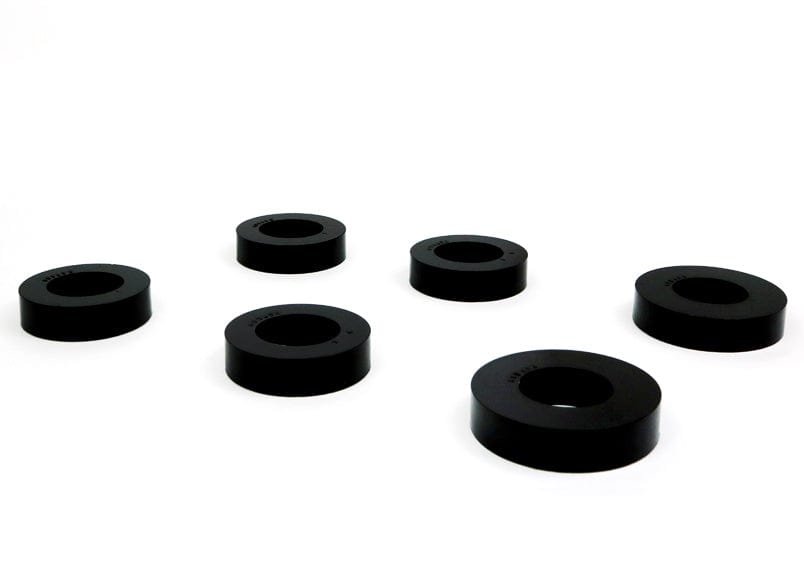

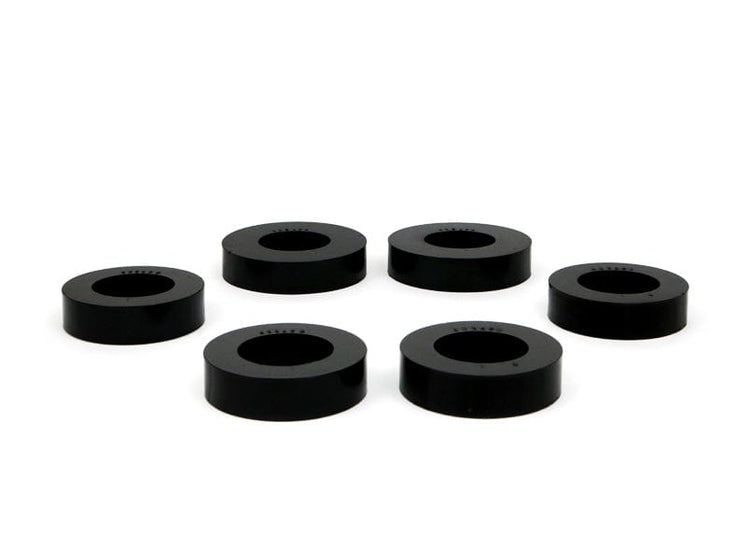

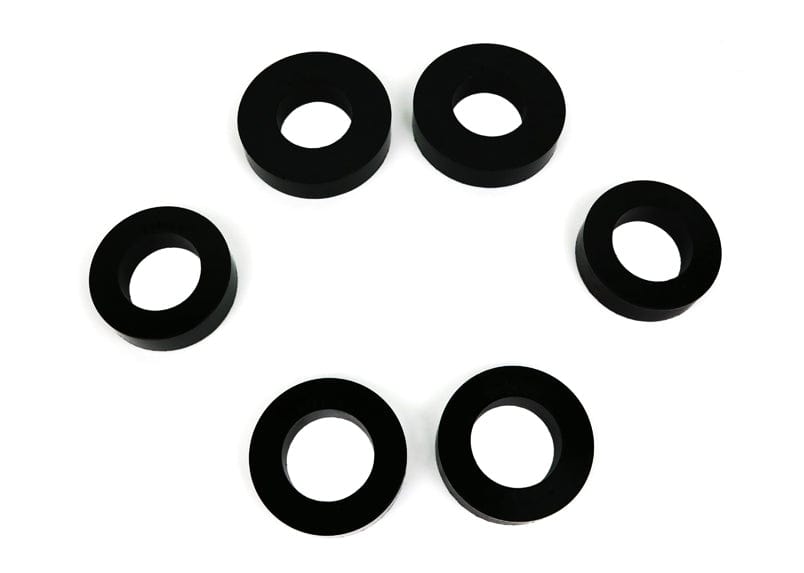

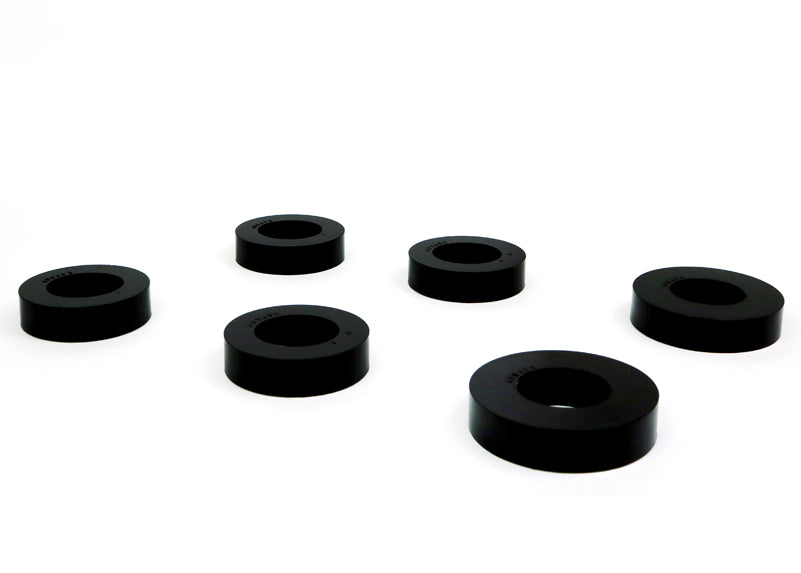

This Whiteline Rear Subframe Align And Lock Kit Bushing fits the 1990-1996 Nissan 300ZX 2+2, Base, Turbo (Z32). The kit contains 6 bushings, an install guide, and grease. The part number is KCA349. Chassis code: Z32. This part is for the rear of the vehicle. Application note: Allows Differential Angle Change & Subframe Lock.

When a subframe moves relative to the body, alignment changes as the car is loaded up in a corner. A lock kit removes that movement and keeps the rear wheel angles more consistent.

Installation is rated difficult, with about 2 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the 300ZX: Front Upper Control Arm Bushing Kit (Standard Repl.), Front Strut Rod to Chassis Bushing Kit, and Rear Lower Shock Absorber Bushing.

Features

  • Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Install guide: Step-by-step installation instructions come with it.
  • Grease: Moly grease is supplied to prolong the life of the parts.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number KCA349
Part Name Subframe Bushing Kit
Vehicle 1990-1996 Nissan 300ZX 2+2, Base, Turbo
Chassis Code Z32
Bushing Color Black
Bushing Material Polyurethane
Grade Type Regular
Installation Difficulty Difficult
Installation Time (hrs) 2
Kit Contents 6 Bushings, Install Guide, Grease
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Allows Differential Angle Change & Subframe Lock

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1990Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
1991Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
1992Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
1993Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
1994Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
1995Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
1996Nissan300ZXRWDAllows Differential Angle Change & Subframe Lock
