Product Details

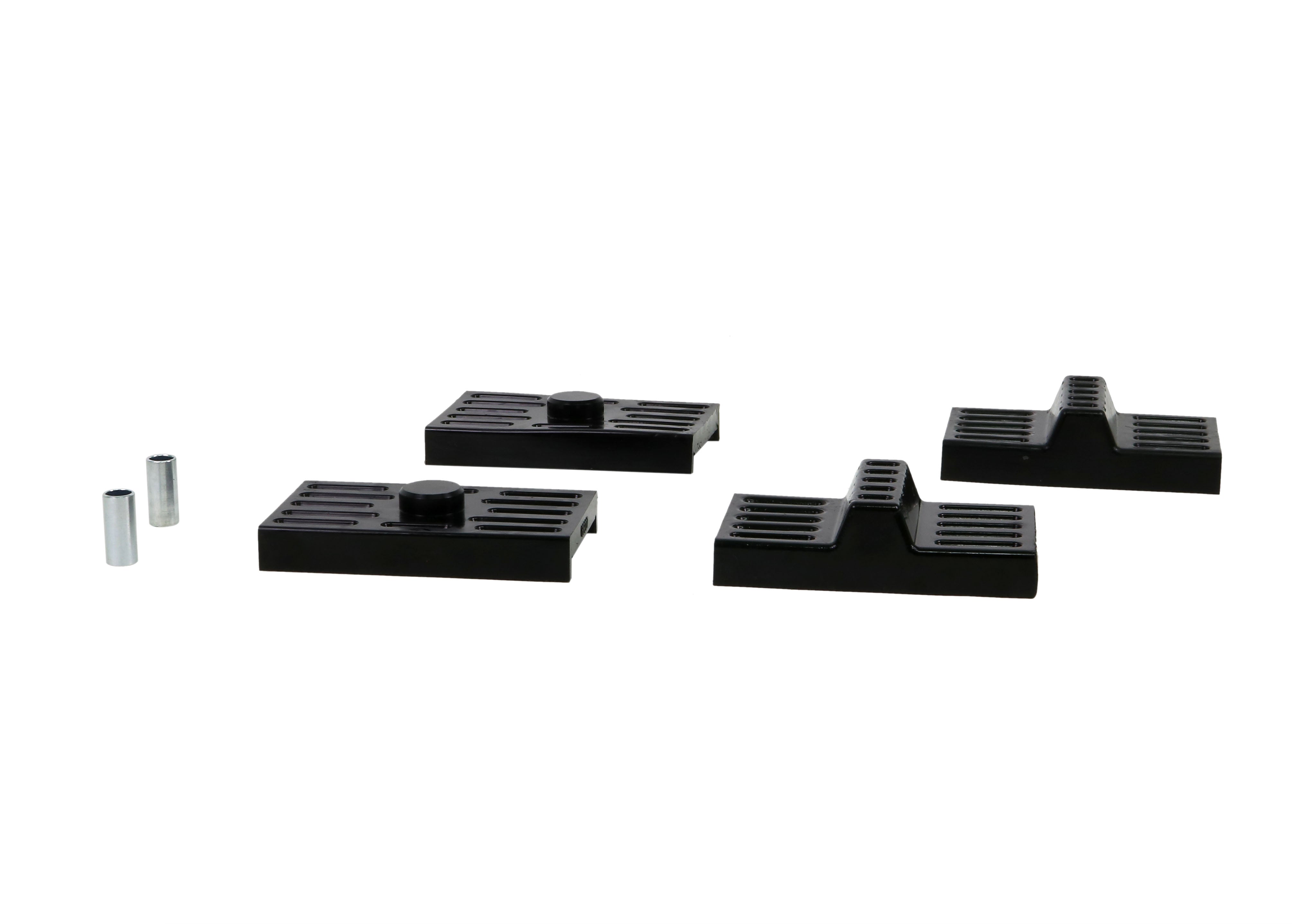

This Whiteline Rear Spring to Saddle Insulator Bushing Kit fits the 1970-1981 Chevrolet Camaro. Position: rear. Included: 4 bushings, 2 tubes, and grease. Whiteline part number: W73825.
A spring saddle or insulator sits between the spring and the axle or its mounting plate. It spreads the load and quiets contact between the parts, and when it compresses the axle position and ride height change. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as moderate and lists about 1 hour. A wheel alignment is not required. Other Whiteline parts we list for the Camaro: Ball Joint Boot Kit, Transmission Mount Bushing Kit, and Front Upper and Lower Control Arm Bushing Kit.
Features
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Install guide: An install guide comes in the box.
- Grease: Molybdenum disulfide grease comes with it for a longer service life.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | W73825 |
| Part Name | Spring Bushings |
| Vehicle | 1970-1981 Chevrolet Camaro |
| Drivetrain | RWD |
| Chassis Code | F-Body |
| Grade Type | Regular |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings, 2 Tubes, Grease |
| Length | 122 mm |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Shape | Rectangular |
| Thickness | 10.4 mm |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Width | 64 mm |
| Notes | - |
