Product Details

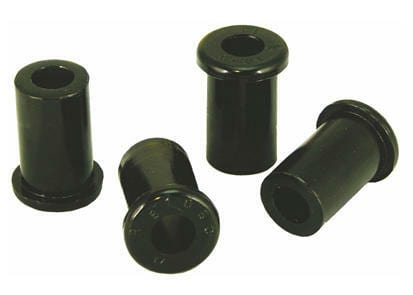

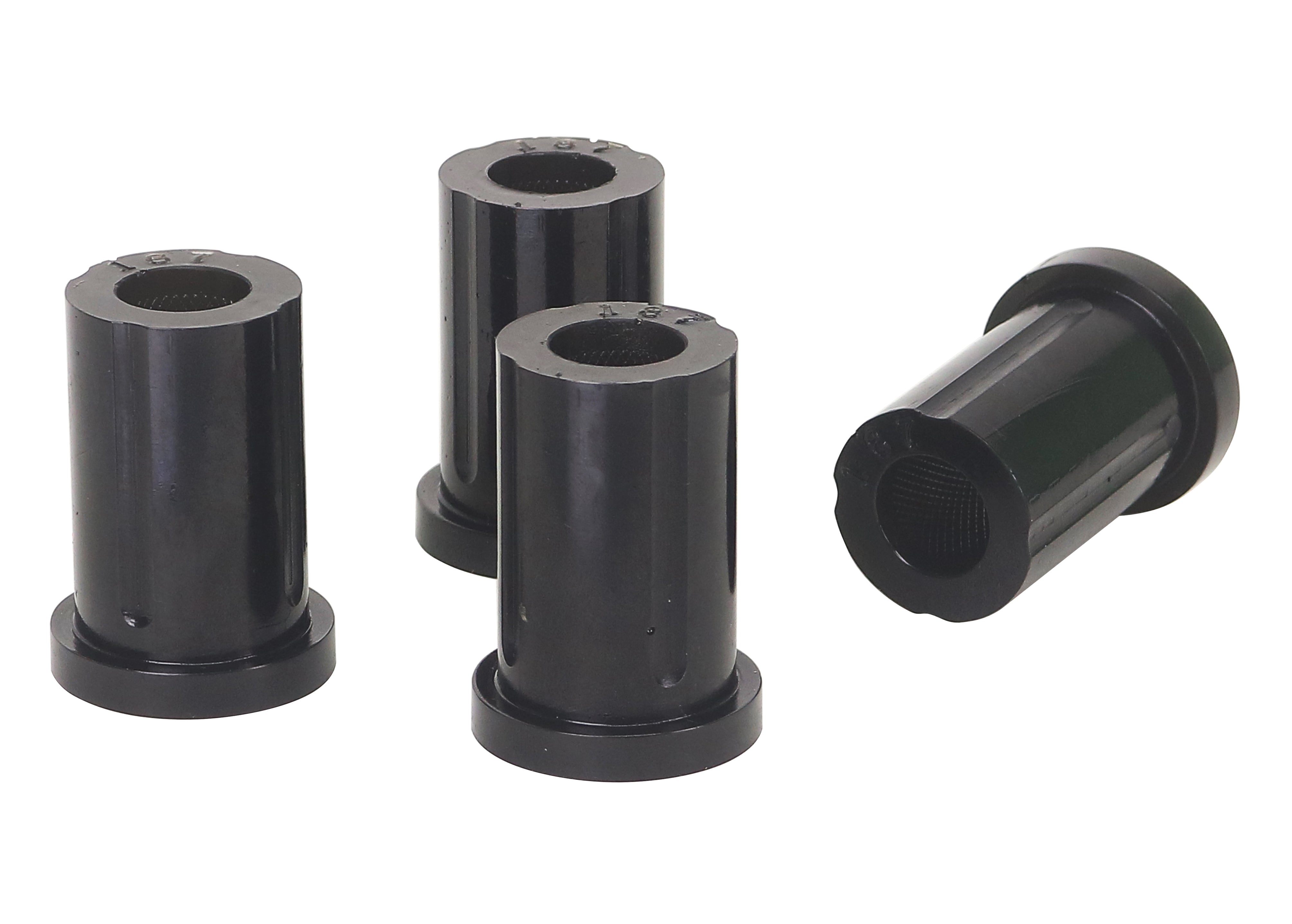

This Whiteline Rear Spring Shackle Bushing fits the 1989-1997 Mitsubishi Montero LS (V20). Part number W71050. In the box: 4 bushings. Position: rear.

Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. Polyurethane resists deflection far better than the soft rubber it replaces.

Whiteline rates the install as easy and lists about 1 hour. An alignment is required after installation. Other Whiteline parts we list for the Montero: Front Upper Control Arm Bushing Kit and Front Shock Absorber Upper Bushing.

Features

  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Easy to fit: Designed for an easy install with ordinary shop equipment.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
Specifications
Part Number W71050
Part Name Spring Shackle Bushing
Vehicle 1989-1997 Mitsubishi Montero LS
Chassis Code V20
Drivetrain 4WD
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 94
Grade Type Regular
Inside Diameter 16 mm
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Length 49.1 mm
Material Polyurethane
Outside Diameter 28 mm
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989MitsubishiMontero4WD
1990MitsubishiMontero4WD
1991MitsubishiMontero4WD
1992MitsubishiMontero4WD
1993MitsubishiMontero4WD
1994MitsubishiMontero4WD
1995MitsubishiMontero4WD
1996MitsubishiMontero4WD
1997MitsubishiMontero4WD
