Product Details

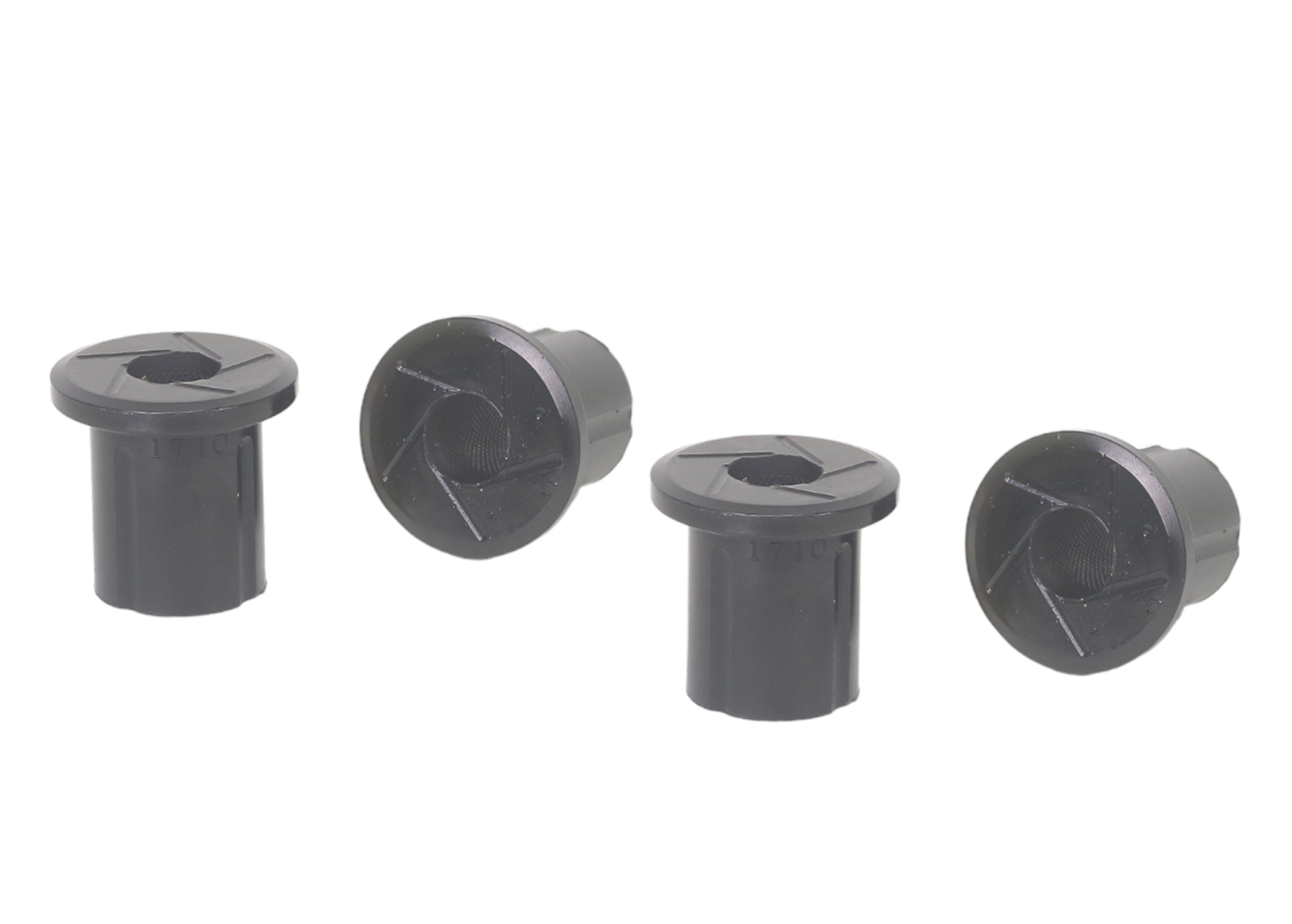

This Whiteline Rear Spring Eye Rear Bushing fits the 1992-1997 Mitsubishi Montero SR (V20). Whiteline part number: W71056. In the box: 4 bushings. This part is for the rear of the vehicle.

Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated easy, with about 1 hour of work listed. Plan on a wheel alignment afterward. We also list Front Upper Control Arm Bushing Kit and Front Shock Absorber Upper Bushing for the Montero.

Features

  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Easy to fit: Designed for an easy install with ordinary shop equipment.
Specifications
Part Number W71056
Part Name Spring Eye Bushing
Vehicle 1992-1997 Mitsubishi Montero SR
Chassis Code V20
Drivetrain 4WD
Bracket Included No
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 4
Color Black
Durometer 94
Grade Type Regular
Inside Diameter 16 mm
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Length 39 mm
Material Polyurethane
Outside Diameter 28 mm
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1992MitsubishiMontero4WD
1993MitsubishiMontero4WD
1994MitsubishiMontero4WD
1995MitsubishiMontero4WD
1996MitsubishiMontero4WD
1997MitsubishiMontero4WD
