Product Details

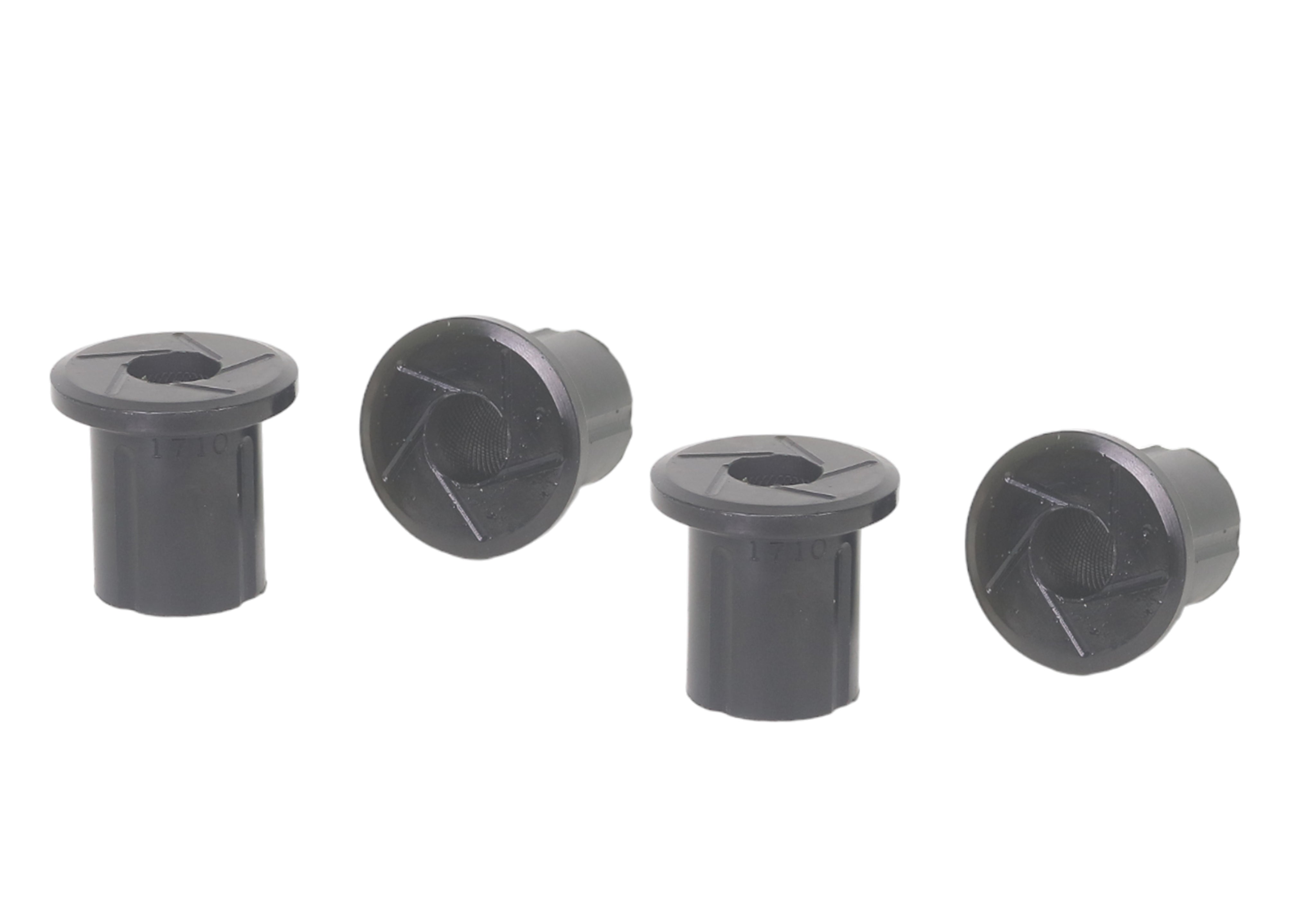

This Whiteline Rear Spring Eye Rear Bushing fits the 1989-1997 Mitsubishi Montero LS (V20). Included: 4 bushings. Position: rear. Part number W71056.

Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as easy and lists about 1 hour. Plan on a wheel alignment afterward. To go with it on the Montero, see Front Upper Control Arm Bushing Kit and Front Shock Absorber Upper Bushing.

Features

  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Easy to fit: Designed so the install needs no specialized skills or tools.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
Part Number W71056
Part Name Spring Eye Bushing
Vehicle 1989-1997 Mitsubishi Montero LS
Chassis Code V20
Drivetrain 4WD
Bracket Included No
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 4
Color Black
Durometer 94
Grade Type Regular
Inside Diameter 16 mm
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Length 39 mm
Material Polyurethane
Outside Diameter 28 mm
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1989MitsubishiMontero4WD
1990MitsubishiMontero4WD
1991MitsubishiMontero4WD
1992MitsubishiMontero4WD
1993MitsubishiMontero4WD
1994MitsubishiMontero4WD
1995MitsubishiMontero4WD
1996MitsubishiMontero4WD
1997MitsubishiMontero4WD
