Product Details

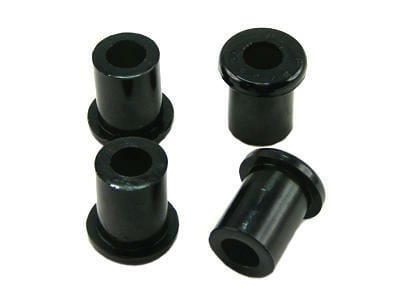

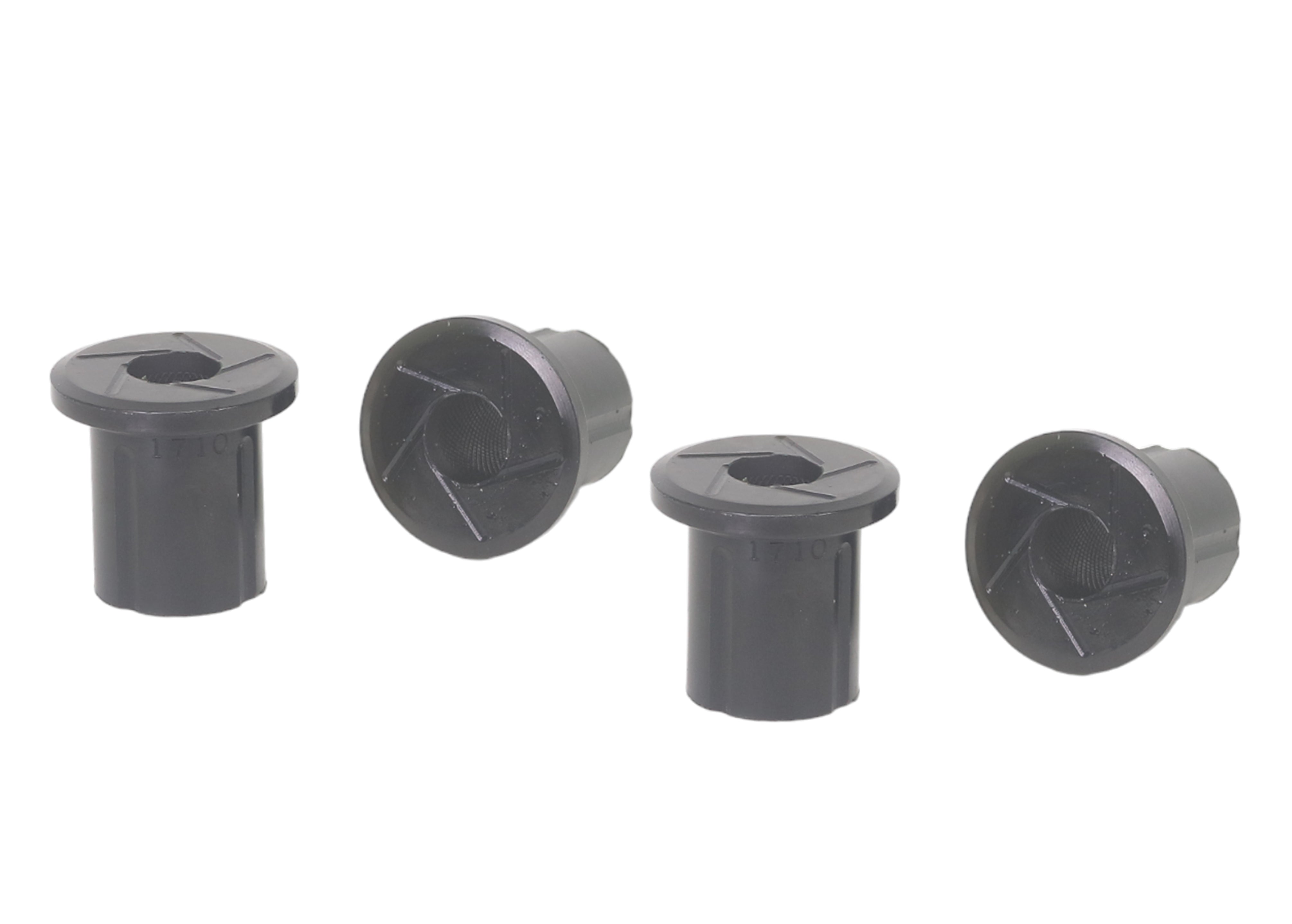

This Whiteline Rear Spring Eye Rear Bushing fits the 1987-1989 Dodge Raider Base (NA). In the box: 4 bushings. Part number W71056. Position: rear.

A tired leaf spring bushing lets the axle wander under braking, acceleration, and load. Fresh bushings hold the spring ends firmly while still letting them pivot. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as easy and lists about 1 hour. Get the car aligned once it is back on the ground. To go with it on the Raider, see Front Sway Bar Washer Kit, Front Sway Bar Link Bushing Kit, and Front Upper Shock Absorber Bushing Kit.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
Part Number W71056
Part Name Spring Eye Bushing
Vehicle 1987-1989 Dodge Raider Base
Chassis Code NA
Bracket Included No
Bushing Color Black
Bushing Material Polyurethane
Bushing Quantity 4
Color Black
Durometer 94
Grade Type Regular
Inside Diameter 16 mm
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Length 39 mm
Material Polyurethane
Outside Diameter 28 mm
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1987DodgeRaider4WD
1988DodgeRaider4WD
1989DodgeRaider4WD
