Product Details

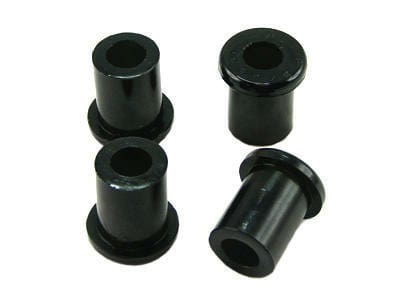

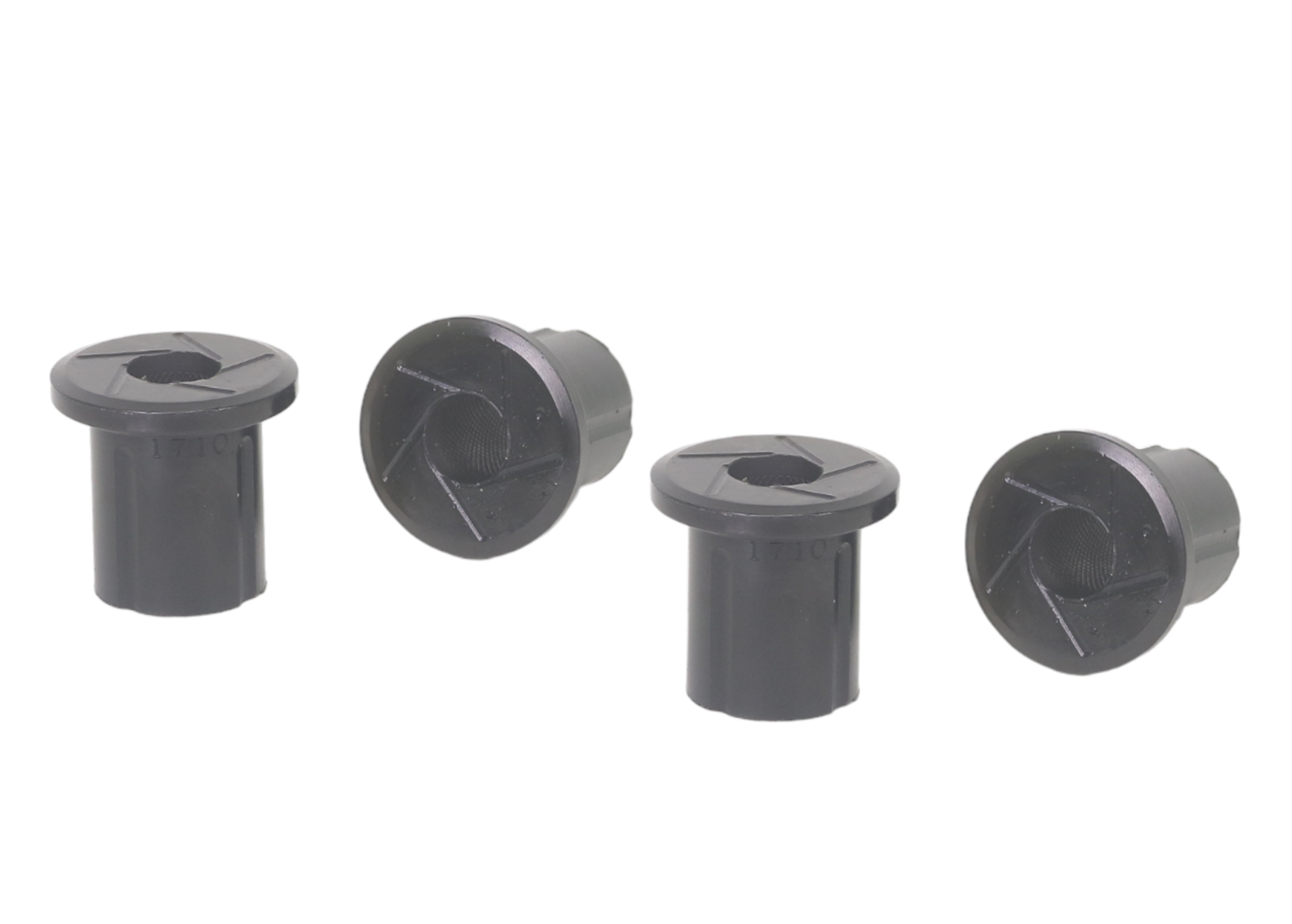

This Whiteline Rear Spring Eye Rear Bushing fits the 1983-1999 Mitsubishi Montero Base (L040/V20). In the box: 4 bushings. The part number is W71056. This part is for the rear of the vehicle.
A tired leaf spring bushing lets the axle wander under braking, acceleration, and load. Fresh bushings hold the spring ends firmly while still letting them pivot. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect an easy job of about 1 hour. Plan on a wheel alignment afterward. To go with it on the Montero, see Front Upper Control Arm Bushing Kit and Front Shock Absorber Upper Bushing.
Features
- Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
- Easy to fit: Designed for an easy install with ordinary shop equipment.
Specifications
| Part Number | W71056 |
| Part Name | Spring Eye Bushing |
| Vehicle | 1983-1999 Mitsubishi Montero Base |
| Drivetrain | 4WD |
| Chassis Code | L040/V20 |
| Bracket Included | No |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 4 |
| Color | Black |
| Durometer | 94 |
| Grade Type | Regular |
| Inside Diameter | 16 mm |
| Installation Difficulty | Easy |
| Installation Time (hrs) | 1 |
| Kit Contents | 4 Bushings |
| Length | 39 mm |
| Material | Polyurethane |
| Outside Diameter | 28 mm |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
