Product Details

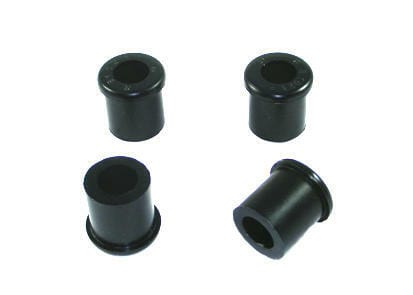

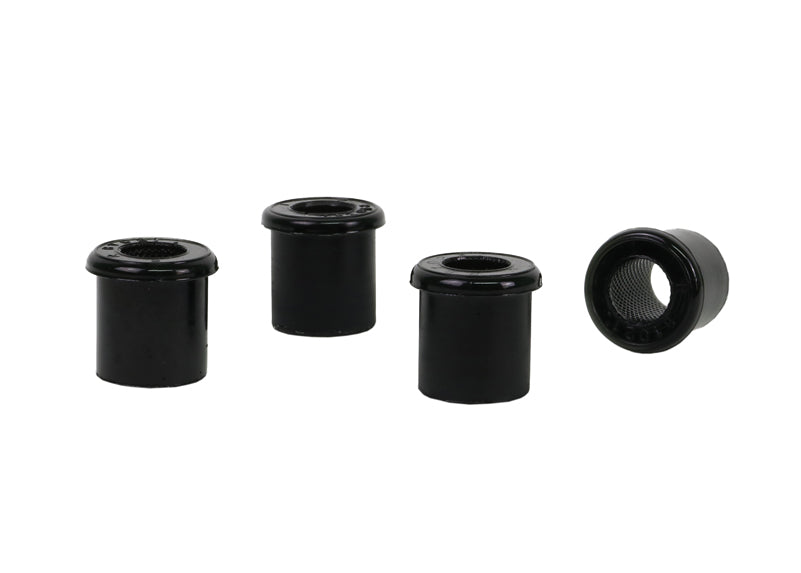

This Whiteline Rear Spring Eye Rear And Shackle Bushing fits the 1989-1990 Isuzu Pickup XS (TF). Chassis code: TF. This part is for the rear of the vehicle. Included: 4 bushings. Order it as part number W71021.

Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated easy, with about 1 hour of work listed. Plan on a wheel alignment afterward. To go with it on the Pickup, see Front Sway Bar Washer Kit, Front Sway Bar Link Bushing (28.5mm OD), and Front Upper Shock Absorber Bushing Kit.

Features

  • Easy to fit: Designed for an easy install with ordinary shop equipment.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
Part Number W71021
Part Name Spring Eye Bushing
Vehicle 1989-1990 Isuzu Pickup XS
Chassis Code TF
Bushing Color Black
Bushing Inside Diameter 18.2 mm
Bushing Length 33 mm
Bushing Material Polyurethane
Bushing Outside Diameter 30.2 mm
Durometer 85
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1989IsuzuPickup
1990IsuzuPickup
