Product Details

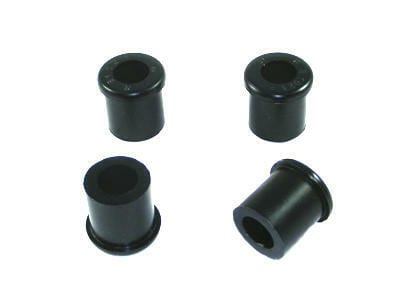

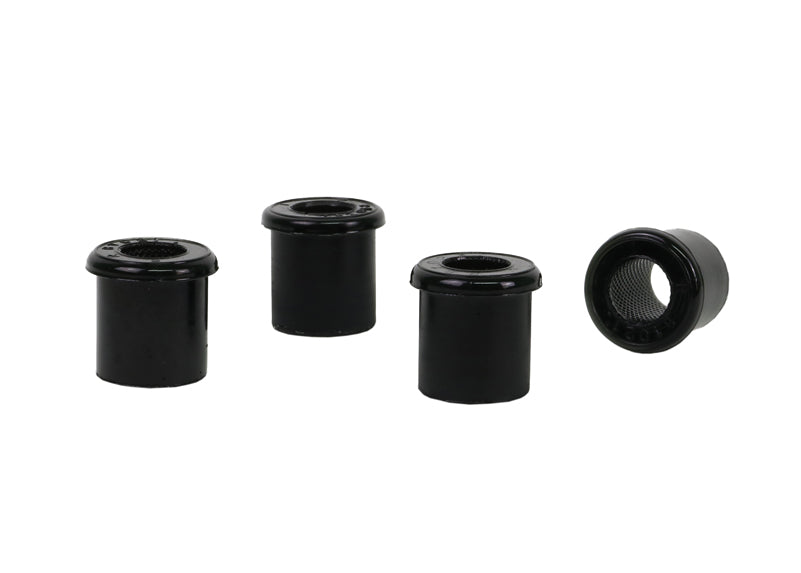

This Whiteline Rear Spring Eye Rear And Shackle Bushing fits the 1988-1992 Isuzu Pickup 1 Ton (TF). Whiteline part number: W71021. In the box: 4 bushings. This part is for the rear of the vehicle.

Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. The polyurethane used here deflects much less than the original rubber under the same load.

Expect an easy job of about 1 hour. An alignment is required after installation. To go with it on the Pickup, see Front Sway Bar Washer Kit, Front Sway Bar Link Bushing (28.5mm OD), and Front Upper Shock Absorber Bushing Kit.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Easy to fit: Designed for an easy install with ordinary shop equipment.
Specifications
Part Number W71021
Part Name Spring Eye Bushing
Vehicle 1988-1992 Isuzu Pickup 1 Ton
Chassis Code TF
Bushing Color Black
Bushing Inside Diameter 18.2 mm
Bushing Length 33 mm
Bushing Material Polyurethane
Bushing Outside Diameter 30.2 mm
Durometer 85
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelNotes
1988IsuzuPickup
1989IsuzuPickup
1990IsuzuPickup
1991IsuzuPickup
1992IsuzuPickup
