Product Details

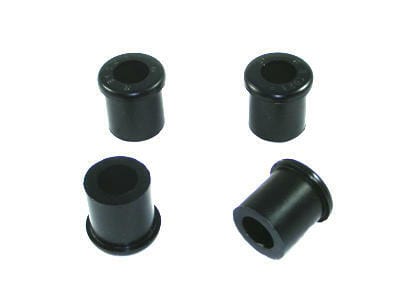

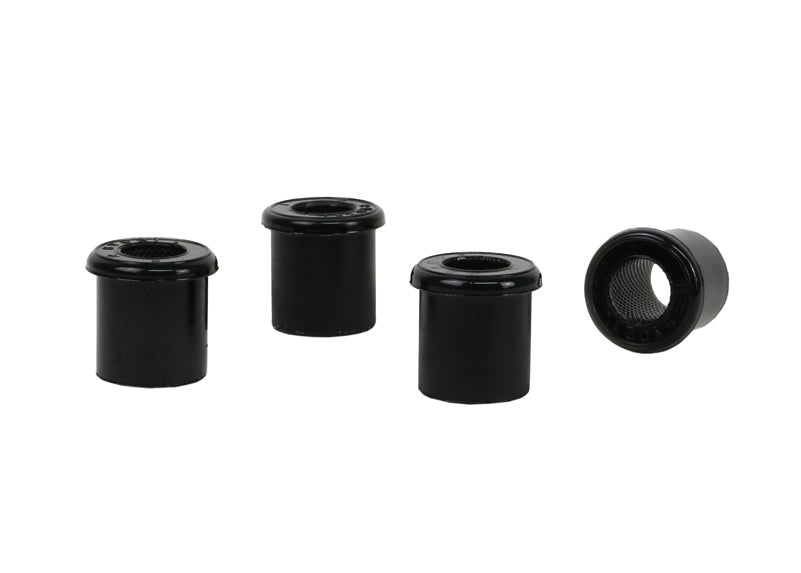

This Whiteline Rear Spring Eye Rear And Shackle Bushing fits the 1986-1991 Isuzu Trooper LS (UBS). Part number W71021. Included: 4 bushings. This part is for the rear of the vehicle.

A tired leaf spring bushing lets the axle wander under braking, acceleration, and load. Fresh bushings hold the spring ends firmly while still letting them pivot. The polyurethane used here deflects much less than the original rubber under the same load.

Expect an easy job of about 1 hour. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Trooper: Front Sway Bar Washer Kit and Front Upper Shock Absorber Bushing Kit.

Features

  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Easy to fit: Made with the installer in mind, so it goes in without special equipment.
Specifications
Part Number W71021
Part Name Spring Eye Bushing
Vehicle 1986-1991 Isuzu Trooper LS
Drivetrain 4WD
Chassis Code UBS
Bushing Color Black
Bushing Inside Diameter 18.2 mm
Bushing Length 33 mm
Bushing Material Polyurethane
Bushing Outside Diameter 30.2 mm
Durometer 85
Grade Type Regular
Installation Difficulty Easy
Installation Time (hrs) 1
Kit Contents 4 Bushings
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1986IsuzuTrooper4WD
1987IsuzuTrooper4WD
1988IsuzuTrooper4WD
1989IsuzuTrooper4WD
1990IsuzuTrooper4WD
1991IsuzuTrooper4WD
