Product Details

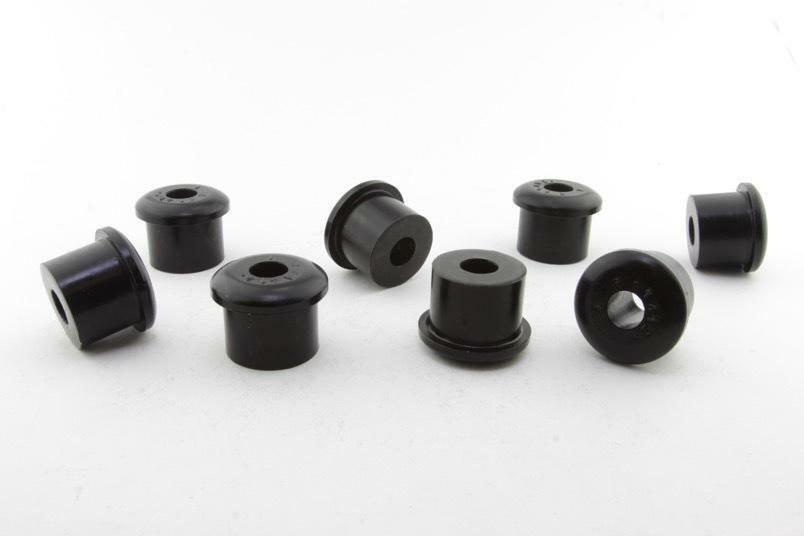

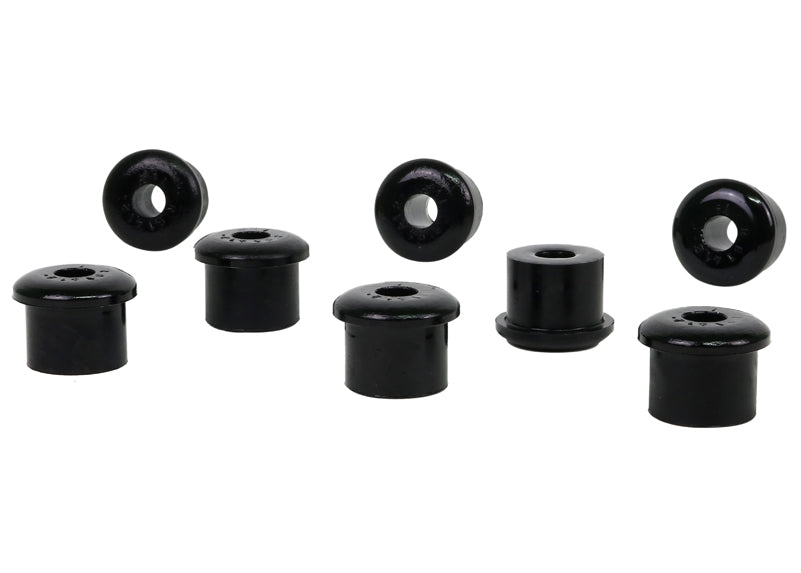

This Whiteline Rear Spring Eye Rear And Shackle Bushing fits the 1962-1965 Ford Fairlane 500, Base. The part number is W71412. It goes on the rear of the vehicle. Included: 8 bushings.

Leaf spring bushings do a lot of work: the spring flexes and changes length as it moves, and the eye and shackle pivots absorb it. Replacing worn ones puts the axle back where it belongs. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 1 hour of work listed. Get the car aligned once it is back on the ground. To go with it on the Fairlane, see Front Spring Saddle Assembly and Front Upper Coil Spring Pad Bushing Kit.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
Part Number W71412
Part Name Spring Eye Bushing
Vehicle 1962-1965 Ford Fairlane 500, Base
Drivetrain RWD
Bushing Color Black
Bushing Inside Diameter 14.3 mm
Bushing Length 32.6 mm
Bushing Material Polyurethane
Bushing Outside Diameter 35.5 mm
Durometer 85
Grade Type Regular
Installation Difficulty Moderate
Installation Time (hrs) 1
Kit Contents 8 Bushings
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes -

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1962FordFairlaneRWD
1963FordFairlaneRWD
1964FordFairlaneRWD
1965FordFairlaneRWD
