Product Details

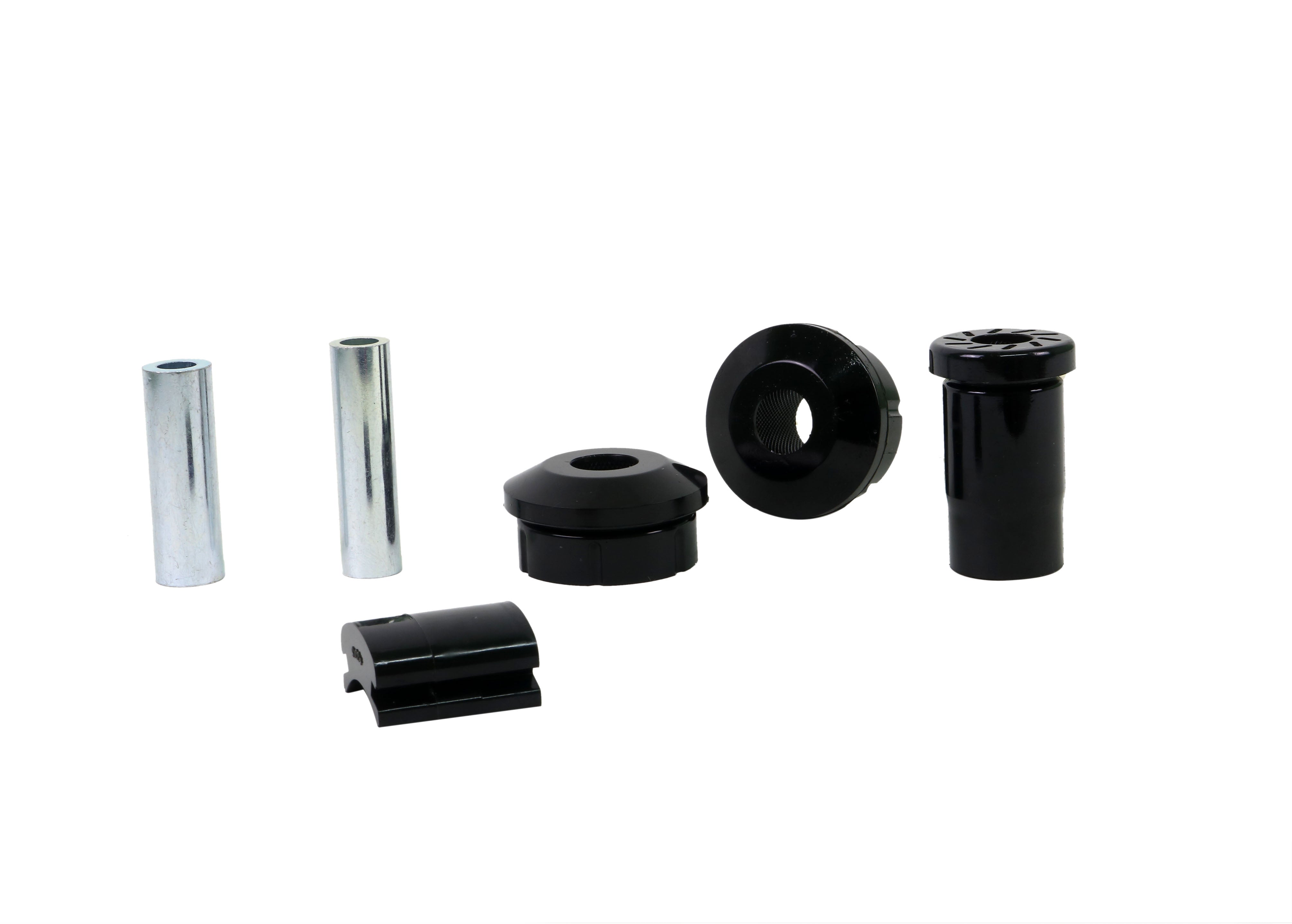

This Whiteline Rear Lower Inner Rearward Control Arm Bushing Kit fits the 2005-2010 Ford Mustang (S197). Part number W63634. It goes on the rear of the vehicle. You receive 4 bushings and 2 tubes.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2 hours of work listed. An alignment is required after installation. Other Whiteline parts we list for the Mustang: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Install guide: Step-by-step installation instructions come with it.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Material: The part is made of polyurethane.
Specifications
| Part Number | W63634 |
| Part Name | Control Arm Bushings |
| Vehicle | 2005-2010 Ford Mustang |
| Chassis Code | S197 |
| Bushing 1 Inner Diameter | 14.3 mm |
| Bushing 1 Length | 80 mm |
| Bushing 1 Outer Diameter | 66 mm |
| Bushing 2 Inner Diameter | 14.3 mm |
| Bushing 2 Length | 86 mm |
| Bushing 2 Outer Diameter | 66 mm |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Bushing Quantity | 4 |
| Grade Type | Regular |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 66 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
