Product Details

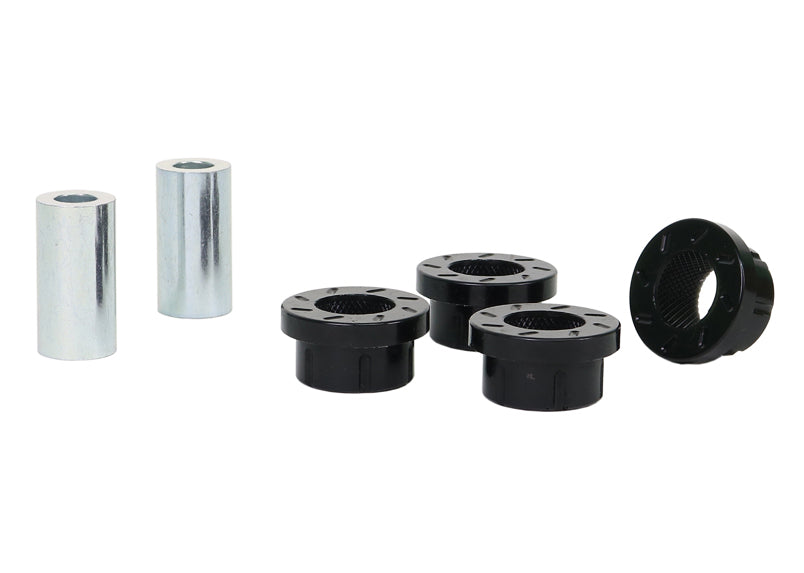

This Whiteline Rear Lower Inner Front Control Arm Bushing Kit fits the 2002-2010 Lexus SC430. Application note: Fits inner position of rear toe arm (forward most rear link with ball joint in outer position). The kit contains 4 bushings and 2 tubes. This part is for the rear of the vehicle. The part number is W63562.
Every time the wheel moves, the control arm swings on its bushings. When they are soft or worn, the arm shifts under load, the alignment changes as the car moves, and steering and braking feel less precise. A stiffer bushing cuts that unwanted movement while still letting the arm pivot freely. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 2 hours of work listed. Plan on a wheel alignment afterward. To go with it on the SC430, see Rear Adjustable Toe Control Arms and Front Lower Inner Control Arm Bushing Kit.
Features
- Material: The part is made of polyurethane.
- Install guide: An install guide comes in the box.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
Specifications
| Part Number | W63562 |
| Part Name | Control Arm Bushings |
| Vehicle | 2002-2010 Lexus SC430 |
| Chassis Code | Z40 |
| Bushing 1 Inner Diameter | 12.2 mm |
| Bushing 1 Outer Diameter | 32.2 mm |
| Bushing Quantity | 4 Bushings |
| Grade Type | Regular |
| Inside Diameter | 14.3 mm |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 2 |
| Kit Contents | 4 Bushings, 2 Tubes |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Outside Diameter | 32.2 mm |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Fits inner position of rear toe arm (forward most rear link with ball joint in outer position) |
