Product Details

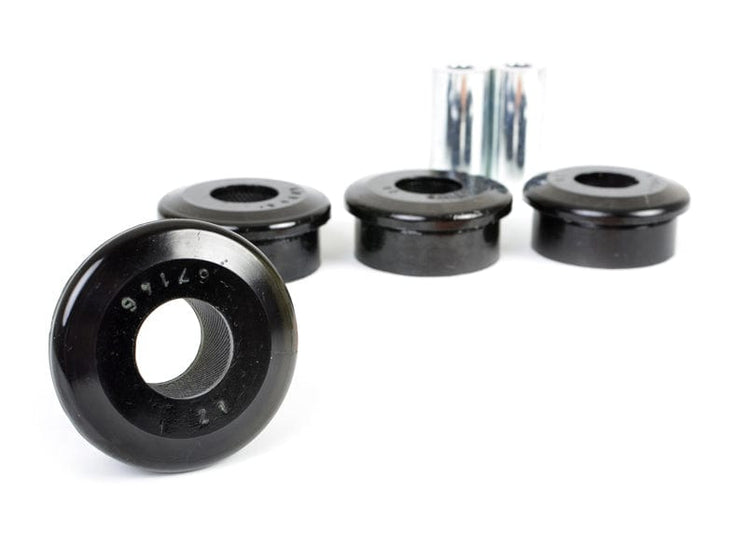

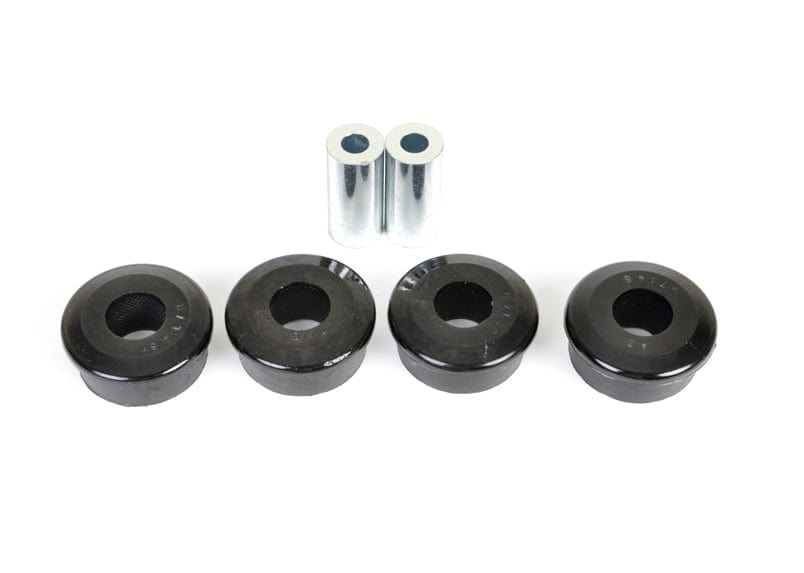

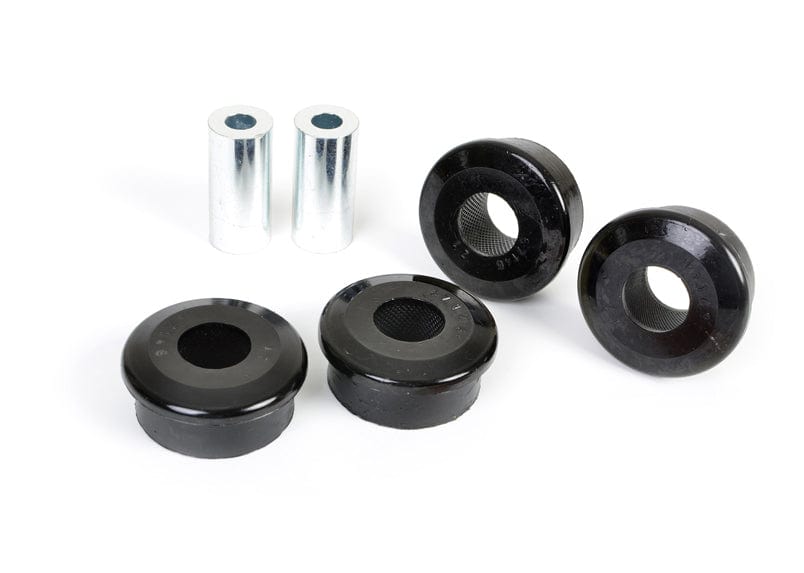

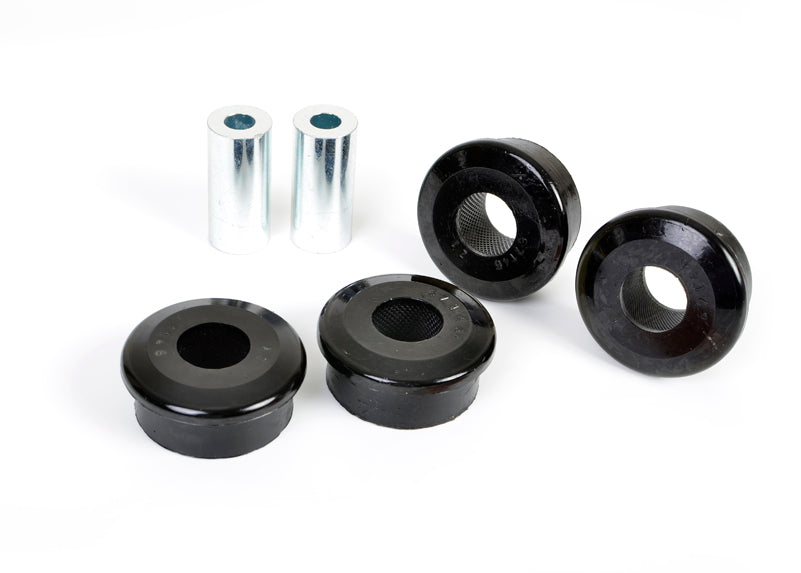

This Whiteline Rear Differential Bushings - Mount Support Outrigger fits the 2009-2011 Subaru Impreza WRX Premium (GE/GH/GR/GV). In the box: 4 bushings, 2 tubes, an install guide, and grease. Placement: rear. Whiteline part number: KDT905.
Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces.
Whiteline rates the install as difficult and lists about 4 hours. An alignment is required after installation. To go with it on the Impreza WRX Premium, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Rear Subframe Mount Bushing.
Features
- Finish: The metal parts are powder coated for durability.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Install guide: An install guide comes in the box.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
Specifications
| Part Number | KDT905 |
| Part Name | Differential Bushings |
| Vehicle | 2009-2011 Subaru Impreza WRX Premium |
| Drivetrain | AWD |
| Chassis Code | GE/GH/GR/GV |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 85 |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 4 Bushings, 2 Tubes, Install Guide, Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
