Product Details

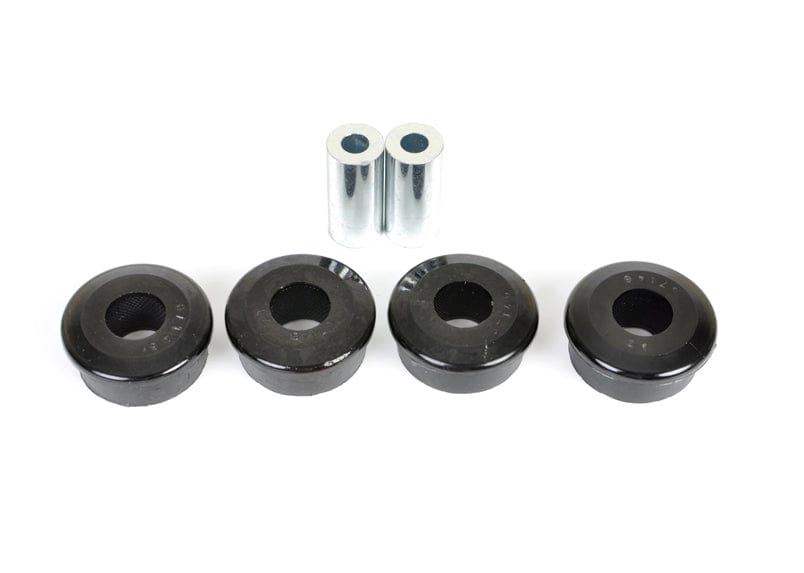

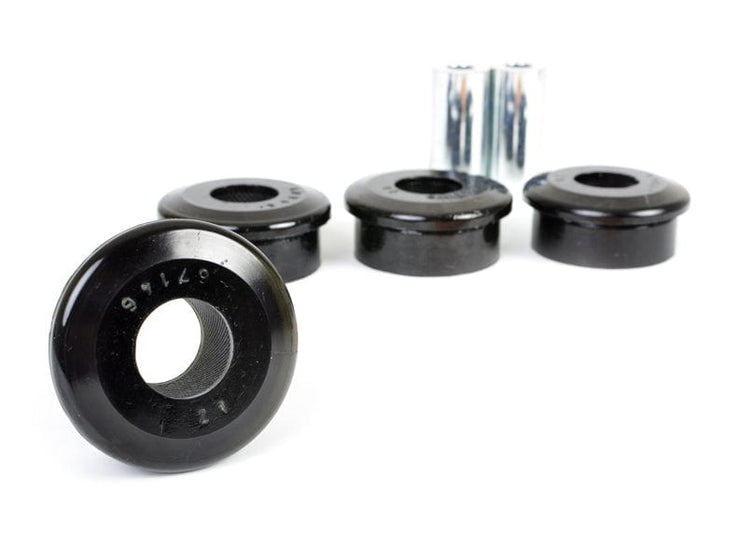

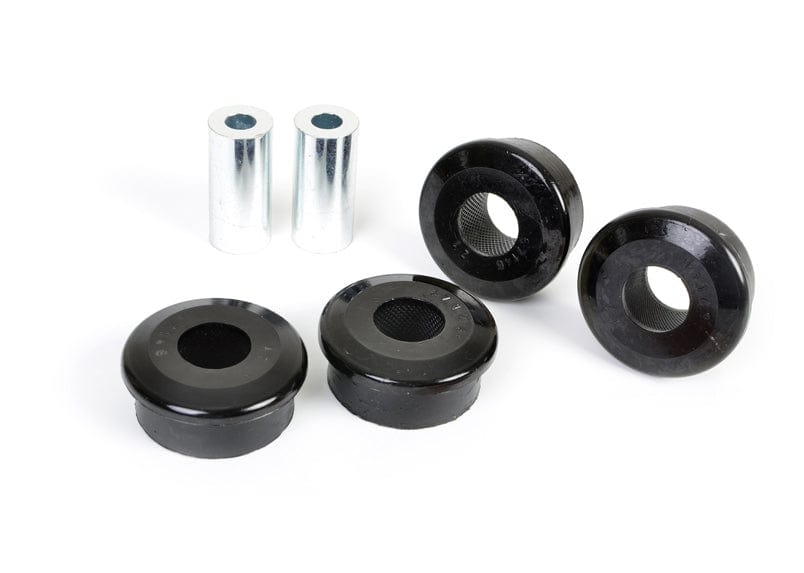

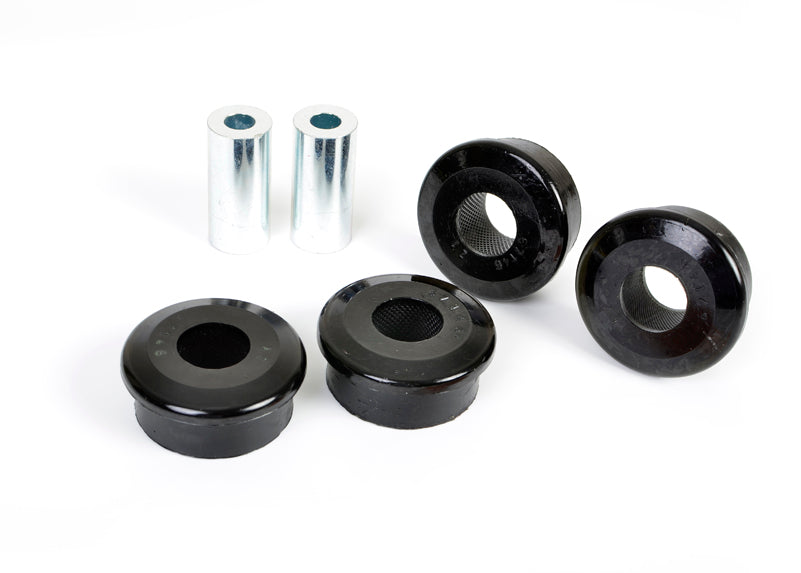

This Whiteline Rear Differential Bushings - Mount Support Outrigger fits the 2003 Subaru Legacy L SE (BE/BH/BL/BP). Included: 4 bushings, 2 tubes, an install guide, and grease. The part number is KDT905. Position: rear.
Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces.
Installation is rated difficult, with about 4 hours of work listed. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Legacy: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Finish: Powder coating covers the metal for protection against chips and rust.
- Corrosion protection: Metal parts are plated to resist rust over the long term.
- Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
- Grease: Supplied with molybdenum disulfide grease for extended service life.
- Install guide: Whiteline packs an install guide with it.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
Specifications
| Part Number | KDT905 |
| Part Name | Differential Bushings |
| Vehicle | 2003 Subaru Legacy L SE |
| Chassis Code | BE/BH/BL/BP |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 85 |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 4 Bushings, 2 Tubes, Install Guide, Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
