Product Details

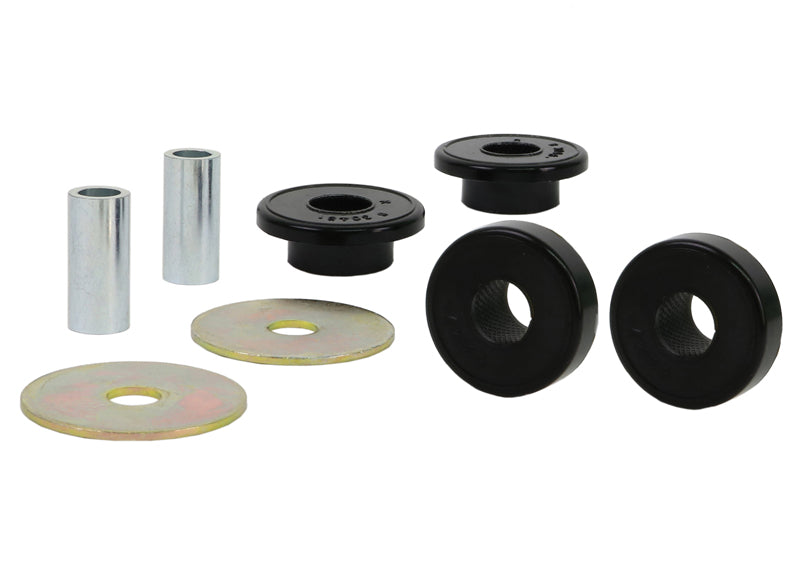

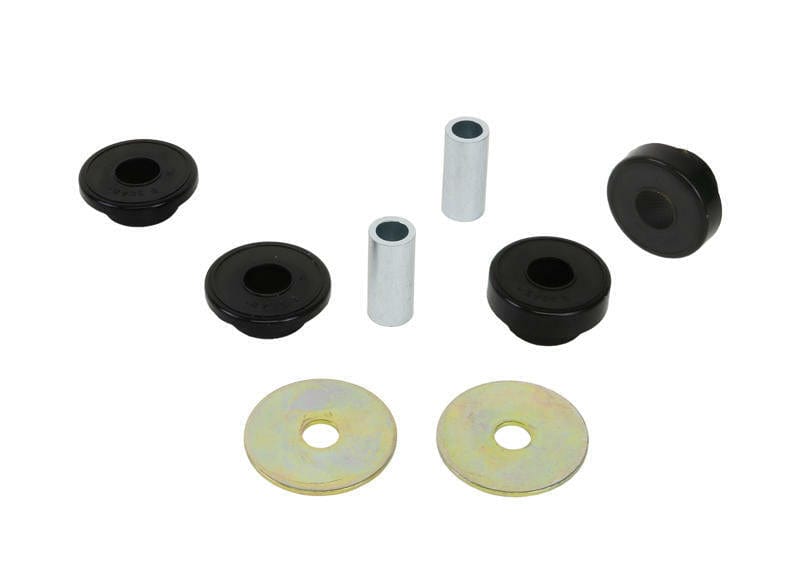

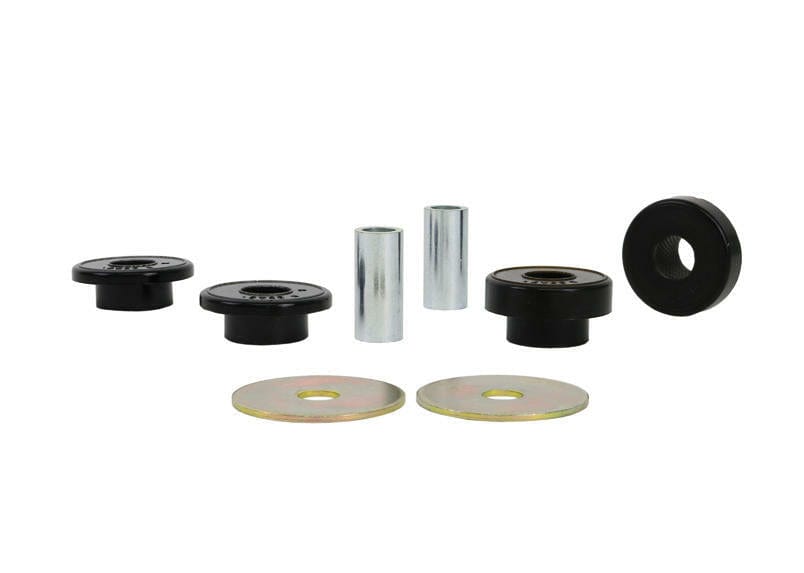

This Whiteline Rear Differential Mount Support Front Bushing fits the 1989-1990 Nissan 240SX XE (S13). You receive 4 bushings, 2 tubes, 2 washers, and grease. Whiteline part number: W93047. Placement: rear.
Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. The polyurethane used here deflects much less than the original rubber under the same load.
Expect a difficult job of about 4 hours. An alignment is required after installation. To go with it on the 240SX, see Rear Sway Bar Link, Front Sway Bar Washer Kit, and Front and Rear Sway Bar Kit.
Features
- Corrosion protection: Plated finish keeps rust off the hardware.
- Grease: Molybdenum disulfide grease is included to help the parts last.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
Specifications
| Part Number | W93047 |
| Part Name | Differential Mount Bushing |
| Vehicle | 1989-1990 Nissan 240SX XE |
| Chassis Code | S13 |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 85 |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 4 Bushings, 2 Tubes, 2 Washers, Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | - |
