Product Details

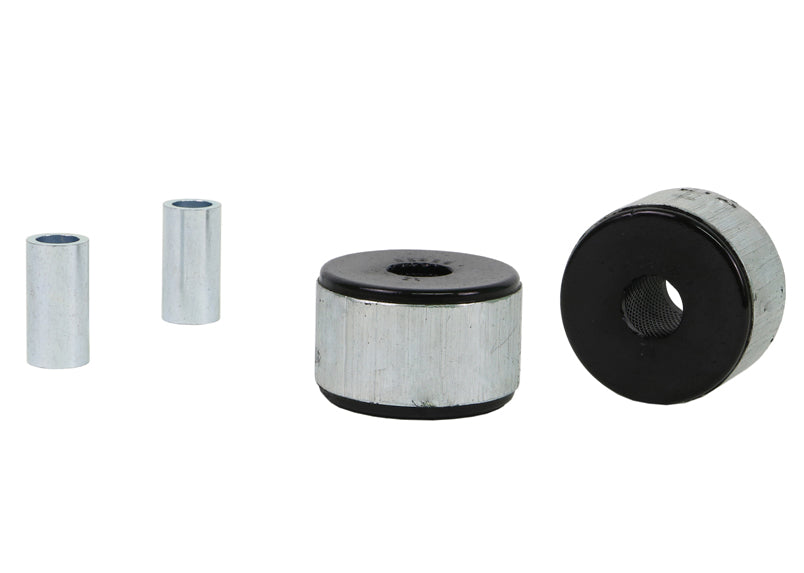

This Whiteline Rear Differential Mount Bushing Kit fits the 2003-2005 Mitsubishi Outlander XLS (CU). Position: rear. Order it as part number W92956. The kit contains 2 shell bushings, 2 tubes, and grease. Whiteline's note for this fit: Support bracket.
The differential is hung from the chassis on bushings that are soft for comfort. Under hard acceleration and braking they let it rock, so power reaches the wheels a moment late and the rear end can feel loose. A firmer bushing holds the differential more steadily, which sharpens throttle response. Polyurethane resists deflection far better than the soft rubber it replaces.
Expect a difficult job of about 4 hours. Get the car aligned once it is back on the ground. To go with it on the Outlander, see Front Control Arm Lower Inner Rear Bushing and 14mm Adjustable Front Camber Bolts.
Features
- Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Bonded design: Bonding adds durability in high-load use.
- Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
| Part Number | W92956 |
| Part Name | Differential Mount Bushing |
| Vehicle | 2003-2005 Mitsubishi Outlander XLS |
| Drivetrain | FWD/AWD |
| Chassis Code | CU |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 72 |
| Installation Difficulty | Difficult |
| Installation Time (hrs) | 4 |
| Kit Contents | 2 Shell Bushings, 2 Tubes, Grease |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | Yes |
| Notes | Support bracket |
