Product Details

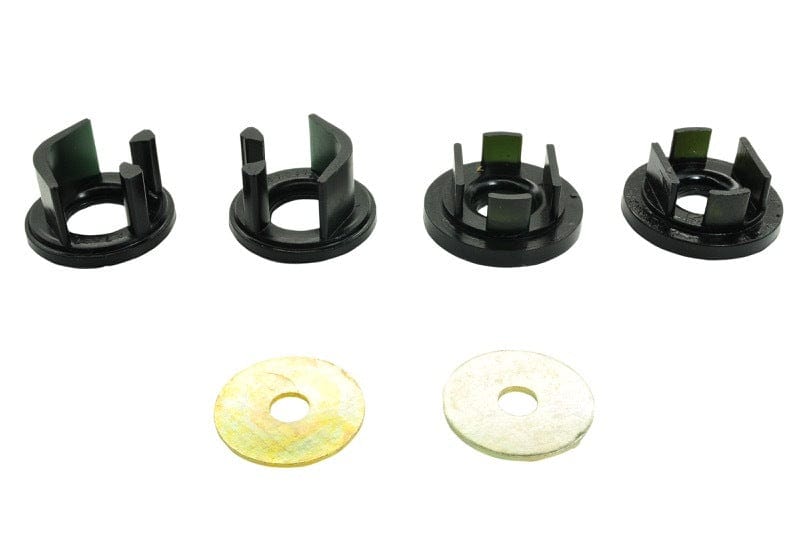

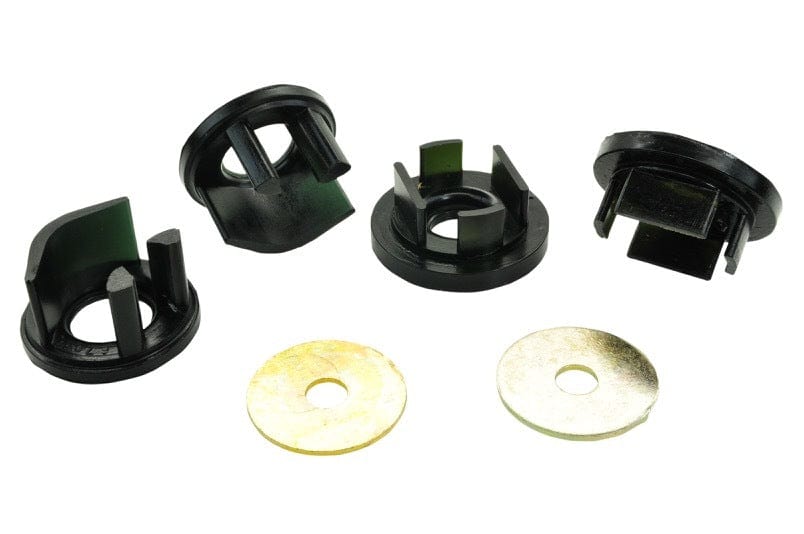

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2009-2011 Subaru Impreza WRX Premium (GE/GH/GR/GV). This part is for the rear of the vehicle. The part number is KDT903. In the box: 4 insert bushings, 2 washers, an install guide, and grease. Application note: Inserts: installs into voiding of original bushings, positive diff retention.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.

Whiteline rates the install as moderate and lists about 1.5 hours. No alignment is needed afterward. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Rear Subframe Mount Bushing for the Impreza WRX Premium.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Grease: Molybdenum disulfide grease is included to help the parts last.
Specifications
Part Number KDT903
Part Name Differential Bushings
Vehicle 2009-2011 Subaru Impreza WRX Premium
Drivetrain AWD
Chassis Code GE/GH/GR/GV
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 4 Insert Bushings, 2 Washers, Install Guide, Grease
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Inserts - installs into voiding of original bushings - positive diff retention

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruWRXAWDInserts - installs into voiding of original bushings - positive diff retention
2010SubaruWRXAWDInserts - installs into voiding of original bushings - positive diff retention
2011SubaruWRXAWDInserts - installs into voiding of original bushings - positive diff retention
