Product Details

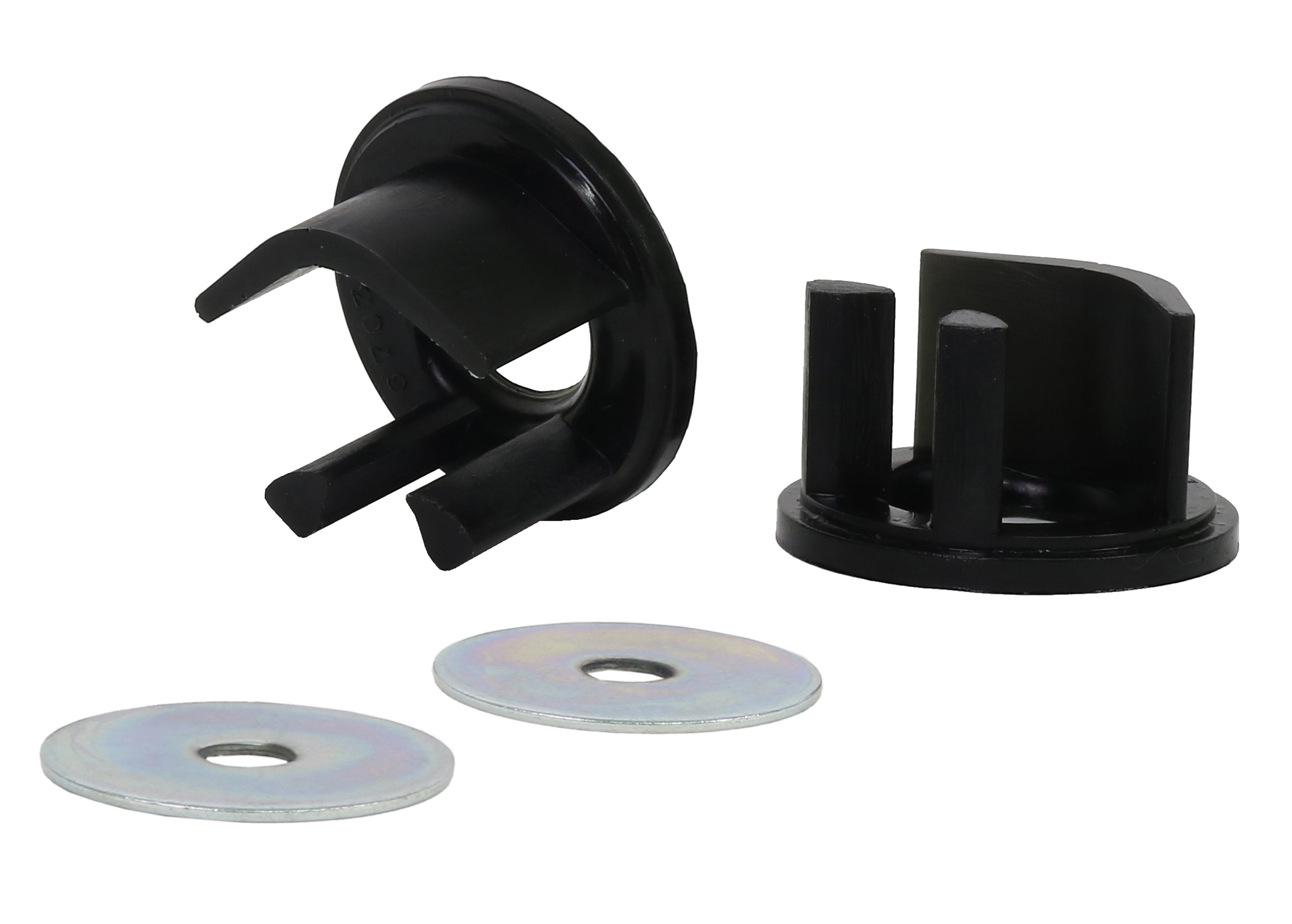

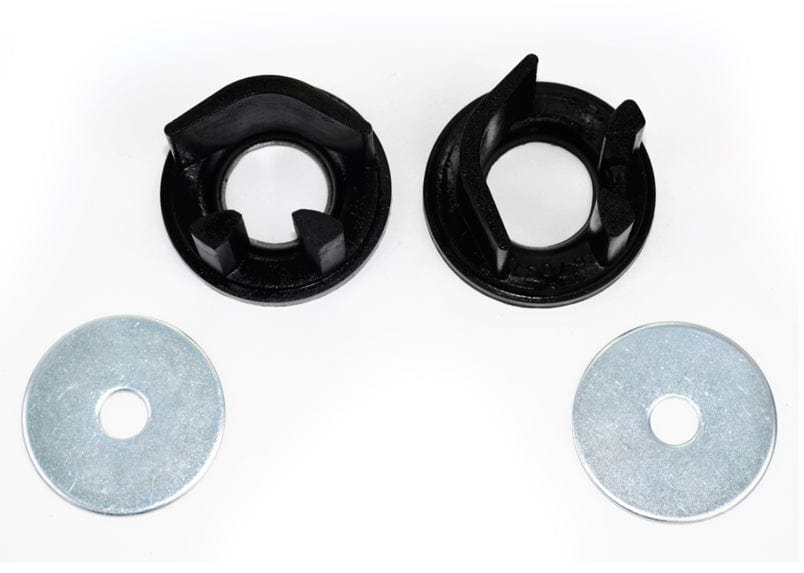

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2006 Subaru Outback R VDC Limited (BP/BR). In the box: 2 insert bushings and 2 washers. It goes on the rear of the vehicle. Chassis code: BP/BR. Order it as part number KDT927. Whiteline's note for this fit: Positive diff retention: inserts only.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.

Whiteline rates the install as moderate and lists about 1.5 hours. A wheel alignment is not required. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Insert design: Designed to be used with the factory bushing left in place.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
  • Install guide: An install guide comes in the box.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
Specifications
Part Number KDT927
Part Name Differential Bushings
Vehicle 2006 Subaru Outback R VDC Limited
Chassis Code BP/BR
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 2 Insert Bushings, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Positive diff retention - inserts only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2006SubaruOutbackAWDPositive diff retention - inserts only
