Product Details

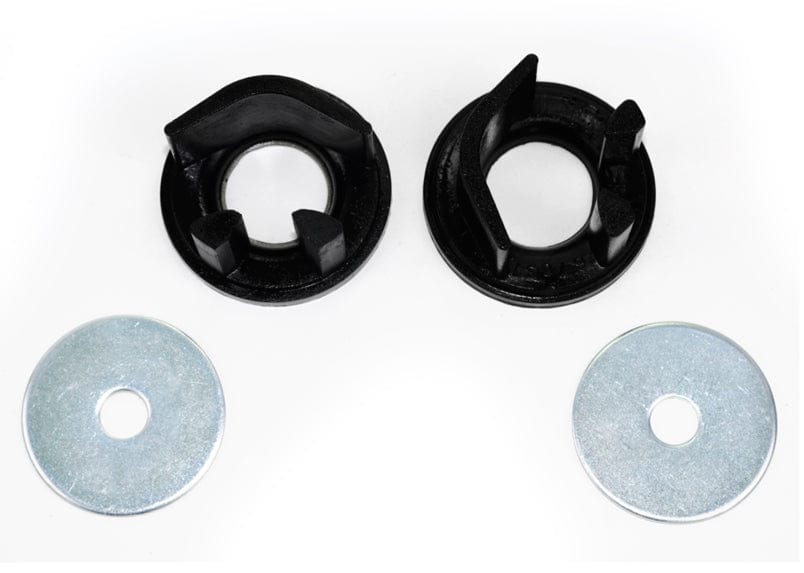

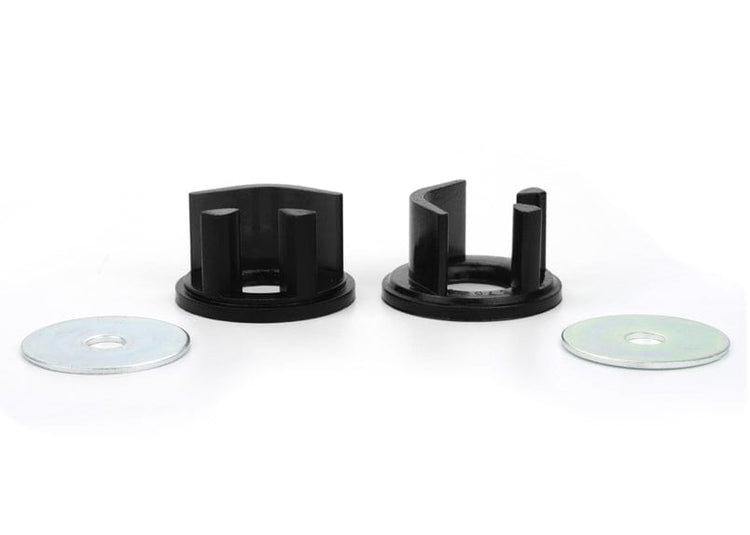

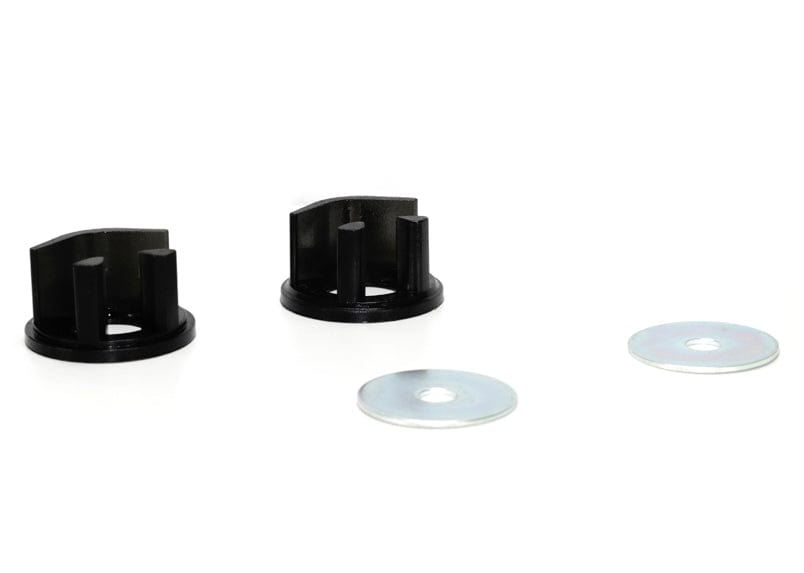

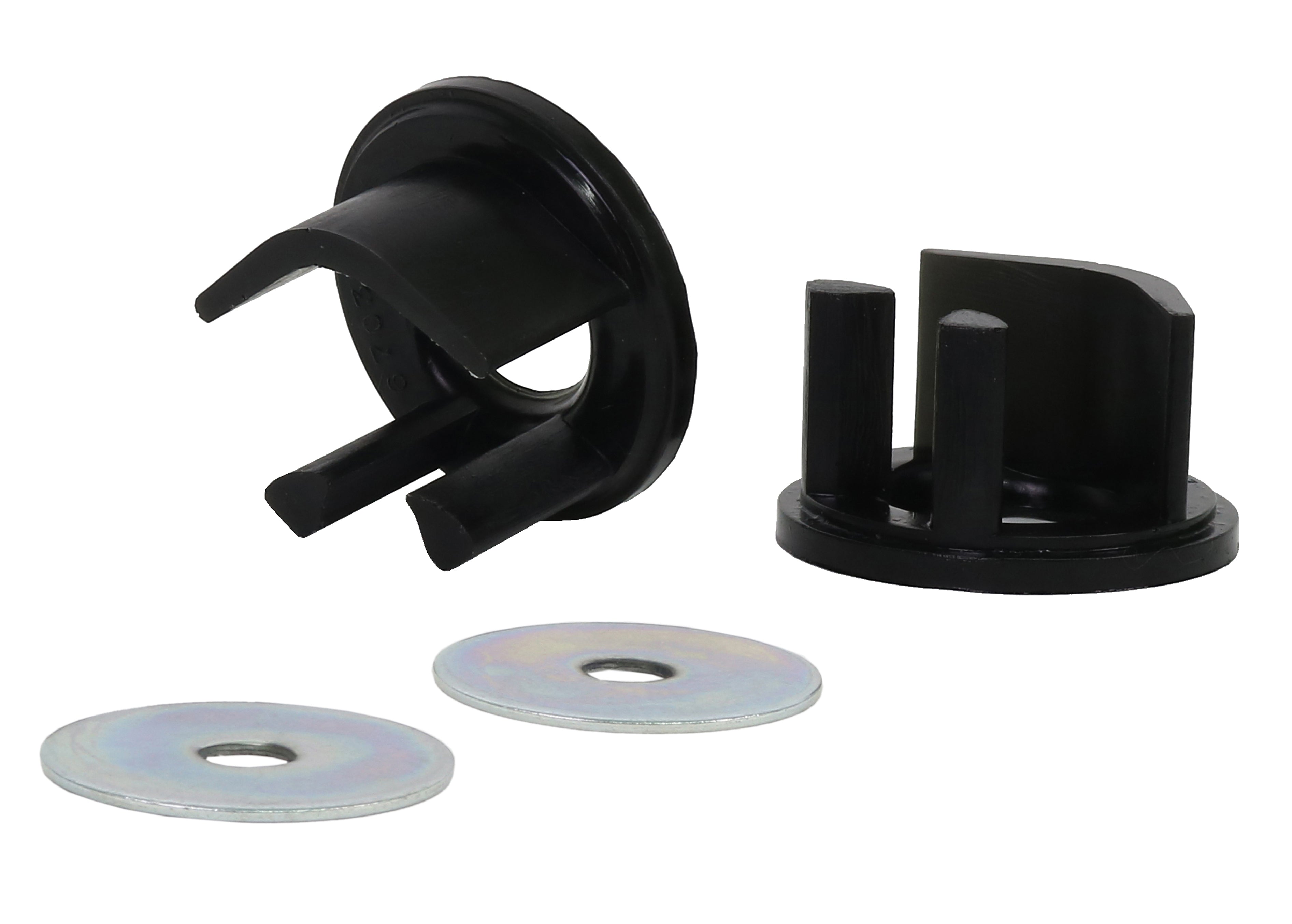

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2006-2009 Subaru Legacy GT spec.B (BL/BP/BM/BR). Order it as part number KDT927. Whiteline's note for this fit: Positive diff retention: inserts only. You receive 2 insert bushings and 2 washers. It goes on the rear of the vehicle.
Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.
Expect a moderate job of about 1.5 hours. It does not require a wheel alignment. We also list Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit for the Legacy.
Features
- Grease: Moly grease is supplied to prolong the life of the parts.
- Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
- Install guide: Written install instructions are included with the part.
Specifications
| Part Number | KDT927 |
| Part Name | Differential Bushings |
| Vehicle | 2006-2009 Subaru Legacy GT spec.B |
| Chassis Code | BL/BP/BM/BR |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 85 |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 2 Insert Bushings, 2 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Positive diff retention - inserts only |
