Product Details

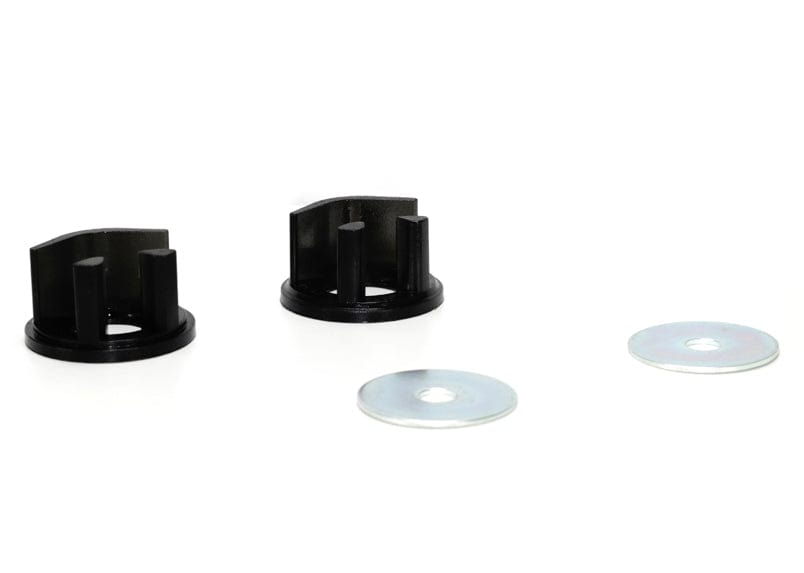

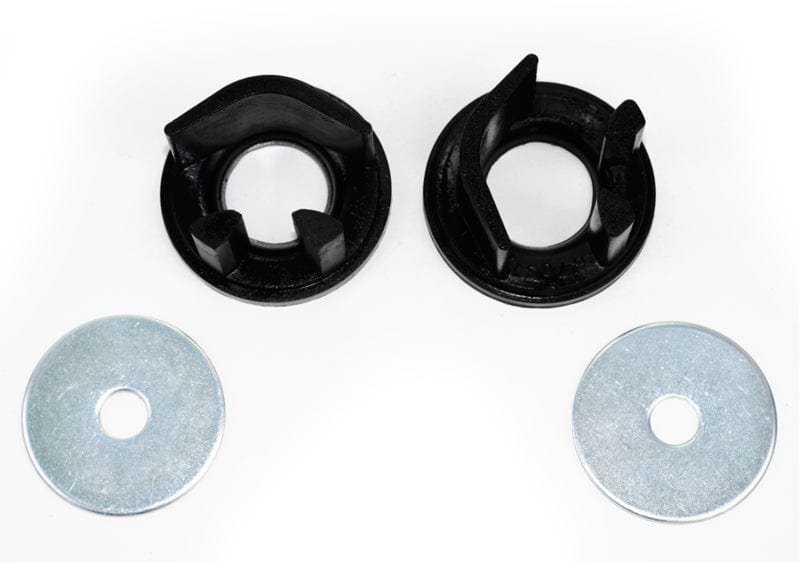

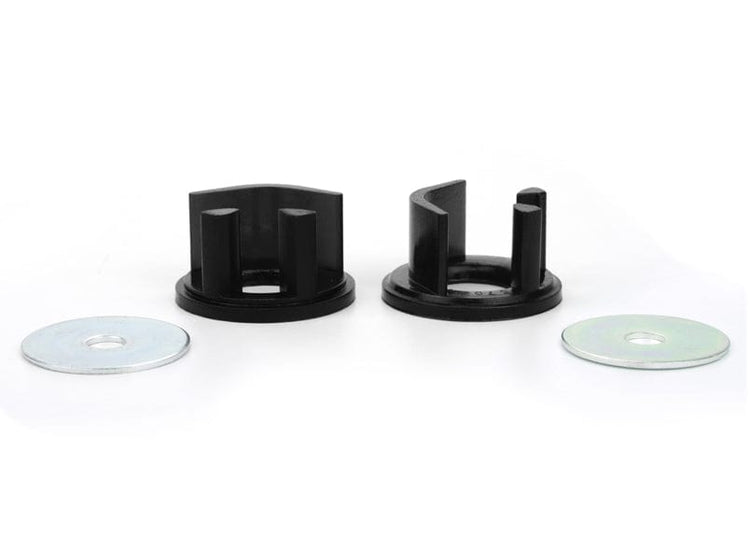

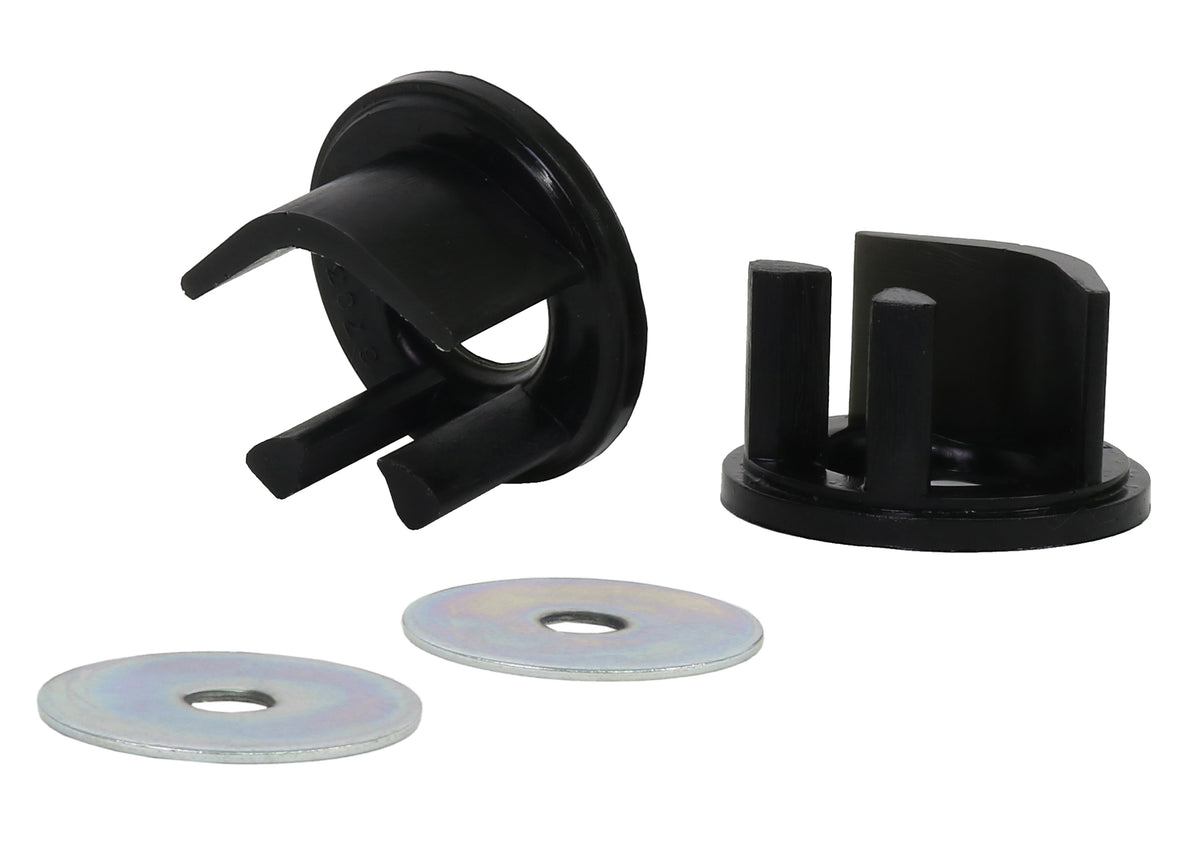

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2005-2006 Subaru Outback R, XT (BP). Application note: Positive diff retention: inserts only. Included: 2 insert bushings and 2 washers. Placement: rear. Part number KDT927.
The differential is hung from the chassis on bushings that are soft for comfort. Under hard acceleration and braking they let it rock, so power reaches the wheels a moment late and the rear end can feel loose. A firmer bushing holds the differential more steadily, which sharpens throttle response. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.
Whiteline rates the install as moderate and lists about 1.5 hours. It does not require a wheel alignment. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Grease: Moly grease is supplied to prolong the life of the parts.
- Finish: The metal is powder coated, which resists corrosion and wear.
- Insert design: The inserts go into the original bushing rather than replacing it.
- Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
- Bushing material: Polyurethane bushings flex far less than rubber ones.
- Corrosion protection: Rust protection comes from plating on the metal parts.
Specifications
| Part Number | KDT927 |
| Part Name | Differential Bushings |
| Vehicle | 2005-2006 Subaru Outback R, XT |
| Chassis Code | BP |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 85 |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 2 Insert Bushings, 2 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Positive diff retention - inserts only |
