Product Details

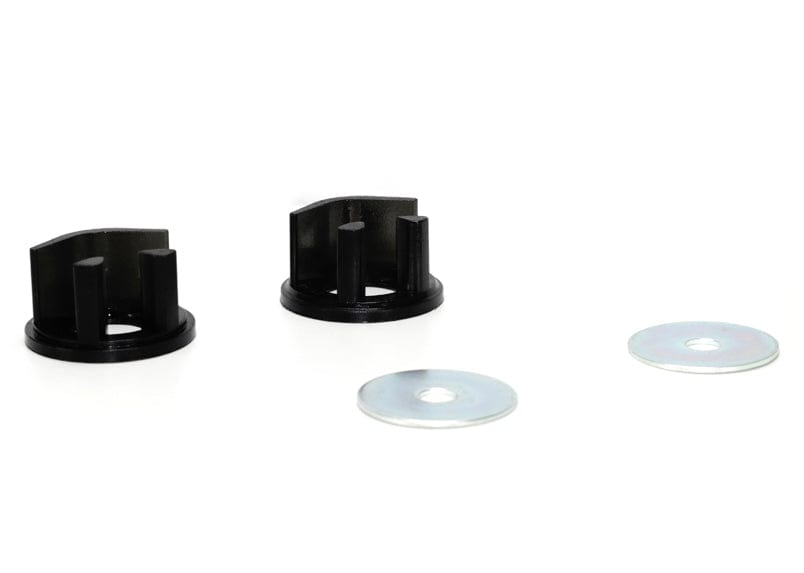

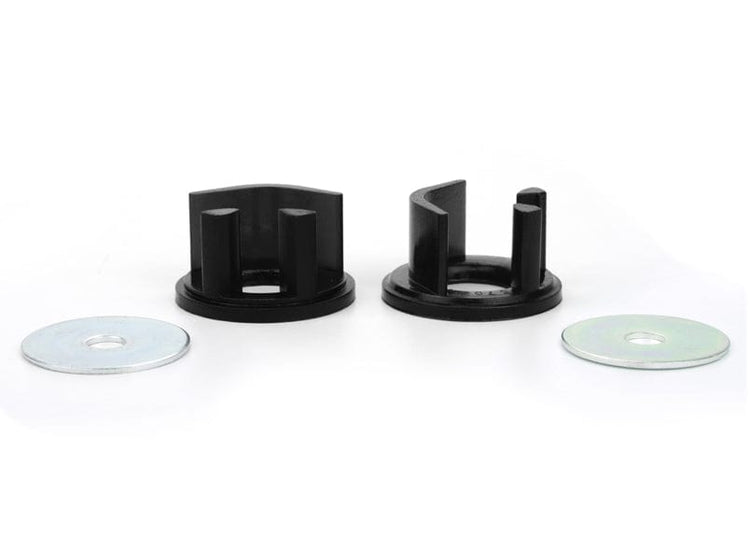

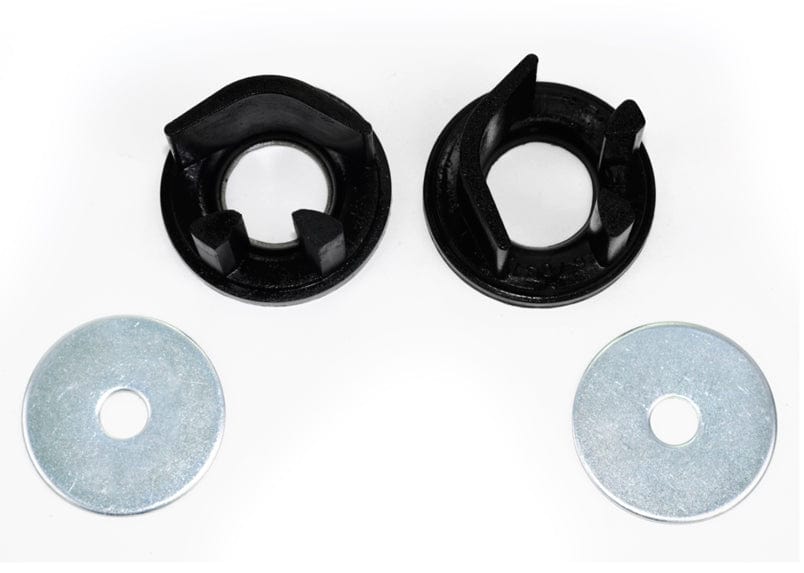

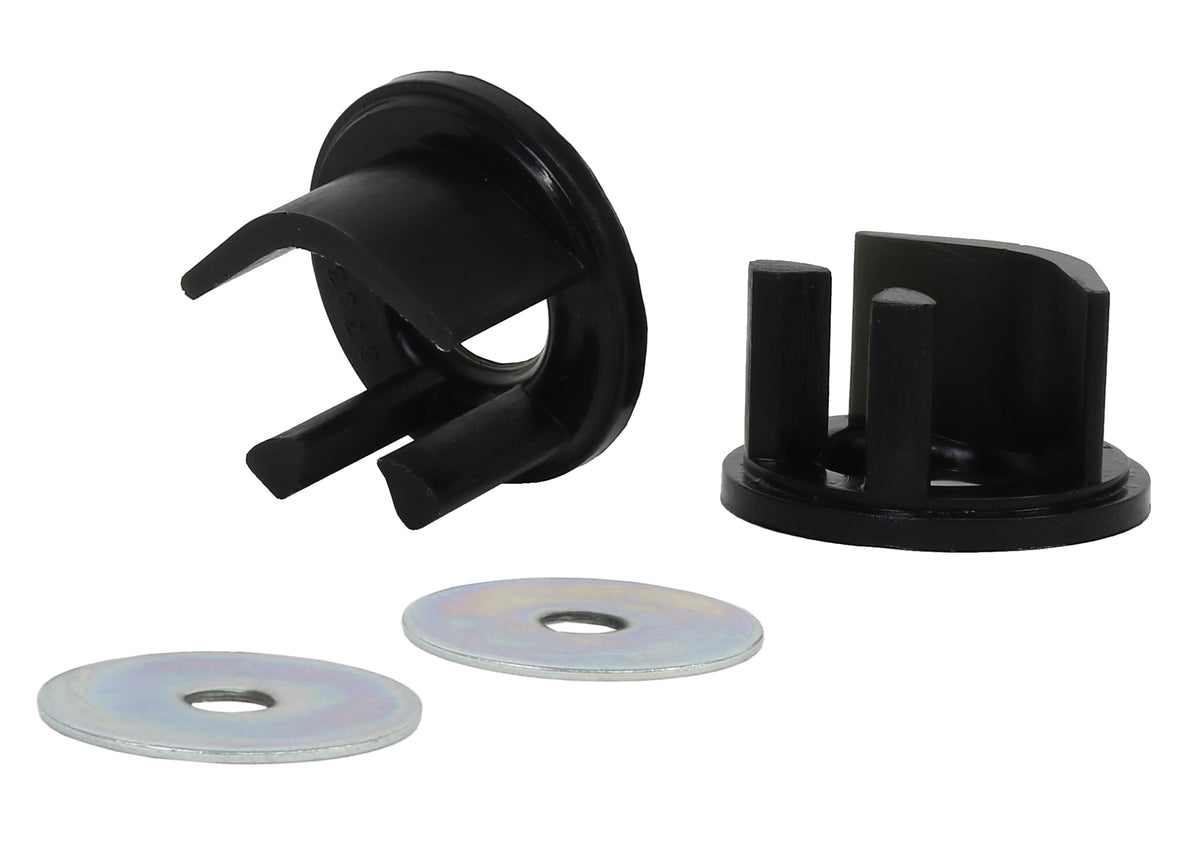

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2002-2004 Subaru Outback H6 (BE/BH/BP). Order it as part number KDT927. Chassis code: BE/BH/BP. Placement: rear. Application note: Positive diff retention: inserts only. In the box: 2 insert bushings and 2 washers.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.

Expect a moderate job of about 1.5 hours. No alignment is needed afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Grease: Molybdenum disulfide grease comes with it for a longer service life.
  • Finish: The metal is powder coated, which resists corrosion and wear.
  • Install guide: An install guide comes in the box.
  • Bushing compound: The bushing material stands up to oil, grease, ozone, and weather.
  • Corrosion protection: The hardware is plated to stand up to road conditions.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
Specifications
Part Number KDT927
Part Name Differential Bushings
Vehicle 2002-2004 Subaru Outback H6
Chassis Code BE/BH/BP
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 2 Insert Bushings, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Positive diff retention - inserts only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruOutbackAWDPositive diff retention - inserts only
2003SubaruOutbackAWDPositive diff retention - inserts only
2004SubaruOutbackAWDPositive diff retention - inserts only
