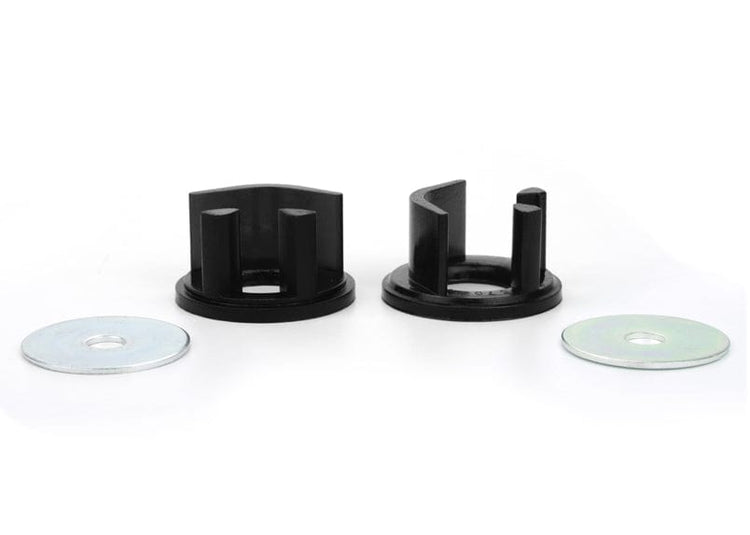

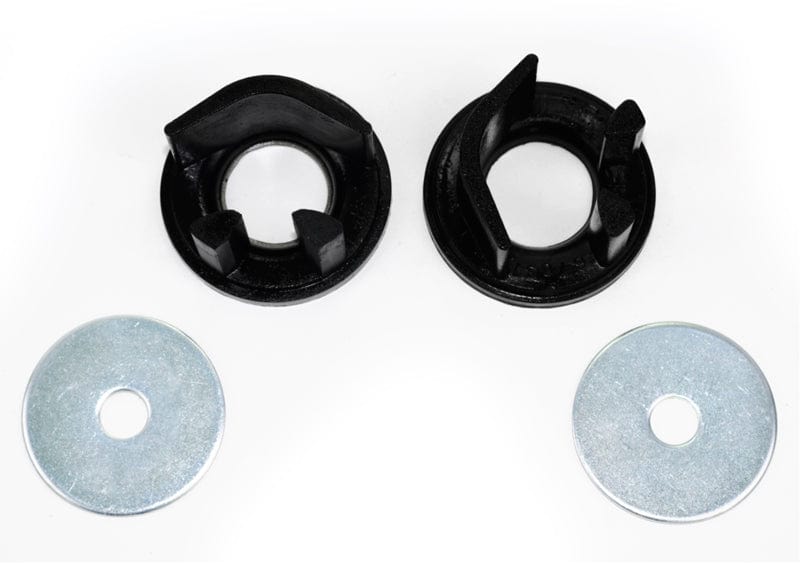

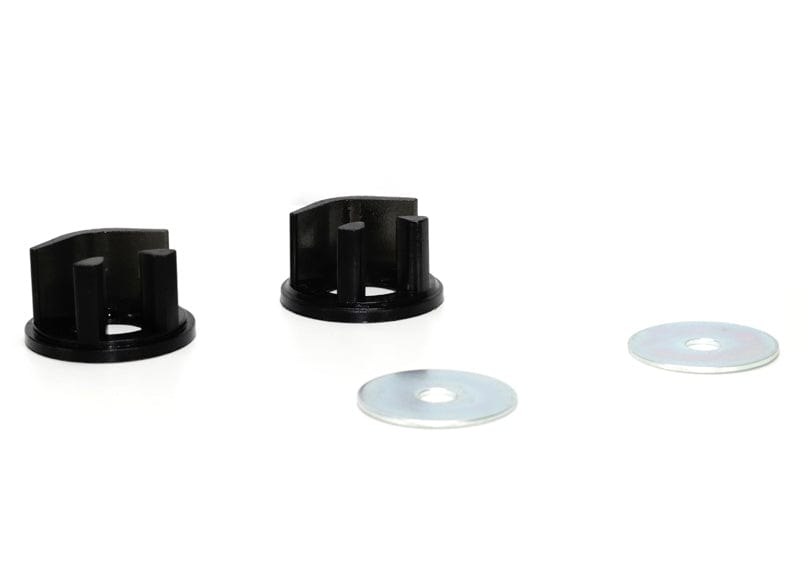

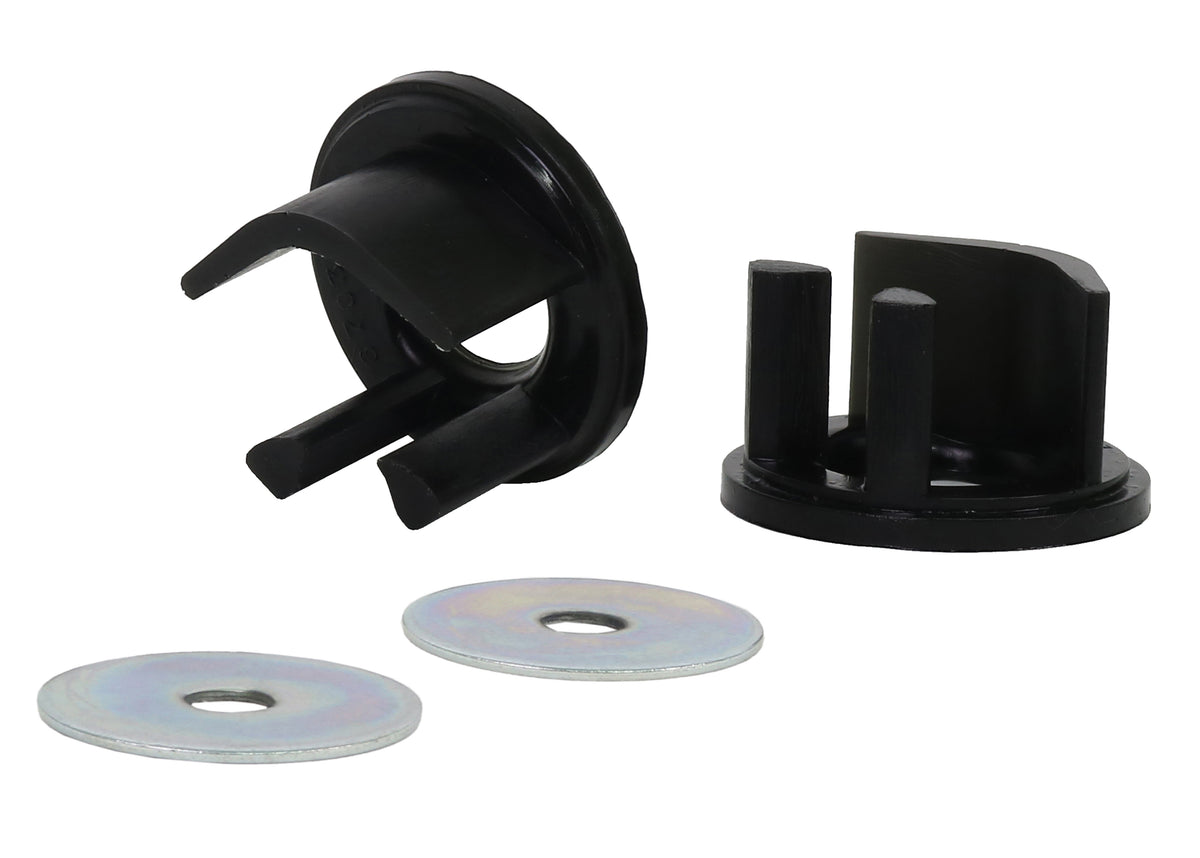

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2001-2004 Subaru Outback L.L. Bean (BE/BH/BP). Included: 2 insert bushings and 2 washers. The part number is KDT927. This part is for the rear of the vehicle. Application note: Positive diff retention: inserts only.

Holding the differential still is about predictability. Rubber that is too soft lets it twist and move as load comes on and off, so the car squats and lurches a little more than it needs to. A firmer mount keeps it where it should be. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.

Installation is rated moderate, with about 1.5 hours of work listed. It does not require a wheel alignment. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Bushing compound: A synthetic elastomer compound resists oil, grease, ozone, and weathering.
  • Insert design: Designed to be used with the factory bushing left in place.
Specifications
Part Number KDT927
Part Name Differential Bushings
Vehicle 2001-2004 Subaru Outback L.L. Bean
Drivetrain AWD
Chassis Code BE/BH/BP
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 2 Insert Bushings, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Positive diff retention - inserts only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001SubaruOutbackAWDPositive diff retention - inserts only
2002SubaruOutbackAWDPositive diff retention - inserts only
2003SubaruOutbackAWDPositive diff retention - inserts only
2004SubaruOutbackAWDPositive diff retention - inserts only
