Product Details

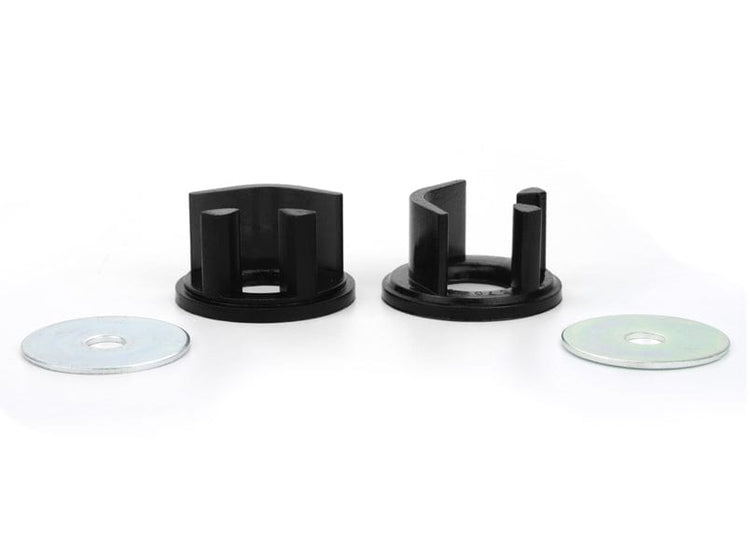

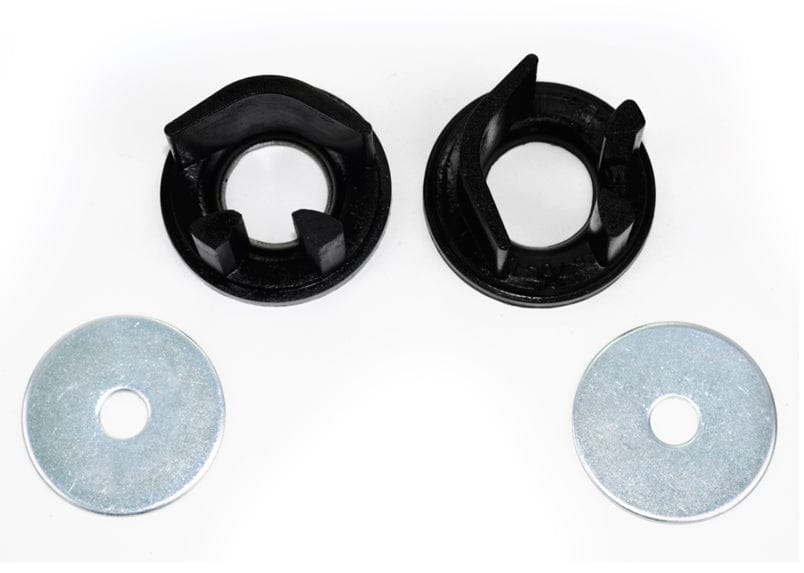

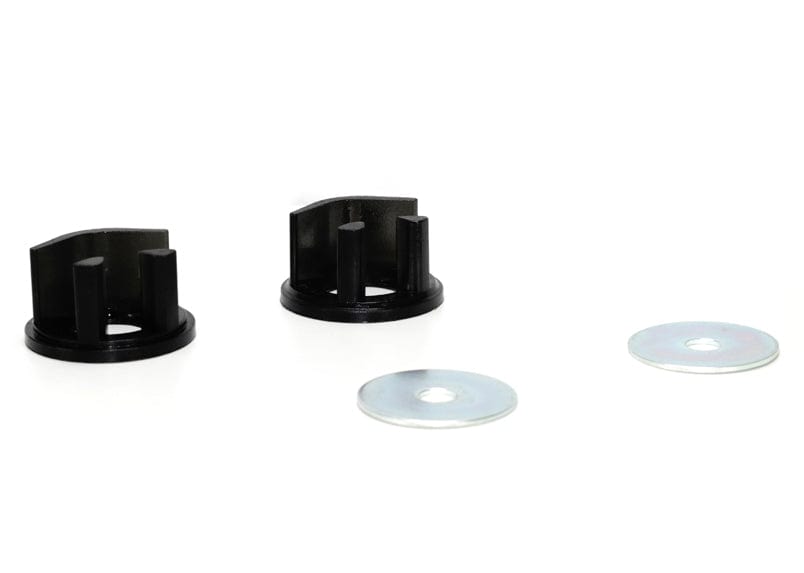

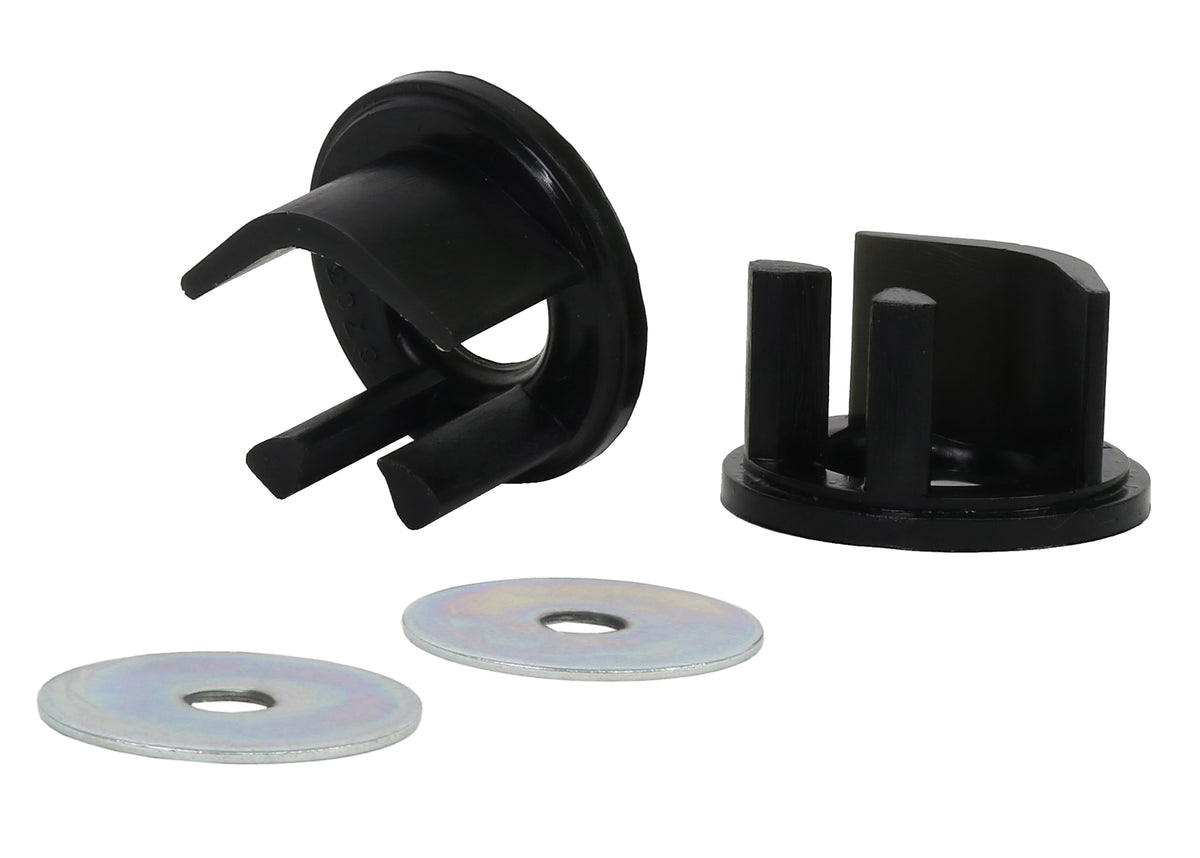

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2001-2003 Subaru Outback VDC (BE/BH). The part number is KDT927. It goes on the rear of the vehicle. You receive 2 insert bushings and 2 washers. Whiteline's note for this fit: Positive diff retention: inserts only.

The differential is hung from the chassis on bushings that are soft for comfort. Under hard acceleration and braking they let it rock, so power reaches the wheels a moment late and the rear end can feel loose. A firmer bushing holds the differential more steadily, which sharpens throttle response. Polyurethane resists deflection far better than the soft rubber it replaces. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.

Installation is rated moderate, with about 1.5 hours of work listed. It does not require a wheel alignment. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Steering Rack And Pinion Mount Bushing.

Features

  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bonded design: A bonded design adds strength for high load applications.
  • Install guide: Written install instructions are included with the part.
  • Insert design: The inserts go into the original bushing rather than replacing it.
Specifications
Part Number KDT927
Part Name Differential Bushings
Vehicle 2001-2003 Subaru Outback VDC
Drivetrain AWD
Chassis Code BE/BH
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 2 Insert Bushings, 2 Washers
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Positive diff retention - inserts only

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2001SubaruOutbackAWDPositive diff retention - inserts only
2002SubaruOutbackAWDPositive diff retention - inserts only
2003SubaruOutbackAWDPositive diff retention - inserts only
