Product Details

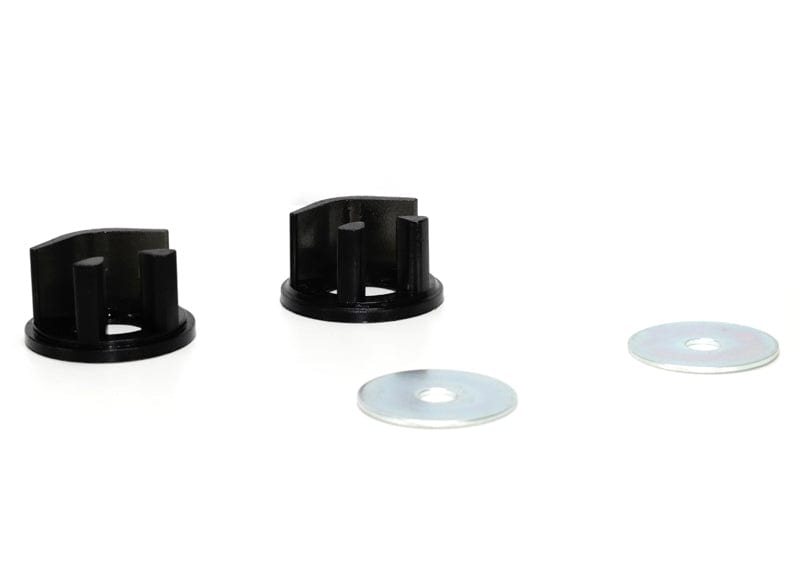

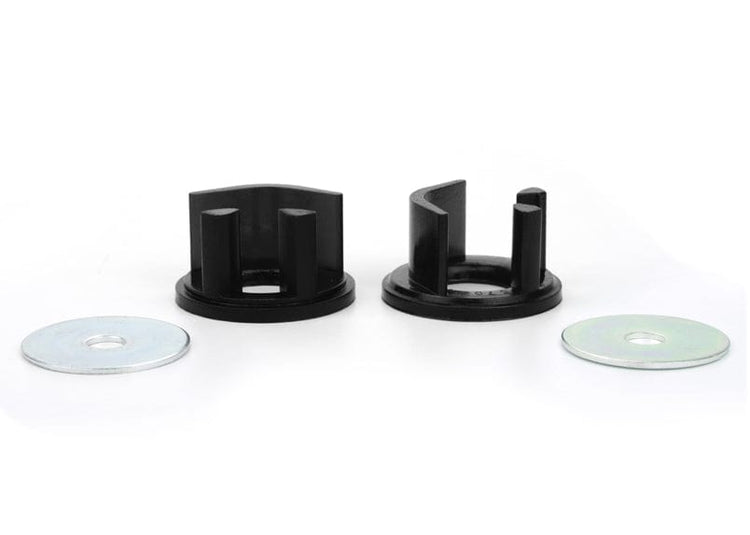

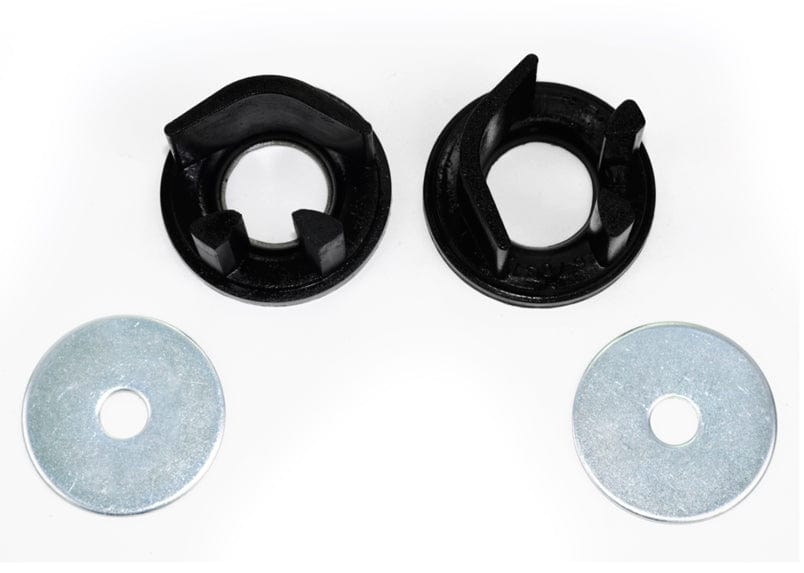

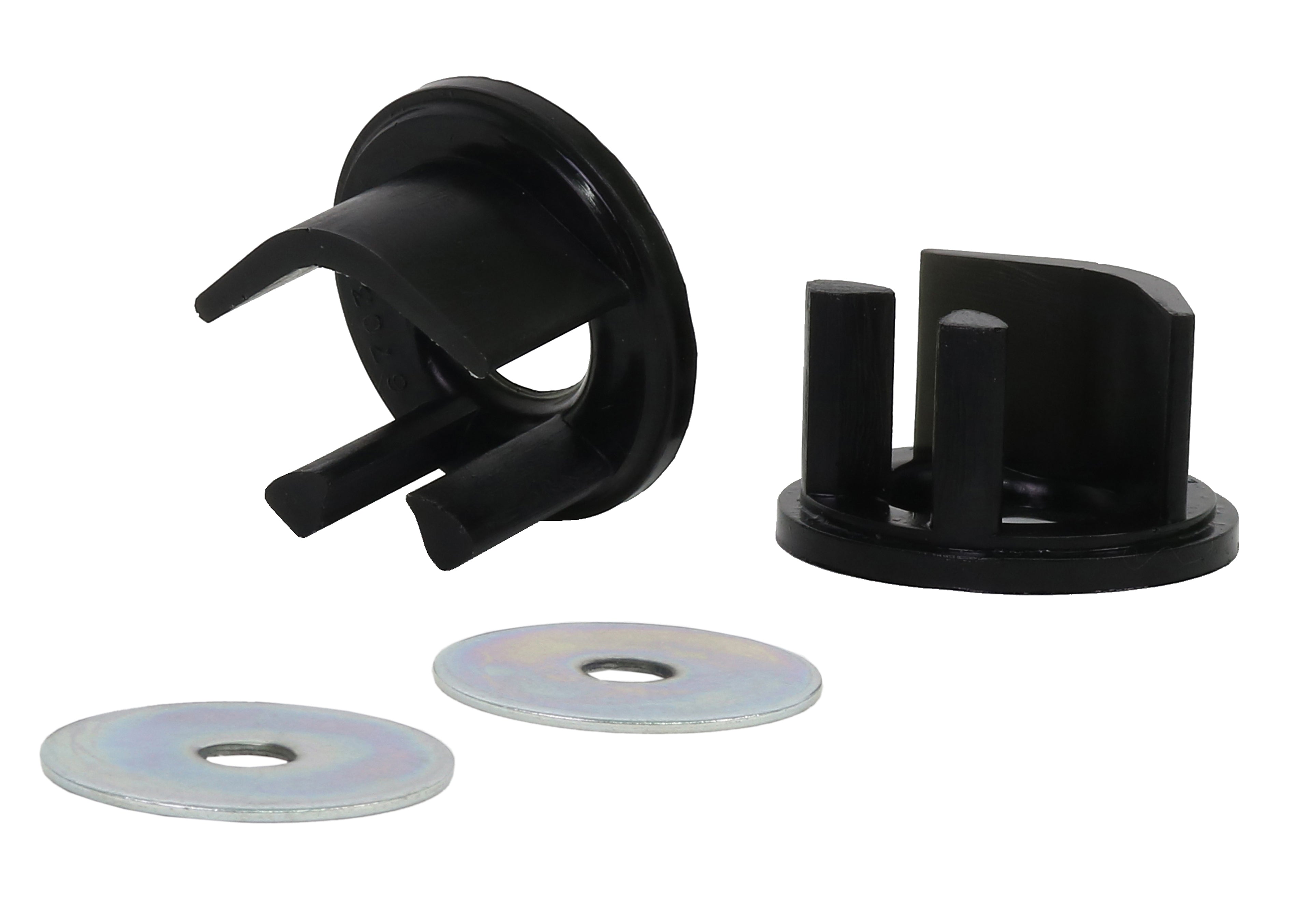

These Whiteline Rear Differential Bushings - Mount In Cradle Inserts fit the 2000-2005 Subaru Outback Limited (BE/BH/BP). Order it as part number KDT927. Placement: rear. In the box: 2 insert bushings and 2 washers. Application note: Positive diff retention: inserts only.
Holding the differential still is about predictability. Rubber that is too soft lets it twist and move as load comes on and off, so the car squats and lurches a little more than it needs to. A firmer mount keeps it where it should be. The polyurethane used here deflects much less than the original rubber under the same load. This version is an insert design, made to fit into the voids of the original bushing instead of replacing the whole mount.
Installation is rated moderate, with about 1.5 hours of work listed. It does not require a wheel alignment. Other Whiteline parts we list for the Outback: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.
Features
- Corrosion protection: The hardware is plated to stand up to road conditions.
- Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
- Install guide: Step-by-step installation instructions come with it.
- Finish: Powder coat finish guards the metal against chips and corrosion.
- Bushing material: Made of polyurethane, which resists deflection better than soft rubber.
- Grease: Moly grease is supplied to prolong the life of the parts.
Specifications
| Part Number | KDT927 |
| Part Name | Differential Bushings |
| Vehicle | 2000-2005 Subaru Outback Limited |
| Drivetrain | AWD |
| Chassis Code | BE/BH/BP |
| Bushing Color | Black |
| Bushing Material | Polyurethane |
| Color | Black |
| Durometer | 85 |
| Grade Type | Performance |
| Installation Difficulty | Moderate |
| Installation Time (hrs) | 1.5 |
| Kit Contents | 2 Insert Bushings, 2 Washers |
| Material | Polyurethane |
| Mounting Hardware Included | No |
| Universal or Specific Fit | Specific Fit |
| Vehicle Placement | Rear |
| Wheel Alignment Required | No |
| Notes | Positive diff retention - inserts only |
