Product Details

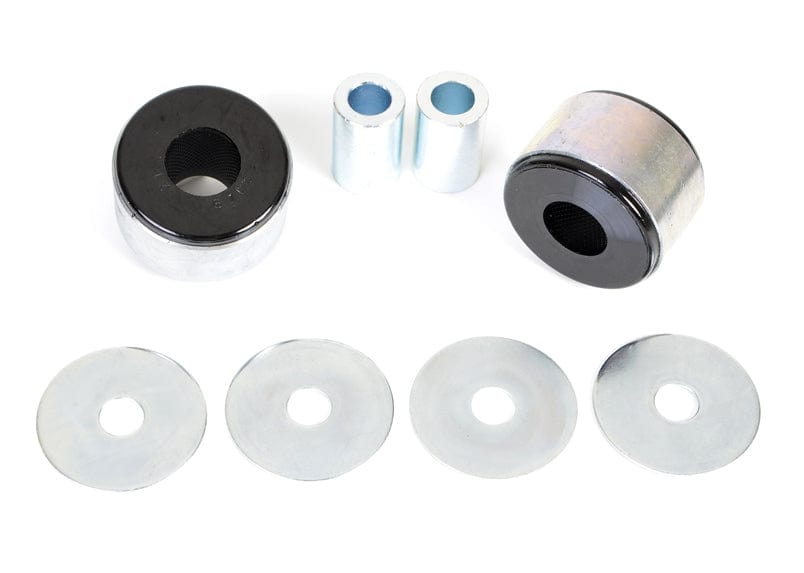

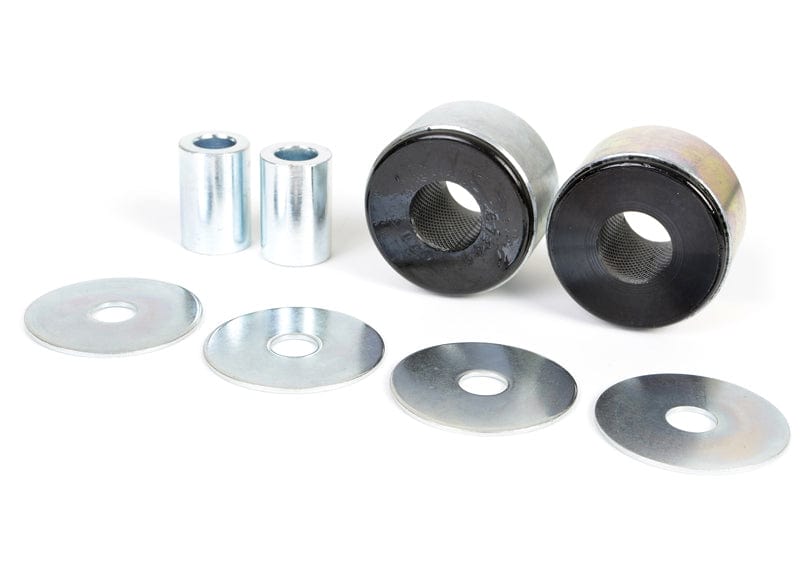

This Whiteline Rear Differential Bushings - Mount In Cradle fits the 2009 Subaru Forester XT (SH). Included: 2 shell bushings, 2 tubes, 4 washers, an install guide, and grease. Position: rear. Whiteline part number: KDT906.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. The polyurethane used here deflects much less than the original rubber under the same load.

Expect a difficult job of about 4 hours. Get the car aligned once it is back on the ground. Other Whiteline parts we list for the Forester: Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Adjustable Sway Bar Vehicle Link Kit.

Features

  • Grease: Molybdenum disulfide grease is included to help the parts last.
  • Bushing material: The bushing material is polyurethane, a firmer choice than rubber.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Finish: Powder coat finish guards the metal against chips and corrosion.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
  • Install guide: Whiteline packs an install guide with it.
Specifications
Part Number KDT906
Part Name Differential Bushings
Vehicle 2009 Subaru Forester XT
Chassis Code SH
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 2 Shell Bushings, 2 Tubes, 4 Washers, Install Guide, Grease
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive diff retention OD = 60mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2009SubaruForesterAWDPositive diff retention OD = 60mm
