Product Details

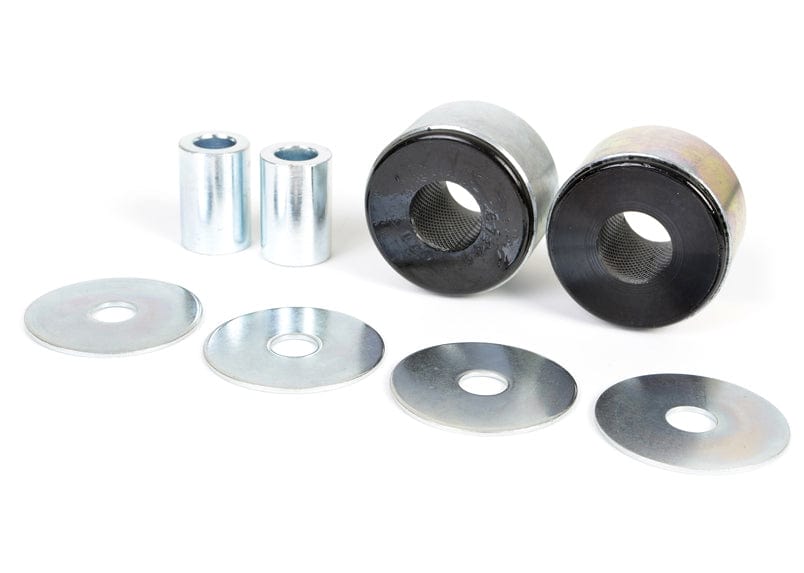

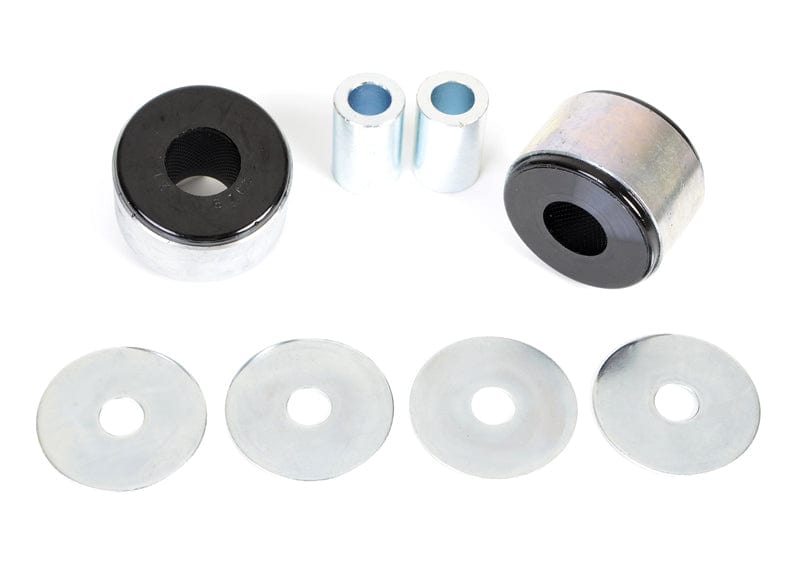

This Whiteline Rear Differential Bushings - Mount In Cradle fits the 2005-2009 Subaru Outback XT Limited (BP/BR). Whiteline part number: KDT906. Position: rear. In the box: 2 shell bushings, 2 tubes, 4 washers, an install guide, and grease.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as difficult and lists about 4 hours. Plan on a wheel alignment afterward. To go with it on the Outback, see Adjustable Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front and Rear Sway Bar Kit.

Features

  • Finish: Powder coating covers the metal for protection against chips and rust.
  • Install guide: Whiteline packs an install guide with it.
  • Bonded design: The bushing is bonded for strength where loads are highest.
  • Self-lubricating: The bushing carries its own grease supply in internal reservoirs, so it keeps moving freely.
  • Corrosion protection: Metal parts are plated to resist rust over the long term.
  • Bushing material: Polyurethane bushings flex far less than rubber ones.
Specifications
Part Number KDT906
Part Name Differential Bushings
Vehicle 2005-2009 Subaru Outback XT Limited
Chassis Code BP/BR
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 85
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 2 Shell Bushings, 2 Tubes, 4 Washers, Install Guide, Grease
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Positive diff retention OD = 60mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2005SubaruOutbackAWDPositive diff retention OD = 60mm
2006SubaruOutbackAWDPositive diff retention OD = 60mm
2007SubaruOutbackAWDPositive diff retention OD = 60mm
2008SubaruOutbackAWDPositive diff retention OD = 60mm
2009SubaruOutbackAWDPositive diff retention OD = 60mm
