Product Details

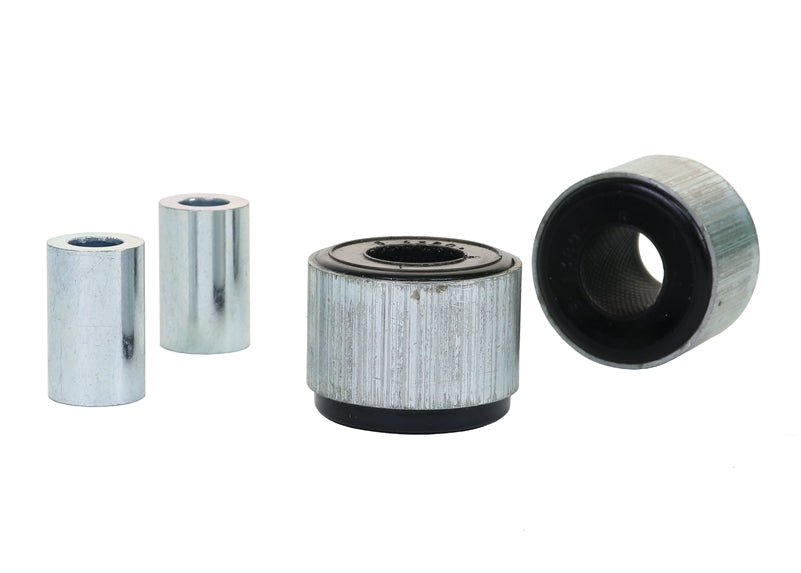

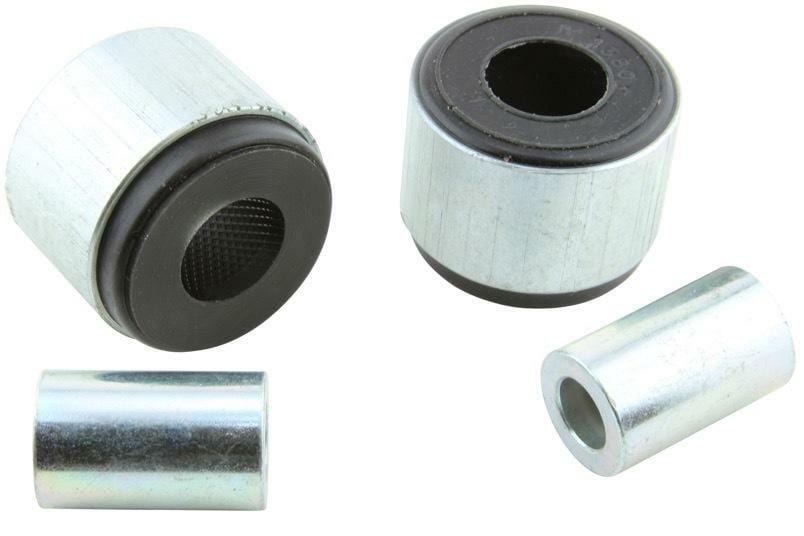

This Whiteline Rear Differential Cradle Bushing fits the 2003-2005 Subaru Forester XS (SG). In the box: 2 shell bushings, 2 tubes, and grease. Whiteline's note for this fit: Rear mount. Part number W91380. Position: rear.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as difficult and lists about 4 hours. Get the car aligned once it is back on the ground. To go with it on the Forester, see 14mm Adjustable Front Camber Bolts, Front and Rear Sway Bar Kit, and Front Strut Tower Brace Quick Release Kit.

Features

  • Corrosion protection: A protective plating covers the metal components to guard against corrosion.
  • Finish: The metal parts are powder coated for durability.
  • Bushing material: Polyurethane is firmer than the factory rubber, so it deflects less under load.
  • Self-lubricating: Internal grease reservoirs keep the bushing lubricated as it works.
  • Grease: Supplied with molybdenum disulfide grease for extended service life.
  • Bonded design: The bushing is bonded for strength where loads are highest.
Specifications
Part Number W91380
Part Name Differential Cradle Bushing
Vehicle 2003-2005 Subaru Forester XS
Chassis Code SG
Bushing Color Black
Bushing Material Polyurethane
Color Black
Durometer 72
Installation Difficulty Difficult
Installation Time (hrs) 4
Kit Contents 2 Shell Bushings, 2 Tubes, Grease
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required Yes
Notes Rear mount - OD=55, L=41mm

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2003SubaruForesterAWDRear mount - OD=55, L=41mm
2004SubaruForesterAWDRear mount - OD=55, L=41mm
2005SubaruForesterAWDRear mount - OD=55, L=41mm
