Product Details

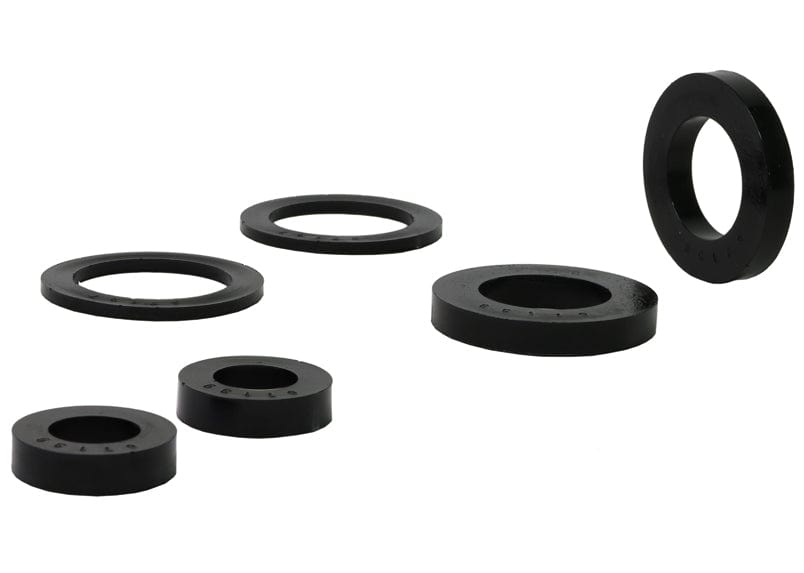

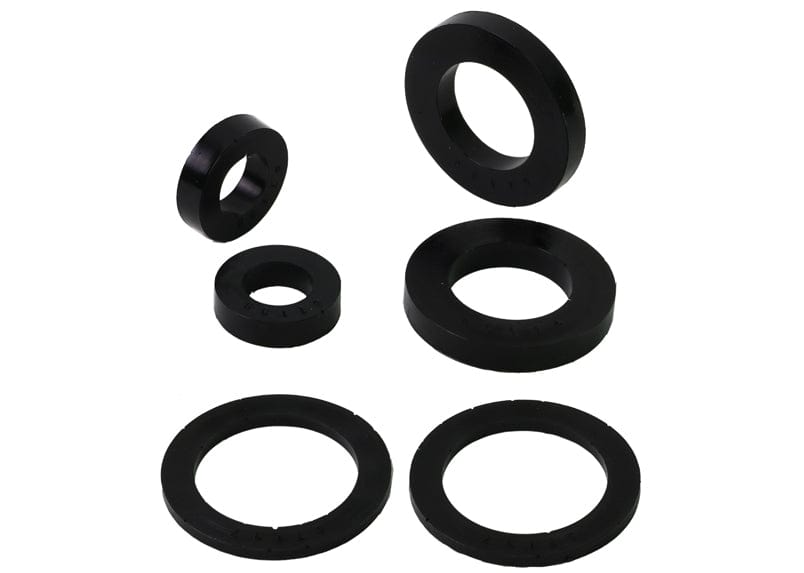

This Whiteline Rear Differential Mount Front Support Bushing fits the 2002-2004 Subaru Impreza WRX TS (GD/GG). Whiteline's note for this fit: Locks Diff Support To Body. In the box: 6 insert bushings. The part number is KSB751. It goes on the rear of the vehicle.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. The polyurethane used here deflects much less than the original rubber under the same load.

Whiteline rates the install as moderate and lists about 1.5 hours. No alignment is needed afterward. To go with it on the Impreza WRX TS, see Rear Sway Bar Link, 14mm Adjustable Front Camber Bolts, and Front Strut Tower Brace Quick Release Kit.

Features

  • Bonded design: The bushing is bonded for extra strength under heavy loads.
  • Self-lubricating: Grease reservoirs inside the bushing feed lubrication as it moves.
  • Install guide: Step-by-step installation instructions come with it.
  • Bushing compound: The elastomer formulation is chosen to shrug off oil, grease, ozone, and the elements.
Specifications
Part Number KSB751
Part Name Differential Mount Bushing
Vehicle 2002-2004 Subaru Impreza WRX TS
Drivetrain AWD
Chassis Code GD/GG
Color Black
Durometer 85
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 6 Insert Bushings
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Locks Diff Support To Body

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
2002SubaruWRXAWDLocks Diff Support To Body
2003SubaruWRXAWDLocks Diff Support To Body
2004SubaruWRXAWDLocks Diff Support To Body
