Product Details

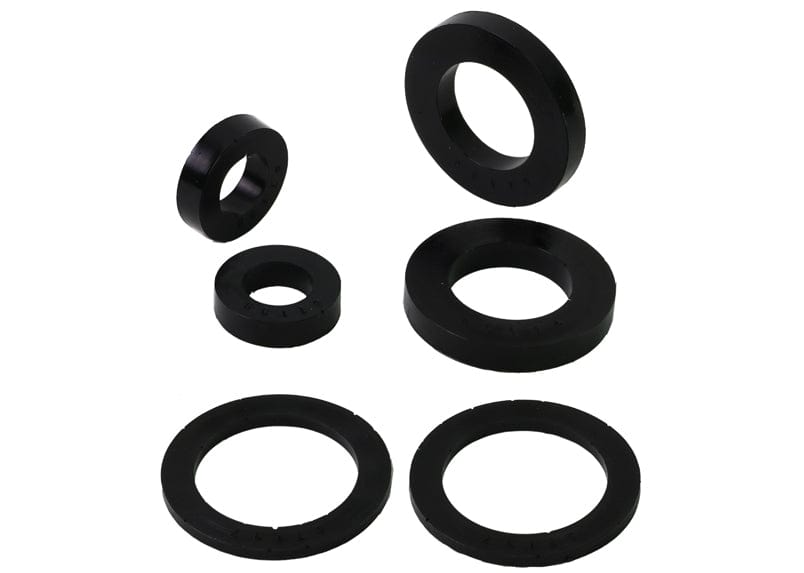

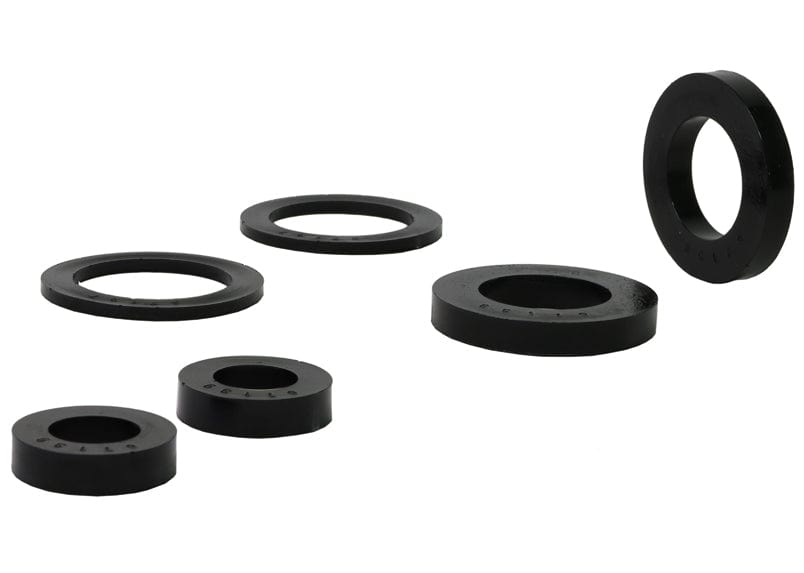

This Whiteline Rear Differential Mount Front Support Bushing fits the 1993-1995 Subaru Impreza WRX Base (GC/GF). The kit contains 6 insert bushings. The part number is KSB751. It goes on the rear of the vehicle. Chassis code: GC/GF. Application note: Locks Diff Support To Body.

Differential bushings take the torque reaction every time the car accelerates. When the rubber is worn or soft, the case shifts and the driveline jerks, and wheel hop becomes more likely. Stiffer bushings or inserts limit that movement. The polyurethane used here deflects much less than the original rubber under the same load.

Installation is rated moderate, with about 1.5 hours of work listed. No alignment is needed afterward. We also list Front Control Arm Lower Inner Rear Bushing, Rear Sway Bar Link, and Front and Rear Sway Bar Kit for the Impreza WRX Base.

Features

  • Install guide: Written install instructions are included with the part.
  • Self-lubricating: Built-in grease reservoirs provide continual lubrication and reduce friction.
  • Bonded design: A bonded design adds strength for high load applications.
  • Bushing compound: Oil, grease, ozone, and weather do not break down the synthetic elastomer used in the bushings.
Specifications
Part Number KSB751
Part Name Differential Mount Bushing
Vehicle 1993-1995 Subaru Impreza WRX Base
Drivetrain AWD
Chassis Code GC/GF
Color Black
Durometer 85
Grade Type Performance
Installation Difficulty Moderate
Installation Time (hrs) 1.5
Kit Contents 6 Insert Bushings
Material Polyurethane
Mounting Hardware Included No
Universal or Specific Fit Specific Fit
Vehicle Placement Rear
Wheel Alignment Required No
Notes Locks Diff Support To Body

Vehicle fitment

This product fits the vehicles listed below.

YearMakeModelDrivetrainNotes
1993SubaruWRXAWDLocks Diff Support To Body
1994SubaruWRXAWDLocks Diff Support To Body
1995SubaruWRXAWDLocks Diff Support To Body
